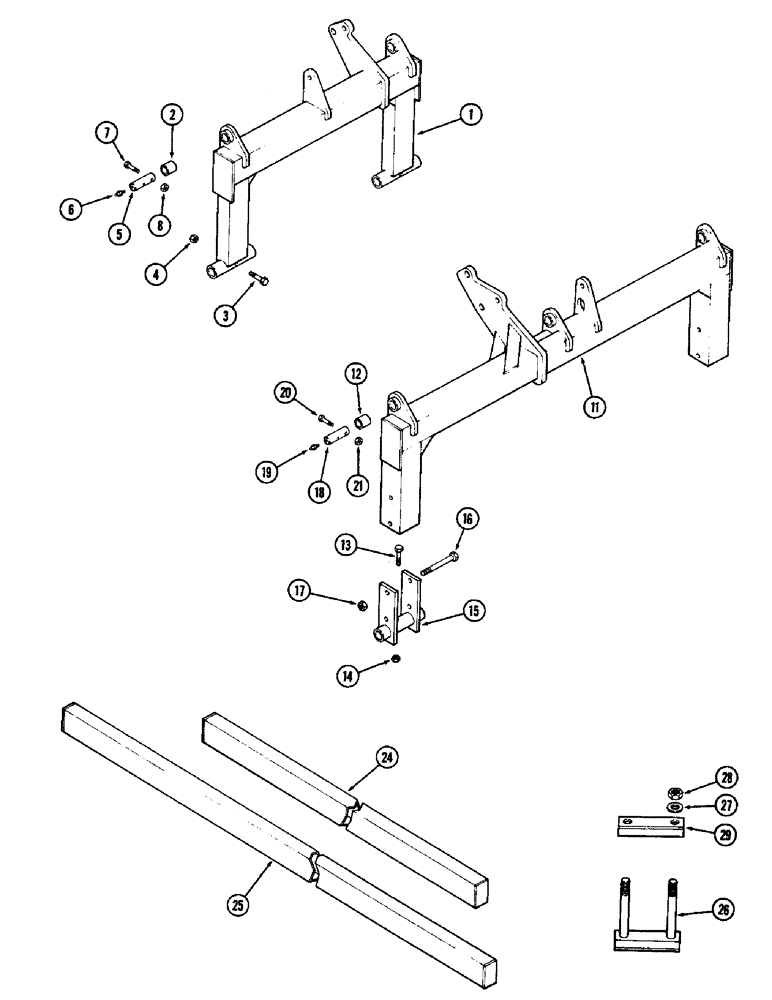

Запчасти Case IH G-SERIES (10) - ROCKSHAFTS

1

T53871

ROCKSHAFT

48 INCH (1219.2 MM)

1шт.

2

T51708

BUSHING

2шт.

3

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

4

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

2шт.

5

T51587

PIN

- retainer

2шт.

6

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

2шт.

7

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

8

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

2шт.

11

T53872

ROCKSHAFT

85 INCH (2159.0 MM)

1шт.

12

T51708

BUSHING

85 inch (2159.0 mm)

3шт.

13

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

85 inch (2159.0 mm) Hex, 3/8"-16 x 3", G5

4шт.

14

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex, 85 inch (2159.0 mm)

4шт.

15

T51632

SUPPORT - wheel, 85 inch (2159.0 mm)

2шт.

16

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4 x 7-1/2" NC hex (Grade 5), 85 inch (2159.0 mm)

4шт.

17

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex, 85 inch (2159.0 mm)

4шт.

18

T51587

PIN

- retainer, 85 inch (2159.0 mm)

3шт.

19

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16", 85 inch (2159.0 mm)

3шт.

20

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

85 inch (2159.0 mm) Hex, 3/8"-16 x 2 1/2", G5

3шт.

21

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex, 85 inch (2159.0 mm)

3шт.

24

T51690

AUXILIARY FRAME - short

1шт.

25

T51691

AUXILIARY FRAME - long

1шт.

26

T51584

CLAMP - gang frame, auxiliary frames

4шт.

27

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge, auxiliary frames

8шт.

28

129-113

NUT - 1-3/8" NC hex, auxiliary frames

8шт.

29

T51583

CLAMP - gang frame, auxiliary frames

4шт.
