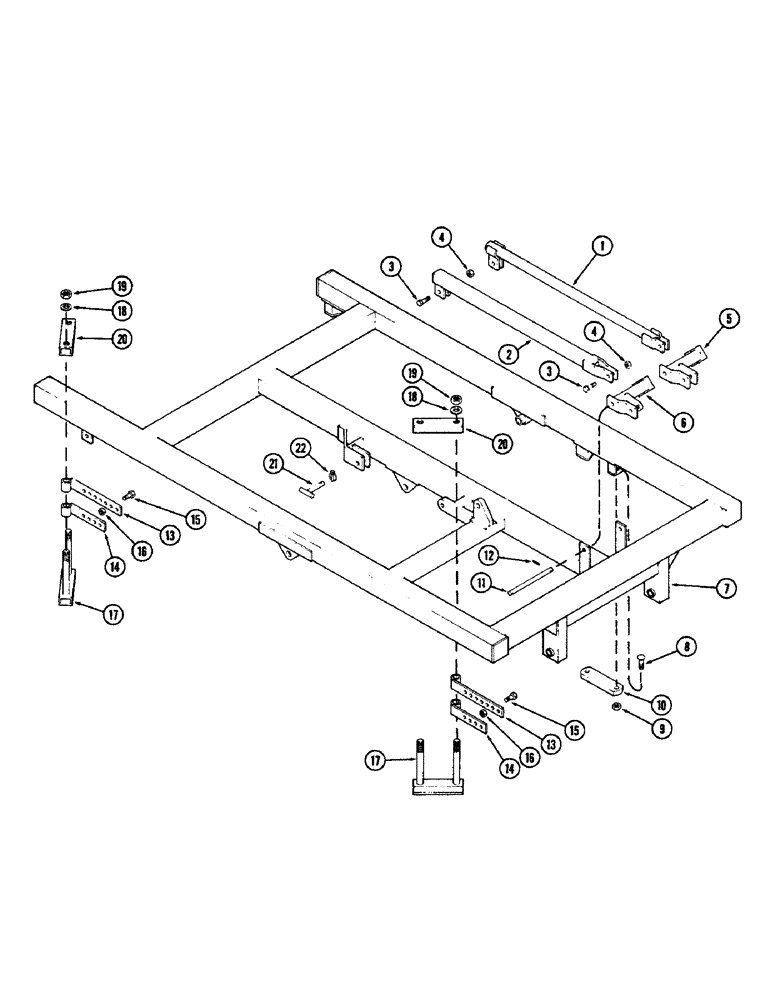

Запчасти Case IH G-SERIES (08) - MAIN FRAME, 85 INCH (2159.0 MM)

1

T51629

TOW BAR

ROD - tongue control

1шт.

2

T54000

ROD

- tongue control (T51629 can also be used)

1шт.

3

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5)

2шт.

4

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

5

T51627

TOW BAR

BRACKET - tongue control

1шт.

6

T53999

BRACKET

- tongue control (T51627 can also be used)

1шт.

7

T51630

FRAME - main

1шт.

8

111-776

BOLT,Short NK, 1" -8 x 3", G5

- 1 x 3" NC carriage (Grade 5)

4шт.

9

131-698

LOCK NUT,1"-8, GB

NUT - lock 1" NC hex

4шт.

10

T51585

PLATE - gang clamp

2шт.

11

T51628

PIN - pivot

1шт.

12

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

13

T51582

BRACKET - gang angle set

2шт.

14

T55856

BRACKET - gang angle set

2шт.

15

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

16

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

17

T51584

CLAMP - gang frame

2шт.

18

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge

4шт.

19

129-113

NUT - 1-3/8" NC hex

4шт.

20

T51583

CLAMP - gang frame

2шт.

21

T55871

PIN

- transport

1шт.

22

A30338

PIN

- klik

1шт.
