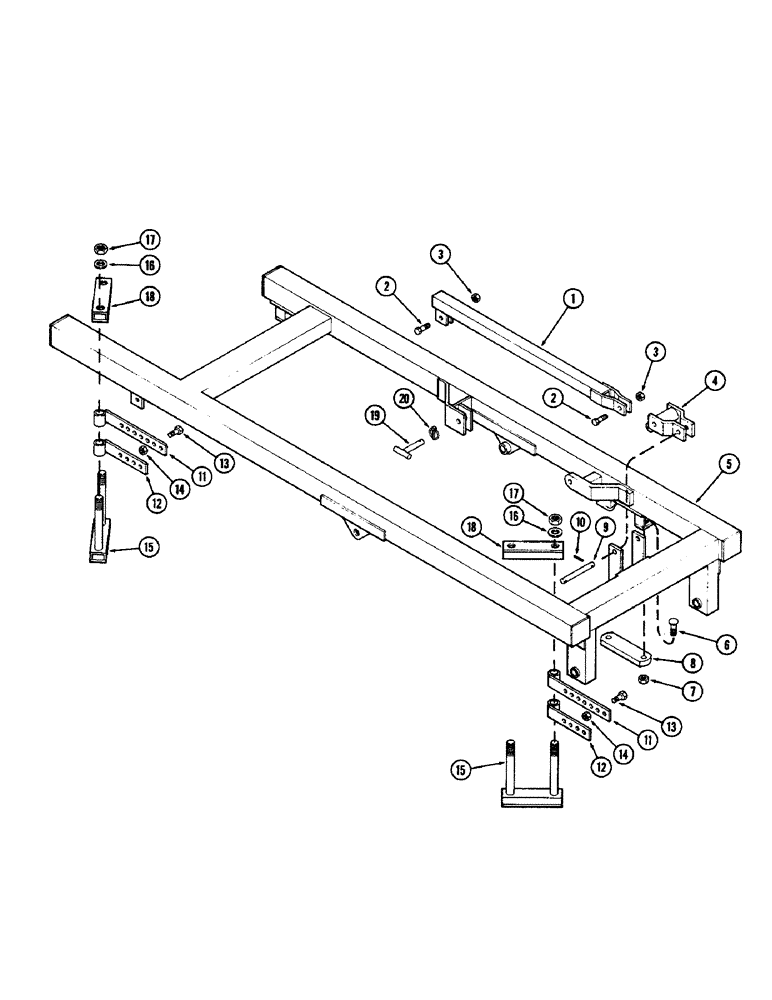

Запчасти Case IH G-SERIES (06) - MAIN FRAME, 48 INCH (1219.2 MM)

1

T54002

ROD

- tongue control

1шт.

2

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4 x 2-1/2" NC hex (Grade 5)

2шт.

3

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

4

T54001

BRACKET

- tongue control

1шт.

5

T51581

FRAME - main

1шт.

6

111-776

BOLT,Short NK, 1" -8 x 3", G5

- 1 x 3" NC carriage (Grade 5)

4шт.

7

131-698

LOCK NUT,1"-8, GB

NUT - lock 1" NC hex

4шт.

8

T51585

PLATE - gang clamp

2шт.

9

T51579

PIN - pivot

1шт.

10

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

11

T51582

BRACKET - gang angle set

2шт.

12

T55856

BRACKET - gang angle set

2шт.

13

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

14

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

15

T51584

CLAMP - gang frame

2шт.

16

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge

4шт.

17

129-113

NUT - 1-3/8" NC hex

4шт.

18

T51583

CLAMP - gang frame

2шт.

19

T55871

PIN

- transport

1шт.

20

A30338

PIN

- klik

1шт.
