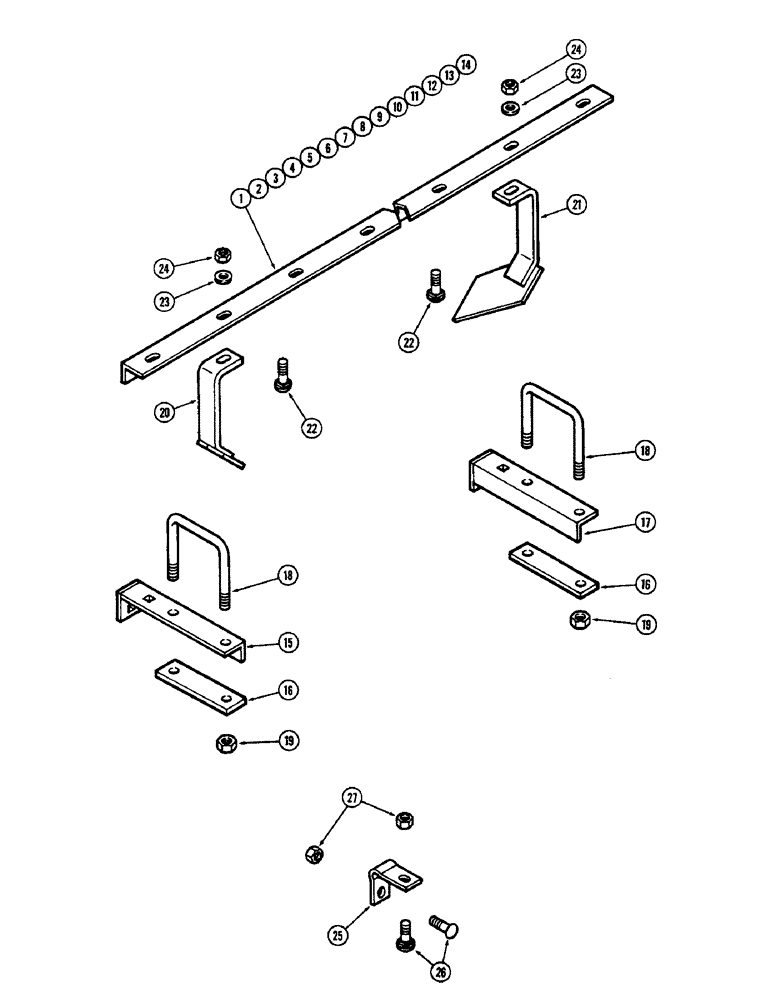

Запчасти Case IH G-SERIES (46) - SCRAPER BARS & SCRAPERS G119, 9 INCH (228.6 MM) FRONT AND 10-1/2 (266.7 MM) REAR SPACING

1

T52034

BAR

- scraper 5 blade 42" (1066.8 MM) (G119-104, 164, 172)

1шт.

2

NLS

NO LONGER SERVICED

- scraper 6 blade 51-1/4" (1301.8 MM) (G119-104, 117, 164, 172, 182)

1шт.

3

T52033

BAR

- scraper 7 blade 60-1/2" (1536.7 MM) (G119-117, 136, 154, 164, 204, 214)

1шт.

3

T52033

BAR

- scraper 7 blade 60-1/2" (1536.7 MM) (G119-126, 182, 196)

2шт.

4

T52037

BAR

- scraper 5 blade 47-1/2" (1206.5 MM) (G119-117, 126, 214)

1шт.

5

T52036

BAR

- scraper 6 blade 58-1/8" (1476.4 MM) (G119-117, 136, 145, 232)

1шт.

6

T52044

BAR

- scraper 7 blade 68-3/4" (1746.3 MM) (G119-126, 135, 154)

1шт.

7

T52041

BAR

- scraper 8 blade 69-3/4" (1771.7 MM) (G119-136, 172, 196, 214)

1шт.

7

T52041

BAR

- scraper 8 blade 69-3/4" (1771.7 MM) (G119-145, 204)

2шт.

8

T52045

BAR - scraper 8 blade 79-3/8" (2016.1 MM) (G119-145, 154, 172, 182, 196, 232)

1шт.

8

T52045

BAR - scraper 8 blade 79-3/8" (2016.1 MM) (G119-164, 214)

2шт.

9

T52042

ANGLE

BAR - scraper 10 blade 88-1/4" (2241.6 MM) (G119-154, 232)

1шт.

10

T52038

BAR

- scraper 9 blade 90" (2286.0 MM) (G119-172, 204, 232)

1шт.

11

T52046

BAR

- scraper 10 blade 100-5/8" (2555.9 MM) (G119-104, 182)

1шт.

12

T52047

BAR

- scraper 11 blade 111-1/4" (2825.8 MM) (G119-196, 204)

1шт.

13

T52035

BAR

- scraper 9 blade 79" (2006.6 MM) (G119-214, 232)

1шт.

14

T51620

BAR - scraper 7 blade 60-1/2" (1536.7 MM) (G119-232)

1шт.

15

T52031

MOUNTING PARTS

MOUNT - scraper bar front (G119-104)

4шт.

15

T52031

MOUNTING PARTS

MOUNT - scraper bar front (G119-117)

5шт.

15

T52031

MOUNTING PARTS

MOUNT - scraper bar front (G119-126, 136, 145)

6шт.

15

T52031

MOUNTING PARTS

MOUNT - scraper bar front (G119-154, 164, 172)

7шт.

15

T52031

MOUNTING PARTS

MOUNT - scraper bar front (G119-182)

8шт.

15

T52031

MOUNTING PARTS

MOUNT - scraper bar front (G119-196, 204, 214, 232)

9шт.

16

T51692

SPACER (G119-117, 232)

1шт.

16

T51692

SPACER (G119-126, 136, 145, 164, 182, 204)

3шт.

16

T51692

SPACER (G119-154, 196)

4шт.

16

T51692

SPACER (G119-172)

2шт.

16

T51692

SPACER (G119-214)

5шт.

17

T52032

MOUNTING PARTS

MOUNT - scraper bar rear (G119-104)

3шт.

17

T52032

MOUNTING PARTS

MOUNT - scraper bar rear (G119-117)

4шт.

17

T52032

MOUNTING PARTS

MOUNT - scraper bar rear (G119-126, 136, 145)

5шт.

17

T52032

MOUNTING PARTS

MOUNT - scraper bar rear (G119-154, 164, 172, 182, 196, 204)

6шт.

17

T52032

MOUNTING PARTS

MOUNT - scraper bar rear (G119-214, 232)

8шт.

18

T51593

BOLT

U-BOLT

1шт.

19

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per u bolt)

1шт.

20

T51596

SCRAPER

- front (One per disk blade)

1шт.

21

T51597

SCRAPER

- rear (One per disk blade)

1шт.

22

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5) (One per scraper)

1шт.

23

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge (One per scraper)

1шт.

24

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex (One per scraper)

1шт.

25

T51592

BRACKET

- scraper bar (G119-104)

7шт.

25

T51592

BRACKET

- scraper bar (G119-117)

9шт.

25

T51592

BRACKET

- scraper bar (G119-126, 136, 145)

11шт.

25

T51592

BRACKET

- scraper bar (G119-154, 164, 172)

13шт.

25

T51592

BRACKET

- scraper bar (G119-182)

14шт.

25

T51592

BRACKET

- scraper bar (G119-196, 204)

15шт.

25

T51592

BRACKET

- scraper bar (G119-214, 232)

17шт.

26

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5) (Two per scraper bar bracket)

1шт.

27

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex (Two per scraper bar bracket)

1шт.
