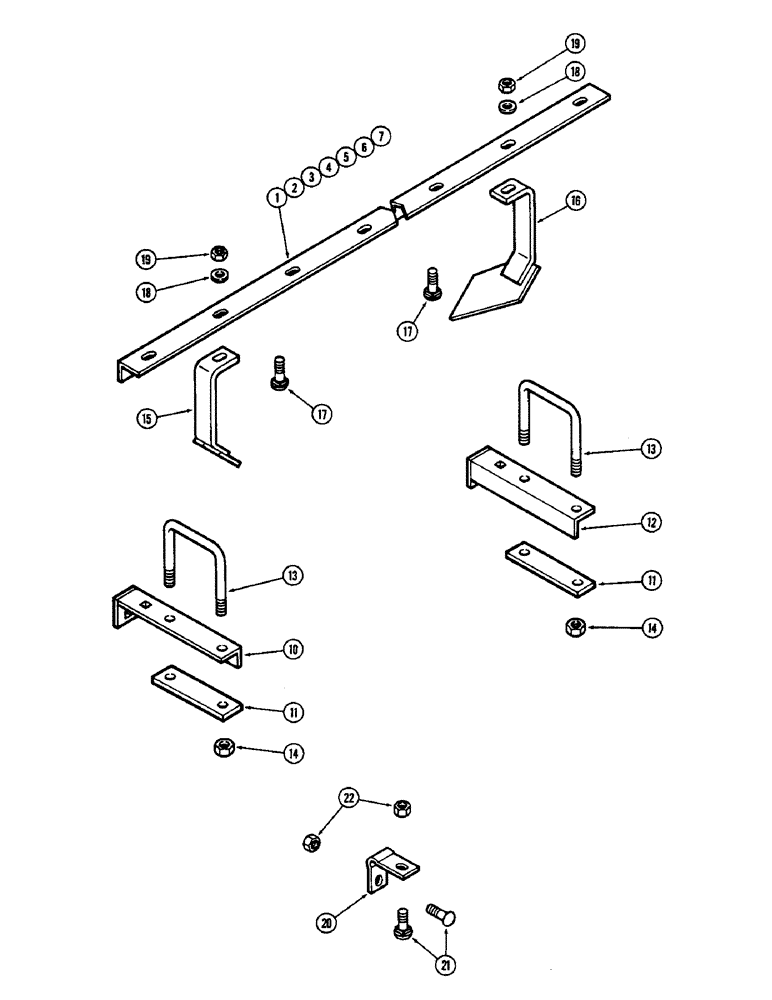

Запчасти Case IH G-SERIES (44) - SCRAPER BARS AND SCRAPERS G110, 10-1/2 INCH (266.7 MM) SPACING
№
Артикул
Название
Примечание
Количество
1
T52046
BAR
- scraper 10 blade 100-5/8" (2555.9 MM) (G110-104, 194)
2шт.
1
T52046
BAR
- scraper 10 blade 100-5/8" (2555.9 MM) (G110-154, 184)
1шт.
2
T52037
BAR
- scraper 5 blade 47-1/2" (1206.5 MM) (G110-114, 124)
2шт.
2
T52037
BAR
- scraper 5 blade 47-1/2" (1206.5 MM) (G110-154, 174, 214)
1шт.
3
T52036
BAR
- scraper 6 blade 58-1/8" (1476.4 MM) (G110-114, 134, 144, 174, 234)
2шт.
3
T52036
BAR
- scraper 6 blade 58-1/8" (1476.4 MM) (G110-184)
3шт.
3
T52036
BAR
- scraper 6 blade 58-1/8" (1476.4 MM) (G110-204, 214)
1шт.
4
T52044
BAR
- scraper 7 blade 68-3/4" (1746.3 MM) (G110-124, 134, 204)
2шт.
4
T52044
BAR
- scraper 7 blade 68-3/4" (1746.3 MM) (G110-154, 164, 194, 214)
1шт.
5
T52045
BAR - scraper 8 blade 79-3/8" (2016.1 MM) (G110-144, 164, 234)
2шт.
5
T52045
BAR - scraper 8 blade 79-3/8" (2016.1 MM) (G110-154, 174, 184, 194)
1шт.
5
T52045
BAR - scraper 8 blade 79-3/8" (2016.1 MM) (G110-214)
3шт.
6
T52038
BAR
- scraper 9 blade 90" (2286.0 MM) (G110-164, 174, 204)
1шт.
6
T52038
BAR
- scraper 9 blade 90" (2286.0 MM) (G110-234)
2шт.
7
T52047
BAR
- scraper 11 blade 111-1/4" (2825.8 MM) (G110-194, 204)
1шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G110-104)
3шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G110-114)
4шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G110-124, 134, 144, 154)
5шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G110-164, 174, 184)
6шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G110-194)
7шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G110-204, 214, 234)
8шт.
11
T51692
SPACER (G110-124, 134, 144, 154, 194, 204)
2шт.
11
T51692
SPACER (G110-164)
3шт.
11
T51692
SPACER (G110-174, 184)
1шт.
11
T51692
SPACER (G110-214)
4шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G110-104)
3шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G110-114)
4шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G110-124, 134, 144)
5шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G110-154, 164, 174, 184, 194, 204)
6шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G110-124, 234)
8шт.
13
T51593
BOLT
U BOLT
1шт.
14
131-1131
LOCK NUT,3/4"-10, GA
NUT - lock 3/4" NC hex (Two per u bolt)
1шт.
15
T51596
SCRAPER
- front (One per disk blade)
1шт.
16
T51597
SCRAPER
- rear (One per disk blade)
1шт.
17
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5) (One per scraper)
1шт.
18
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge (One per scraper)
1шт.
19
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex (One per scraper)
1шт.
20
T51592
BRACKET
- scraper bar (G110-104)
6шт.
20
T51592
BRACKET
- scraper bar (G110-114)
8шт.
20
T51592
BRACKET
- scraper bar (G110-124, 134, 144)
10шт.
20
T51592
BRACKET
- scraper bar (G110-154)
11шт.
20
T51592
BRACKET
- scraper bar (G110-164, 174, 184)
12шт.
20
T51592
BRACKET
- scraper bar (G110-194)
13шт.
20
T51592
BRACKET
- scraper bar (G110-204)
14шт.
20
T51592
BRACKET
- scraper bar (G110-214, 234)
16шт.
21
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5) (Two per scraper bar bracket)
1шт.
22
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex (Two per scraper bar bracket)
1шт.
Выбрано товаров: 47
