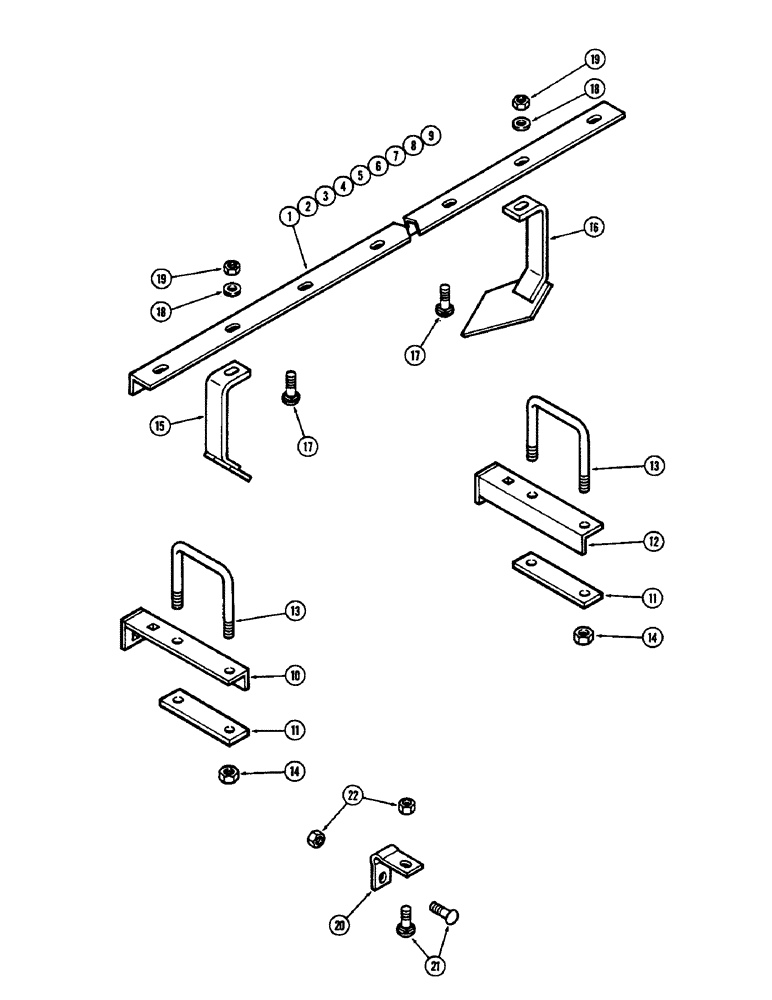

Запчасти Case IH G-SERIES (42) - SCRAPER BARS AND SCRAPERS G109, 9 INCH (228.6 MM) SPACING

15

T51596

SCRAPER

- front (One per disk blade)

1шт.

16

T51597

SCRAPER

- rear (One per disk blade)

1шт.

17

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5) (One per scraper)

1шт.

18

195-108

WASHER,5/8"

- 1-3/4 x 11/16" x 10 gauge (One per scraper)

1шт.

19

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex (One per scraper)

1шт.

20

T51592

BRACKET

- scraper bar (G109-103, 112)

8шт.

20

T51592

BRACKET

- scraper bar (G109-120)

10шт.

20

T51592

BRACKET

- scraper bar (G109-126, 138, 146)

12шт.

20

T51592

BRACKET

- scraper bar (G109-154, 163, 170)

13шт.

20

T51592

BRACKET

- scraper bar (G109-180)

14шт.

20

T51592

BRACKET

- scraper bar (G109-189, 198, 206, 214)

15шт.

20

T51592

BRACKET

- scraper bar (G109-232)

18шт.

21

111-617

BOLT,Short NK, 5/8"-11 x 1 3/4", G5

- 5/8 x 1-3/4" NC carriage (Grade 5) (Two per scraper bar bracket)

1шт.

22

230-41110

LOCK NUT,5/8"-11, GA

NUT - lock 5/8" NC hex (Two per scraper bar bracket)

1шт.
