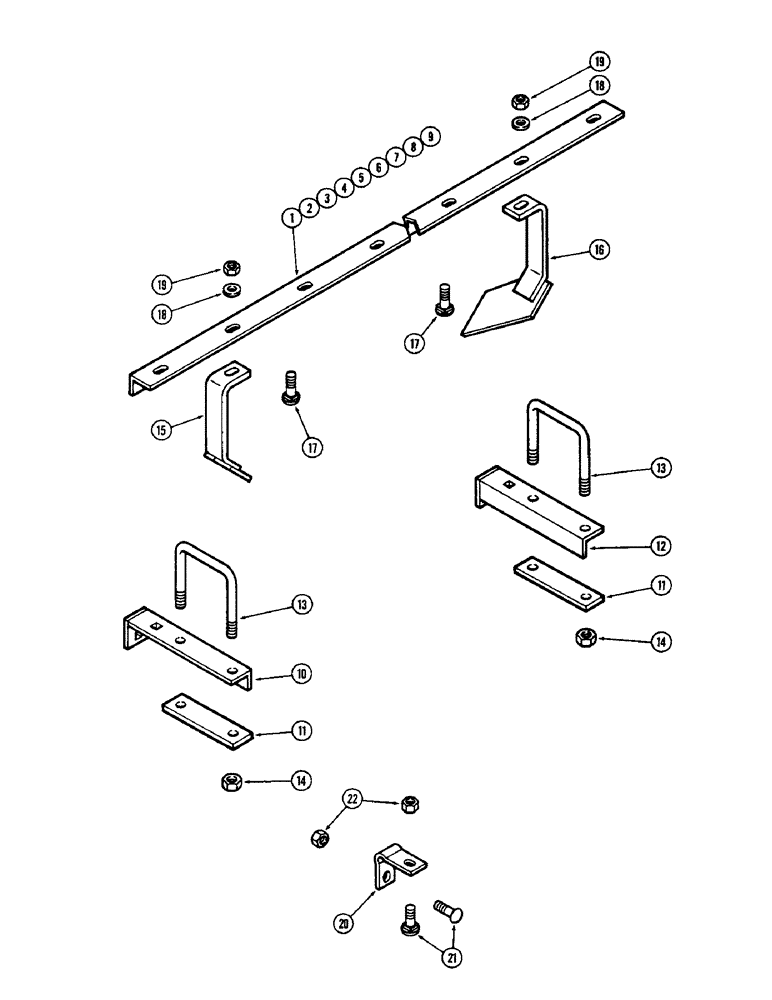

Запчасти Case IH G-SERIES (40) - SCRAPER BARS AND SCRAPERS G109, 9 INCH (228.6 MM) SPACING
№
Артикул
Название
Примечание
Количество
1
T52034
BAR
- scraper 5 blade 42" (1066.8 MM) (G109-103)
2шт.
1
T52034
BAR
- scraper 5 blade 42" (1066.8 MM) (G109-163, 170)
1шт.
2
T52043
- scraper 6 blade 51-1/4" (1301.8 MM) (G109-103, 117)
2шт.
2
NLS
NO LONGER SERVICED
- scraper 6 blade 51-1/4" (1301.8 MM) (G109-112)
4шт.
2
T52043
- scraper 6 blade 51-1/4" (1301.8 MM) (G109-163, 170, 180)
1шт.
3
T52033
BAR
- scraper 7 blade 60-1/2" (1536.7 MM) (G109-120, 138, 154, 180, 198)
2шт.
3
T52033
BAR
- scraper 7 blade 60-1/2" (1536.7 MM) (G109-126)
4шт.
3
T52033
BAR
- scraper 7 blade 60-1/2" (1536.7 MM) (G109-163, 206, 214, 232)
1шт.
3
T52033
BAR
- scraper 7 blade 60-1/2" (1636.7 MM) (G109-189)
3шт.
4
T52041
BAR
- scraper 8 blade 69-3/4" (1771.7 MM) (G109-138, 170, 206)
2шт.
4
T52041
BAR
- scraper 8 blade 69-3/4" (1771.7 MM) (G109-146)
4шт.
4
T52041
BAR
- scraper 8 blade 69-3/4" (1771.7 MM) (G109-198, 214)
1шт.
5
T52042
ANGLE
BAR - scraper 10 blade 88-1/4" (2241.6 MM) (G109-154, 180, 232)
2шт.
5
T52042
ANGLE
BAR - scraper 10 blade 88-1/4" (2241.6 MM) (G109-163, 189)
1шт.
6
T52039
BAR
- scraper 11 blade 97-1/2" (2476.5 MM) (G109-170, 189, 206)
1шт.
6
T52039
BAR
- scraper 11 blade 97-1/2" (2476.5 MM) (G109-198)
2шт.
7
T52040
BAR
- scraper 12 blade 106-3/4" (2711.5 MM) (G109-206)
1шт.
7
T52040
BAR
- scraper 12 blade 106-3/4" (2711.5 MM) (G109-214)
2шт.
8
T52035
BAR
- scraper 9 blade 79" (2006.6 MM) (G109-214)
1шт.
8
T52035
BAR
- scraper 9 blade 79" (2006.6 MM) (G109-232)
2шт.
9
T51620
BAR - scraper 7 blade 60-1/2" (1536.7 MM) (G109-232)
1шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G109-103, 112)
4шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G109-120)
5шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G109-126, 138, 146)
6шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G109-154, 163, 170)
7шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G109-180)
8шт.
10
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G109-189, 198, 206, 214, 232)
9шт.
11
T51692
SPACER (G109-120, 163, 170, 180, 232)
2шт.
11
T51692
SPACER (G109-126, 138, 146)
4шт.
11
T51692
SPACER (G109-154, 189, 198, 206, 214)
3шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G109-103, 112)
4шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G109-120)
5шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G109-126, 138, 146, 154, 163, 170, 180, 189, 198, 206, 214)
6шт.
12
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G109-232)
9шт.
13
T51593
BOLT
U BOLT
1шт.
14
131-1131
LOCK NUT,3/4"-10, GA
NUT - lock 3/4" NC hex (Two per u bolt)
1шт.
Выбрано товаров: 36
