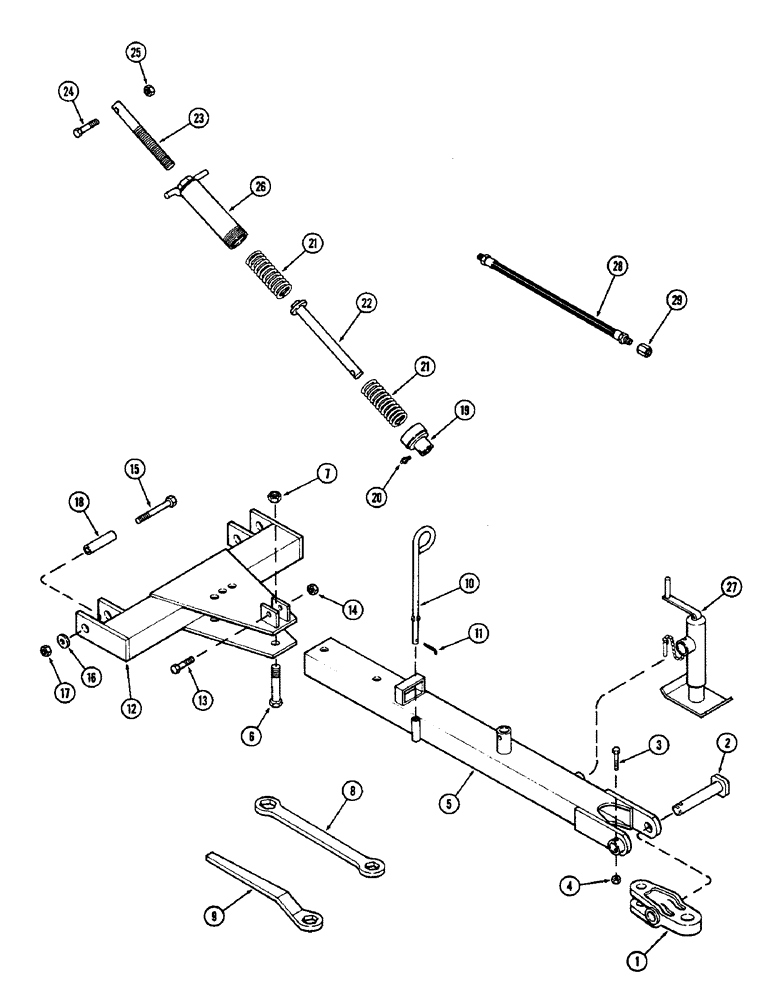

Запчасти Case IH G-SERIES (04) - HITCH, SERIAL NUMBER 1607526 AND AFTER

1

T54658

CLEVIS

- hitch

1шт.

2

T55130

PIN

- clevis

1шт.

3

113241

BOLT - 3/8 x 3" NC hex (Grade 5)

1шт.

4

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock 3/8" NC hex

1шт.

5

T55134

TOW BAR

TONGUE - pull

1шт.

6

13-20104

BOLT,Hex, 1-1/4" - 7 x 6-1/2", Gr 5

- 1-1/4 x 6-1/2" NC hex (Grade 5)

2шт.

7

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.

8

T54660

WRENCH - angle set bolts

1шт.

9

T54659

WRENCH - gang bolt nuts

1шт.

10

T53995

HOLDER - hose

1шт.

11

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

12

T51568

TONGUE - cross

1шт.

13

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

14

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

15

113-776

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- 3/4 x 7" NC hex (Grade 5)

2шт.

16

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

2шт.

17

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

18

T51569

BUSHING

2шт.

19

T51572

CAP

1шт.

20

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

1шт.

21

T51576

SPRING

2шт.

22

T51573

ROD

- piston

1шт.

23

T51574

ROD

- threaded

1шт.

24

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

25

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

26

T51571

HOUSING

- spring

1шт.

27

T56247

JACK

1шт.

28

A135109

HYDRAULIC HOSE,1/2" ID x 31" L, SAE 100R1

0.50" ID x , SAE 100R1 - Extension 31.00"

2шт.

29

A135110

ADAPTER

- hose

2шт.
