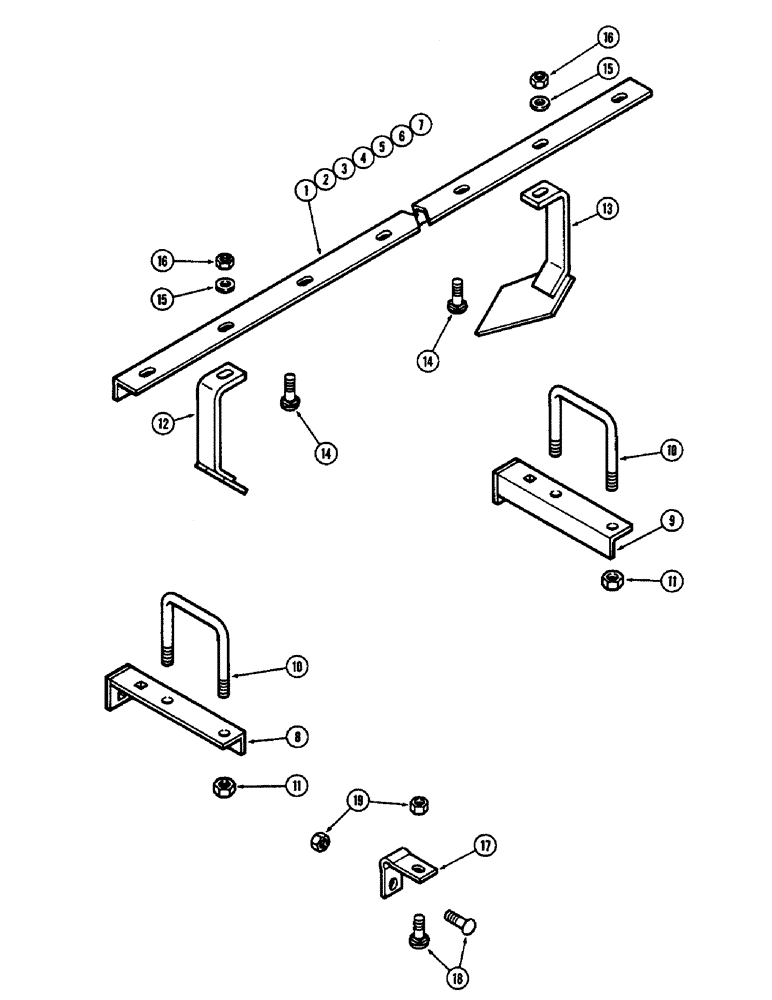

Запчасти Case IH G-SERIES (38) - SCRAPER BARS AND SCRAPERS, G59 , 9 INCH (228.6 MM) SPACING
№
Артикул
Название
Примечание
Количество
1
T52034
BAR
- scraper 5 blade 42" (1066.8 MM) (G59-100, 109)
2шт.
2
NLS
NO LONGER SERVICED
- scraper 6 blade 51-1/4" (1301.8 MM) (G59-100, 118, 127)
2шт.
3
T52033
BAR
- scraper 7 blade 60-1/2" (1536.7 MM) (G59-109, 118, 135, 144, 197, 205, 214, 224, 250)
2шт.
4
T52041
BAR
- scraper 8 blade 69-3/4" (1771.7 MM) (G59-127, 135, 214, 232)
2шт.
4
T52041
BAR
- scraper 8 blade 69-3/4" (1771.7 MM) (G59-161, 197)
1шт.
4
T52041
BAR
- scraper 8 blade 69-3/4" (1771.7 MM) (G59-205)
4шт.
5
T52035
BAR
- scraper 9 blade 79" (2006.6 MM) (G59-144, 161, 170, 214)
2шт.
5
T52035
BAR
- scraper 9 blade 79" (2006.6 MM) (G59-179)
1шт.
5
T52035
BAR
- scraper 9 blade 79" (2006.6 MM) (G59-223, 232)
4шт.
6
T52042
ANGLE
BAR - scraper 10 blade 88-1/4" (2241.6 MM) (G59-161)
1шт.
6
T52042
ANGLE
BAR - scraper 10 blade 88-1/4" (2241.6 MM) (G59-170, 179, 188, 250)
2шт.
7
T52039
BAR
- scraper 11 blade 97-1/2" (2476.5 MM) (G59-179)
1шт.
7
T52039
BAR
- scraper 11 blade 97-1/2" (2476.5 MM) (G59-188, 197, 250)
2шт.
8
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G59-100)
4шт.
8
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G59-109, 118, 127)
5шт.
8
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G59-135, 144, 161, 170, 179, 188)
6шт.
8
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G59-197, 205, 214, 223, 232)
9шт.
8
T52031
MOUNTING PARTS
MOUNT - scraper bar front (G59-250)
10шт.
9
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G59-100)
4шт.
9
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G59-109, 118, 127)
5шт.
9
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G59-135, 144, 161, 170, 179, 188, 197)
6шт.
9
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G59-205, 214, 223, 232)
9шт.
9
T52032
MOUNTING PARTS
MOUNT - scraper bar rear (G59-250)
10шт.
10
T51593
BOLT
U BOLT
1шт.
11
131-1131
LOCK NUT,3/4"-10, GA
NUT - lock 3/4" NC hex (Two per u bolt)
1шт.
12
T51596
SCRAPER
- front (One per disk blade)
1шт.
13
T51597
SCRAPER
- rear (One per disk blade)
1шт.
14
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5) (One per scraper)
1шт.
15
195-108
WASHER,5/8"
- 1-3/4 x 11/16" x 10 gauge (One per scraper)
1шт.
16
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex (One per scraper)
1шт.
17
T51592
BRACKET
- scraper bar (G59-100)
8шт.
17
T51592
BRACKET
- scraper bar (G59-109, 118, 127)
10шт.
17
T51592
BRACKET
- scraper bar (G59-135, 144, 161, 170, 179, 188)
12шт.
17
T51592
BRACKET
- scraper bar (G59-197)
15шт.
17
T51592
BRACKET
- scraper bar (G59-205, 214, 223, 232)
18шт.
17
T51592
BRACKET
- scraper bar (G59-250)
20шт.
18
111-617
BOLT,Short NK, 5/8"-11 x 1 3/4", G5
- 5/8 x 1-3/4" NC carriage (Grade 5) (Two per scraper bar bracket)
1шт.
19
230-41110
LOCK NUT,5/8"-11, GA
NUT - lock 5/8" NC hex (Two per scraper bar bracket)
1шт.
Выбрано товаров: 38
