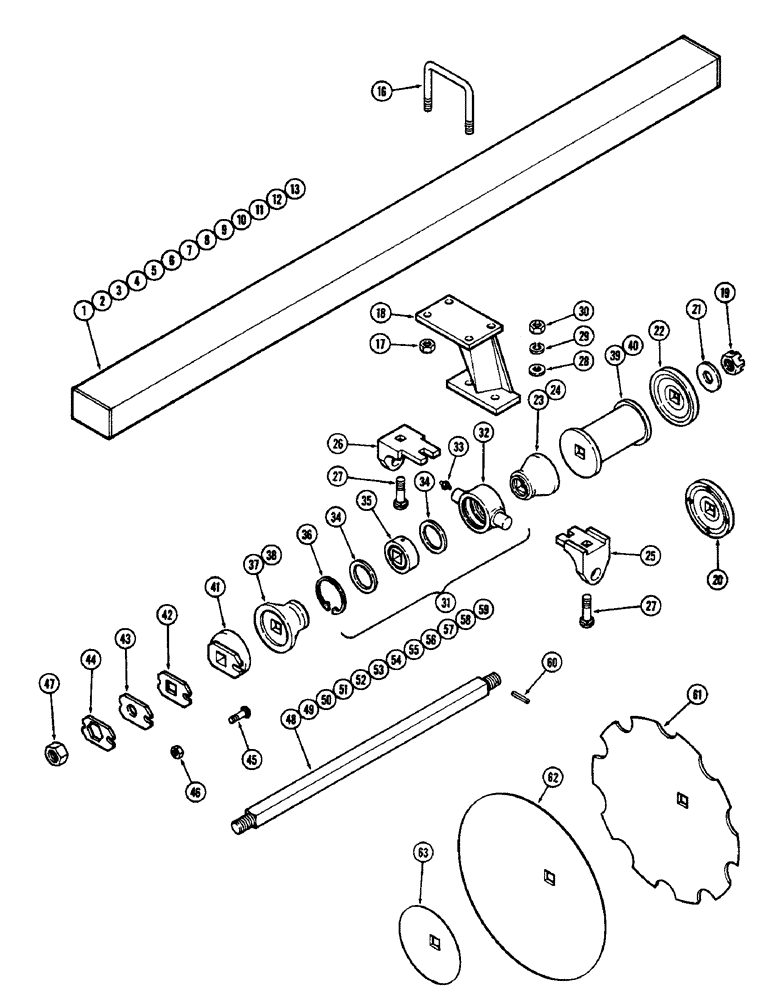

Запчасти Case IH G-SERIES (36) - GANGS, G119, 9 INCH (228.6 MM) FRONT AND 10-1/2 INCH (266.7 MM) REAR SPACING

43

T54646

PLATE

- bearing (G119-104)

3шт.

43

T54646

PLATE

- bearing (G119-117, 126, 136, 145)

4шт.

43

T54646

PLATE

- bearing (G119-154, 164, 172, 182, 196, 204)

5шт.

43

T54646

PLATE

- bearing (G119-214, 232)

6шт.

44

T55051

PLATE

- lock (G119-104)

3шт.

44

T55051

PLATE

- lock (G119-117, 126, 136, 145)

4шт.

44

T55051

PLATE

- lock (G119-154, 164, 172, 182, 196, 204)

5шт.

44

T55051

PLATE

- lock (G119-214, 232)

6шт.

45

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5) (One per lock plate)

1шт.

46

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex (One per lock plate)

1шт.

47

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G119-104)

3шт.

47

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G119-117, 126, 136, 145)

4шт.

47

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G119-154, 164, 172, 182, 196, 204)

5шт.

47

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G119-214, 232)

6шт.

48

T51598

BOLT

- gang 5 blade 42-7/8" (1089.0 MM) (G119-104, 164)

1шт.

48

T51598

BOLT

- gang 5 blade 42-7/8" (1089.0) (G119-154)

2шт.

49

T51599

BOLT

- gang 6 blade 52-1/8" (1324.0 MM) (G119-104, 117, 164, 172, 182)

1шт.

50

T51678

BOLT

BOLT - gang 10 blade 103-1/4" (2622.6 MM) (G119-104, 182)

1шт.

51

T51621

BOLT

- gang 7 blade 61-3/8" (1558.9 MM) (G119-117, 136, 154, 164, 172, 204, 214, 232)

1шт.

51

T51621

BOLT

- gang 7 blade 61-3/8" (1558.9 MM) (G119-126, 182, 196)

2шт.

52

T51667

BOLT

- gang 5 blade 49-1/2" (1257.3 MM) (G119-117, 126, 214)

1шт.

53

T51672

BOLT

- gang 6 blade 60-1/4" (1530.4 MM) (G119-117, 136, 145, 232)

1шт.

54

T51625

BOLT

- gang 7 blade 70-5/8" (1793.9 MM) (G119-126, 154, 172, 196)

1шт.

54

T51625

BOLT

- gang 7 blade 70-5/8" (1793.9 MM) (G119-136, 145, 204)

2шт.

54

T51625

BOLT

- gang 8 blade 70-5/8" (1793.9 MM) (G119-214)

1шт.

55

T51677

BOLT

- gang 8 blade 81-3/4" (2076.5 MM) (G119-145, 154, 172, 182, 196, 232)

1шт.

55

T51677

BOLT

- gang 8 blade 81-3/4" (2076.5 MM) (G119-164, 214)

2шт.

56

T51680

BOLT

BOLT - gang 9 blade 92-1/2" (2349.5 MM) (G119-172, 204, 232)

1шт.

57

T51683

BOLT - gang 11 blade 114" (2895.6 MM) (G119-196, 204)

1шт.

58

T51638

BOLT

BOLT - gang 9 blade 79-7/8" (2028.8 MM) (G119-214, 232)

1шт.

59

T51639

BOLT

- gang 10 blade 89-1/8" (2263.8 MM) (G119-232)

1шт.

60

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (1 per gang bolt) 5/16" x 2 1/4", Slotted

1шт.

61

T55910

BLADE

- disk 24" (609.6 MM) x 7 gauge notched

1шт.

61

T55912

PLOW DISC

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) Notched

1шт.

61

T51695

DISC

BLADE - disk 20" (508.0 MM) x 7 gauge notched

1шт.

61

T55908

BLADE

- disk 22" (558.8 MM) x 7 gauge notched

3шт.

62

T55909

BLADE

- disk 24" (609.6 MM) x 7 gauge solid

1шт.

62

T55911

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) Solid

1шт.

62

T55913

BLADE

- disk 26 x 1/4" (660.4 x 6.4 MM) Solid

1шт.

62

T51603

DISK HARROW

BLADE - disk 20" (508.0 MM) x 7 gauge solid

1шт.

62

T55907

DISK HARROW

BLADE - disk 22" (558.8 MM) x 7 gauge solid

3шт.

63

T55920

PLOW DISC

BLADE - disk 10" (254.0 MM) x 11 gauge solid

1шт.
