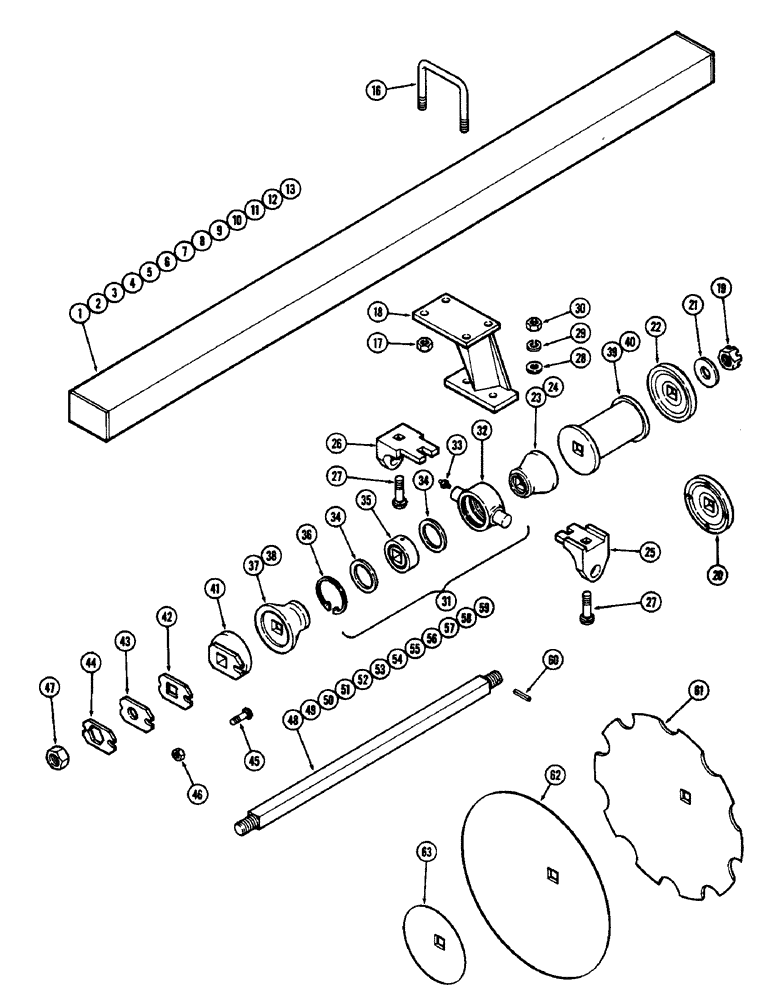

Запчасти Case IH G-SERIES (34) - GANGS, G119, 9 INCH (228.6 MM) FRONT AND 10-1/2 INCH (266.7 MM) REAR SPACING

26

T51658

HOUSING

SUPPORT - housing rear (G119-104)

7шт.

26

T51658

HOUSING

SUPPORT - housing rear (G119-117, 126, 136, 145)

8шт.

26

T51658

HOUSING

SUPPORT - housing rear (G119-154, 164)

10шт.

26

T51658

HOUSING

SUPPORT - housing rear (G119-172, 182, 196)

11шт.

26

T51658

HOUSING

SUPPORT - housing rear (G119-204, 214)

12шт.

26

T51658

HOUSING

SUPPORT - housing rear (G119-232)

16шт.

27

111-709

CARRIAGE BOLT,Short NK, 3/4"-10 x 3", G5

BOLT - 3/4 x 3" NF carraige (Grade 5) (One per housing support)

1шт.

28

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge (One per housing support)

1шт.

29

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (One per housing support) 3/4"

1шт.

30

129-128

NUT,3/4"-16, G5

- 3/4" NF hex (One per housing support)

1шт.

31

T63252

BALL BEARING,39.01mm ID x 101.6mm OD x 35.33mm W

HOUSING AND BEARING ASSEMBLY (One per bearing riser)

1шт.

32

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63252)

1шт.

33

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

34

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

35

T51653

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING

1шт.

36

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

37

T55133

BELL HOUSING

END BELL - large front (G119-104, 117, 126, 136, 145)

4шт.

37

T55133

BELL HOUSING

END BELL - large front (G119-154, 164, 172, 182, 196, 204, 214)

6шт.

37

T55133

BELL HOUSING

END BELL - large front (G119-232)

8шт.

38

T51669

BELL HOUSING

END BELL - large rear (G119-104)

3шт.

38

T51669

BELL HOUSING

END BELL - large rear (G119-117, 126, 136, 145, 154, 164)

4шт.

38

T51669

BELL HOUSING

END BELL - large rear (G119-172, 182, 196)

5шт.

38

T51669

BELL HOUSING

END BELL - large rear (G119-204, 214)

6шт.

38

T51669

BELL HOUSING

END BELL - large rear (G119-232)

8шт.

39

T51655

CASTING

SPOOL - front (G119-104)

5шт.

39

T51655

CASTING

SPOOL - front (G119-117)

7шт.

39

T51655

CASTING

SPOOL - front (G119-126, 154)

8шт.

39

T51655

CASTING

SPOOL - front (G119-136, 164)

9шт.

39

T51655

CASTING

SPOOL - front (G119-145, 172)

10шт.

39

T51655

CASTING

SPOOL - front (G119-182)

11шт.

39

T51655

CASTING

SPOOL - front (G119-196)

13шт.

39

T51655

CASTING

SPOOL - front (G119-204)

14шт.

39

T51655

CASTING

SPOOL - front (G119-214, 232)

15шт.

40

T51670

SPOOL

- rear (G119-104, 126)

6шт.

40

T51670

SPOOL

- rear (G119-117)

5шт.

40

T51670

SPOOL

- rear (G119-136)

7шт.

40

T51670

SPOOL

- rear (G119-145)

8шт.

40

T51670

SPOOL

- rear (G119-154)

9шт.

40

T51670

SPOOL

- rear (G119-164, 172)

10шт.

40

T51670

SPOOL

- rear (G119-182)

11шт.

40

T51670

SPOOL

- rear (G119-196, 204, 214, 232)

12шт.

41

T54657

WASHER

- end (G119-104)

3шт.

41

T54657

WASHER

- end (G119-117, 126, 136, 145)

4шт.

41

T54657

WASHER

- end (G119-154, 164, 172, 182, 196, 204)

5шт.

41

T54657

WASHER

- end (G119-214, 232)

6шт.

42

T54647

PLATE

- spacer

1шт.
