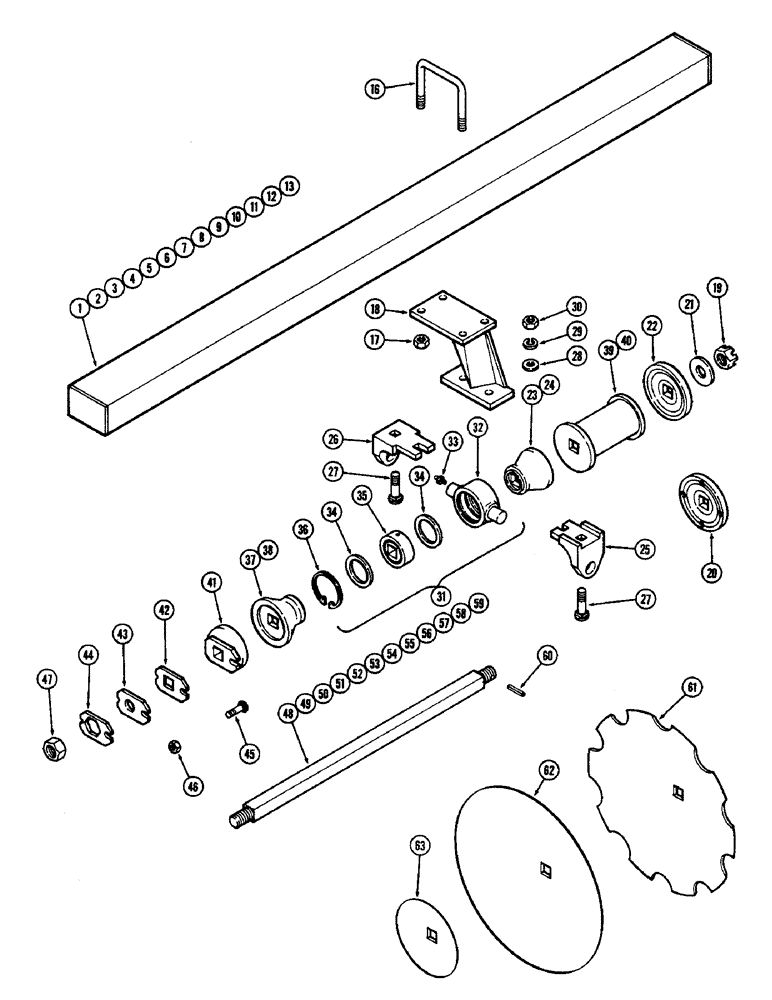

Запчасти Case IH G-SERIES (32) - GANGS, G119, 9 INCH (228.6 MM) FRONT AND 10-1/2 INCH (266.7 MM) REAR SPACING

1

T51589

FRAME - gang (G119-104) 102" (2590.8 MM)

2шт.

2

T51619

FRAME - gang (G119-117) 117" (2971.8 MM)

2шт.

3

T51622

FRAME - gang (G119-126) 126" (3200.4 MM)

2шт.

4

T51623

FRAME - gang (G119-136) 135" (3429.0 MM)

2шт.

5

T51626

FRAME - gang (G119-145) 144" (3657.6 MM)

2шт.

6

T51659

FRAME - gang (G119-154) 155" (3937.0 MM)

2шт.

7

T51660

FRAME - gang (G119-164) 165" (4191.0 MM)

2шт.

8

T51661

FRAME - gang (G119-172) 175" (4445.0 MM)

2шт.

9

T51681

FRAME - gang (G119-182) 187" (4749.8 MM)

2шт.

10

T51645

FRAME - gang (G119-196) 200" (5080.0 MM)

2шт.

11

T51646

FRAME - gang (G119-204) 209" (5308.6 MM)

2шт.

12

T51647

FRAME - gang (G119-214) 219" (5562.6 MM)

2шт.

13

T51649

FRAME - gang (G119-232) 238" (6045.2 MM)

2шт.

16

T51593

BOLT

U BOLT (Two per bearing riser)

1шт.

17

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per u bolt)

1шт.

18

T51656

RISER

- bearing (G119-104)

7шт.

18

T51656

RISER

- bearing (G119-117, 126, 136, 145)

8шт.

18

T51656

RISER

- bearing (G119-154, 164)

10шт.

18

T51656

RISER

- bearing (G119-172, 182, 196)

11шт.

18

T51656

RISER

- bearing (G119-204, 214)

12шт.

18

T51656

RISER

- bearing (G119-232)

16шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G119-104)

3шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G119-117, 126, 136, 145)

4шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G119-154, 164, 172, 182, 196, 204)

5шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G119-214, 232)

6шт.

20

T51601

WASHER

- bumper (Rear right)

1шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G119-104)

3шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G119-117, 126, 136, 145)

4шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G119-154, 164, 172, 182, 196, 204)

5шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G119-214, 232)

6шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G119-104)

2шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G119-117, 126, 136, 145)

3шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G119-154, 164, 172, 182, 196, 204)

4шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G119-214, 232)

5шт.

23

T55132

BELL HOUSING

END BELL - small front (G119-104, 117, 126, 136, 145)

4шт.

23

T55132

BELL HOUSING

END BELL - small front (G119-154, 164, 172, 182, 196, 204, 214)

6шт.

23

T55132

BELL HOUSING

END BELL - small front (G119-232)

8шт.

24

T51668

BELL HOUSING

END BELL - small rear (G119-104)

3шт.

24

T51668

BELL HOUSING

END BELL - small rear (G119-117, 126, 136, 145, 154, 164)

4шт.

24

T51668

BELL HOUSING

END BELL - small rear (G119-172, 182, 196)

5шт.

24

T51668

BELL HOUSING

END BELL - small rear (G119-204, 214)

6шт.

24

T51668

BELL HOUSING

END BELL - small rear (G119-232)

8шт.

25

T51657

HOUSING

SUPPORT - housing front (G119-104)

7шт.

25

T51657

HOUSING

SUPPORT - housing front (G119-117, 126, 136, 145)

8шт.

25

T51657

HOUSING

SUPPORT - housing front (G119-154, 164)

10шт.

25

T51657

HOUSING

SUPPORT - housing front (G119-172, 182, 196)

11шт.

25

T51657

HOUSING

SUPPORT - housing front (G119-204, 214)

12шт.

25

T51657

HOUSING

SUPPORT - housing front (G119-232)

16шт.
