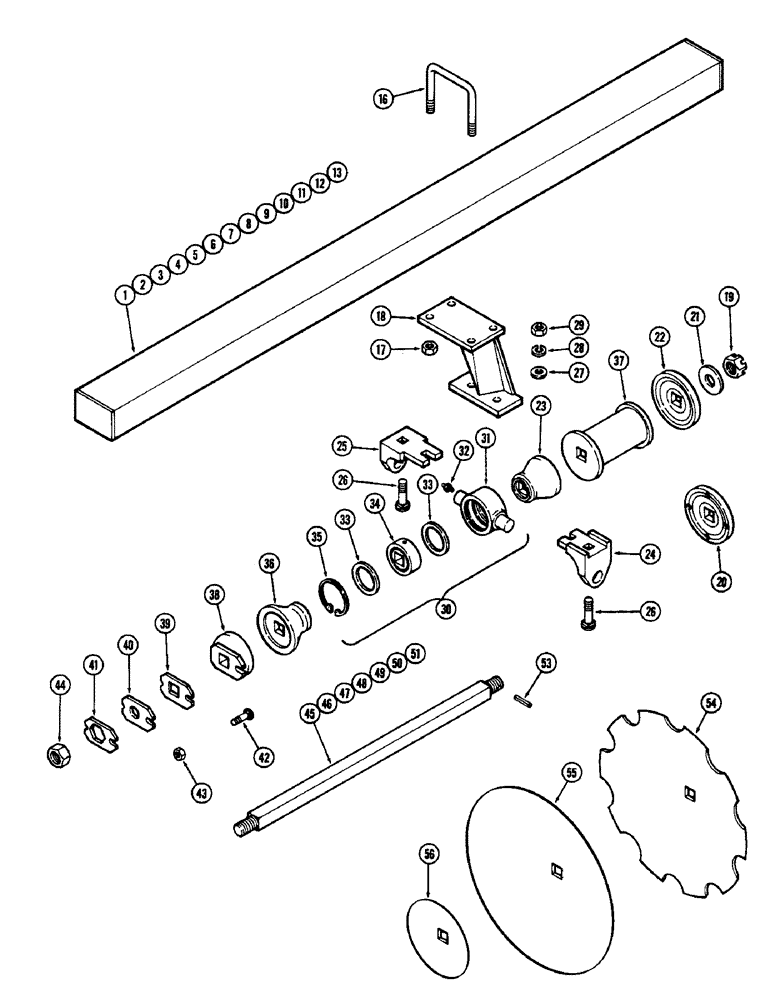

Запчасти Case IH G-SERIES (30) - GANGS, G110, 10-1/2 INCH (266.7 MM) SPACING

42

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5) (One per lock plate)

1шт.

43

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex (One per lock plate)

1шт.

44

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G110-104)

2шт.

44

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G110-114, 124, 134, 144, 154, 164)

4шт.

44

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G110-174, 184, 194, 204)

5шт.

44

25-1124

NUT,1 1/2"-12, G5

- gang bolt 1-1/2" NF hex (G110-214, 234)

6шт.

45

T51678

BOLT

BOLT - gang 10 blade 103-1/4" (2622.6 MM) (G110-104)

2шт.

45

T51678

BOLT

BOLT - gang 10 blade 103-1/4" (2622.6 MM) (G110-154, 184)

1шт.

46

T51667

BOLT

- gang 5 blade 49-1/2" (1257.3 MM) (G110-114, 124)

2шт.

46

T51667

BOLT

- gang 5 blade 49-1/2" (1257.3 MM) (G110-154, 174, 214)

1шт.

47

T51672

BOLT

- gang 6 blade 60-1/4" (1530.4 MM) (G110-114, 134, 144, 174, 194, 234)

2шт.

47

T51672

BOLT

- gang 6 blade 60-1/4" (1530.4 MM) (G110-184)

3шт.

47

T51672

BOLT

- gang 6 blade 60-1/4" (1530.4 MM) (G110-204, 214)

1шт.

48

T51625

BOLT

- gang 7 blade 70-5/8" (1793.9 MM) (G110-124, 134, 204)

2шт.

48

T51625

BOLT

- gang 7 blade 70-5/8" (1793.9 MM) (G110-154, 164, 194, 214)

1шт.

49

T51677

BOLT

- gang 8 blade 81-3/4" (2076.5 MM) (G110-144, 164, 234)

2шт.

49

T51677

BOLT

- gang 8 blade 81-3/4" (2076.5 MM) (G110-154, 174, 184, 194)

1шт.

49

T51677

BOLT

- gang 8 blade 81-3/4" (2076.5 MM) (G110-214)

3шт.

50

T51680

BOLT

BOLT - gang 9 blade 92-1/2" (2349.5 MM) (G110-164, 174, 204)

1шт.

50

T51680

BOLT

BOLT - gang 9 blade 92-1/2" (2349.5 MM) (G110-234)

2шт.

51

T51683

BOLT - gang 11 blade 114" (2895.6 MM) (G110-104, 204)

1шт.

53

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, (1 per gang bolt) 5/16" x 2 1/4", Slotted

1шт.

54

T55910

BLADE

- disk 24" (609.6 MM) x 7 gauge notched

1шт.

54

T55912

PLOW DISC

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) Notched

1шт.

54

T55914

BLADE

- disk 26 x 1/4" (660.4 x 6.4 MM) Notched

1шт.

54

T51695

DISC

BLADE - disk 20" (508.0 MM) x 7 gauge notched

1шт.

54

T55908

BLADE

- disk 22" (558.8 MM) x 7 gauge notched

3шт.

54

T55912

PLOW DISC

BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) Notched

3шт.

55

T55909

BLADE

- disk 24" (609.6 MM) x 7 gauge solid

1шт.

55

T55911

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) Solid

1шт.

55

T55913

BLADE

- disk 26 x 1/4" (660.4 x 6.4 MM) Solid

1шт.

55

T51603

DISK HARROW

BLADE - disk 20" (508.0 MM) x 7 gauge solid

1шт.

55

T55907

DISK HARROW

BLADE - disk 22" (558.8 MM) x 7 gauge solid

3шт.

55

T55911

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) Solid

3шт.

56

T55920

PLOW DISC

BLADE - disk 10" (254.0 MM) x 11 gauge solid

1шт.
