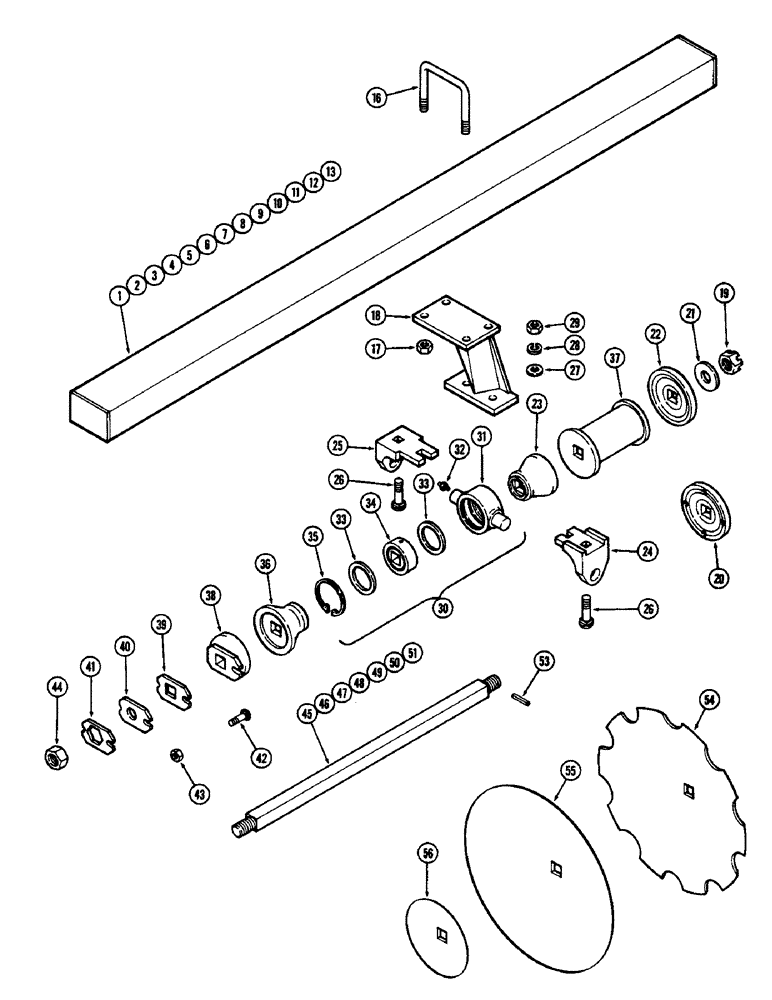

Запчасти Case IH G-SERIES (28) - GANGS, G110, 10-1/2 INCH (266.7 MM) SPACING

25

T51658

HOUSING

SUPPORT - housing rear (G110-104)

6шт.

25

T51658

HOUSING

SUPPORT - housing rear (G110-114, 124, 134, 144)

8шт.

25

T51658

HOUSING

SUPPORT - housing rear (G110-154, 164)

9шт.

25

T51658

HOUSING

SUPPORT - housing rear (G110-174, 184, 194)

11шт.

25

T51658

HOUSING

SUPPORT - housing rear (G110-204, 214)

12шт.

25

T51658

HOUSING

SUPPORT - housing rear (G110-234)

16шт.

26

111-709

CARRIAGE BOLT,Short NK, 3/4"-10 x 3", G5

BOLT - 3/4 x 3" NF carriage (Grade 5) (One per housing support)

1шт.

27

195-109

WASHER,3/4"

- 2 x 13/16" 9 gauge (One per housing support)

1шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (One per housing support) 3/4"

1шт.

29

129-128

NUT,3/4"-16, G5

- 3/4" NF hex (One per housing support)

1шт.

30

T63252

BALL BEARING,39.01mm ID x 101.6mm OD x 35.33mm W

HOUSING AND BEARING ASSEMBLY (One per bearing riser)

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63252)

1шт.

32

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

33

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

34

T51653

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING

1шт.

35

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

36

T51669

BELL HOUSING

END BELL - large (G110-104)

6шт.

36

T51669

BELL HOUSING

END BELL - large (G110-114, 124, 134, 144)

8шт.

36

T51669

BELL HOUSING

END BELL - large (G110-154, 164)

9шт.

36

T51669

BELL HOUSING

END BELL - large (G110-174, 184, 194)

11шт.

36

T51669

BELL HOUSING

END BELL - large (G110-204, 214)

12шт.

36

T51669

BELL HOUSING

END BELL - large (G110-234)

16шт.

37

T51670

SPOOL

(G110-104, 124)

12шт.

37

T51670

SPOOL

(G110-114)

10шт.

37

T51670

SPOOL

(G110-134)

14шт.

37

T51670

SPOOL

(G110-144)

16шт.

37

T51670

SPOOL

(G110-154, 174)

18шт.

37

T51670

SPOOL

(G110-164)

19шт.

37

T51670

SPOOL

(G110-184)

20шт.

37

T51670

SPOOL

(G110-194)

22шт.

37

T51670

SPOOL

(G110-204)

23шт.

37

T51670

SPOOL

(G110-214, 234)

24шт.

38

T54657

WASHER

- end (G110-104)

2шт.

38

T54657

WASHER

- end (G110-114, 124, 134, 144, 154, 164)

4шт.

38

T54657

WASHER

- end (G110-174, 184, 194, 204)

5шт.

38

T54657

WASHER

- end (G110-214, 234)

6шт.

39

T54647

PLATE

- spacer

1шт.

40

T54646

PLATE

- bearing (G110-104)

2шт.

40

T54646

PLATE

- bearing (G110-114, 124, 134, 144, 154, 164)

4шт.

40

T54646

PLATE

- bearing (G110-174, 184, 194, 204)

5шт.

40

T54646

PLATE

- bearing (G110-214, 234)

6шт.

41

T55051

PLATE

- lock (G110-104)

2шт.

41

T55051

PLATE

- lock (G110-114, 124, 134, 144, 154, 164)

4шт.

41

T55051

PLATE

- lock (G110-174, 184, 194, 204)

5шт.

41

T55051

PLATE

- lock (G110-214, 234)

6шт.
