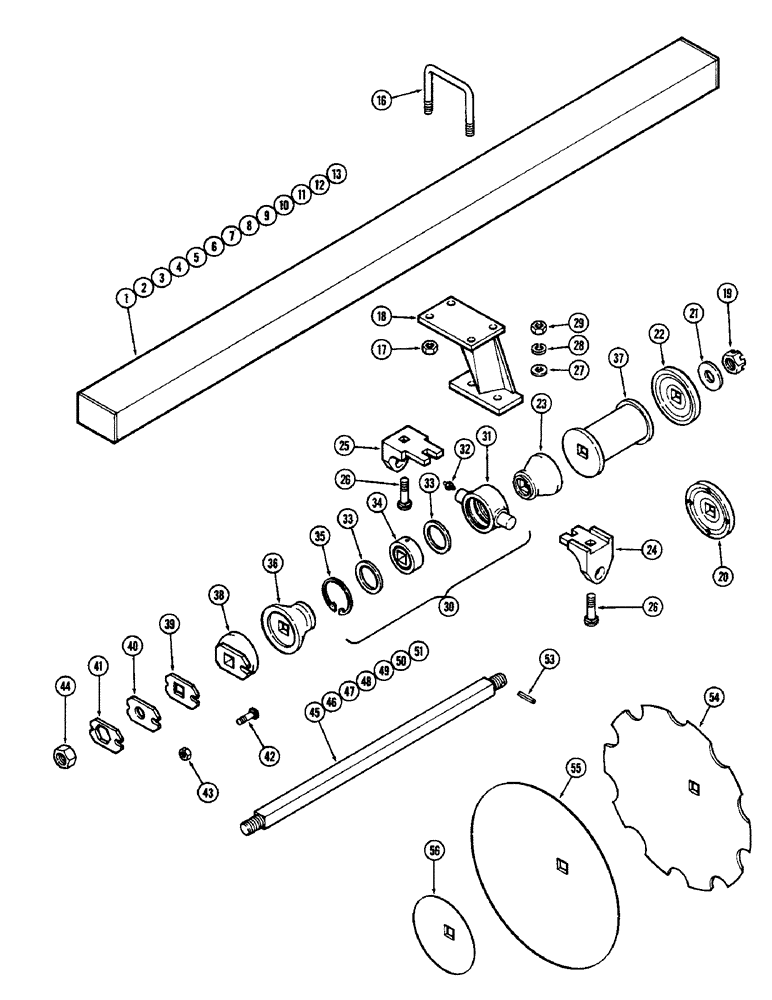

Запчасти Case IH G-SERIES (26) - GANGS, G110, 10-1/2.5 INCH (266.7 MM) SPACING

1

T51589

FRAME - gang (G110-104) 102" (2590.8 MM)

2шт.

2

T51619

FRAME - gang (G110-114) 117" (2971.8 MM)

2шт.

3

T51622

FRAME - gang (G110-124) 126" (3200.4 MM)

2шт.

4

T51623

FRAME - gang (G110-134) 135" (3429.0 MM)

2шт.

5

T51626

FRAME - gang (G110-144) 144" (3657.6 MM)

2шт.

6

T51659

FRAME - gang (G110-154) 155" (3937.0 MM)

2шт.

7

T51660

FRAME - gang (G110-164) 165" (4191.0 MM)

2шт.

8

T51661

FRAME - gang (G110-174) 175" (4445.0 MM)

2шт.

9

T51681

FRAME - gang (G110-184) 187" (4749.8 MM)

2шт.

10

T51645

FRAME - gang (G110-194) 200" (5080.0 MM)

2шт.

11

T51646

FRAME - gang (G110-204) 209" (5308.6 MM)

2шт.

12

T51647

FRAME - gang (G110-214) 219" (5562.6 MM)

2шт.

13

T51649

FRAME - gang (G110-234) 238" (6045.2 MM)

2шт.

16

T51593

BOLT

U BOLT (Two per bearing riser)

1шт.

17

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per u bolt)

1шт.

18

T51656

RISER

- bearing (G110-104)

6шт.

18

T51656

RISER

- bearing (G110-114, 124, 134, 144)

8шт.

18

T51656

RISER

- bearing (G110-154, 164)

9шт.

18

T51656

RISER

- bearing (G110-174, 184, 194)

11шт.

18

T51656

RISER

- bearing (G110-204, 214)

12шт.

18

T51656

RISER

- bearing (G110-234)

16шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G110-104)

2шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G110-114, 124, 134, 144, 154, 164)

4шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G110-174, 184, 194, 204)

5шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G110-214, 234)

6шт.

20

T51601

WASHER

- bumper (Rear right)

1шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G110-104)

2шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G110-114, 124, 134, 144, 154, 164)

4шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G110-174, 184, 194, 204)

5шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G110-214, 234)

6шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G110-104)

1шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G110-114, 124, 134, 144, 154, 164)

3шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G110-174, 184, 194, 204)

4шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G110-213, 234)

5шт.

23

T51668

BELL HOUSING

END BELL - small (G110-104)

6шт.

23

T51668

BELL HOUSING

END BELL - small (G110-114, 124, 134, 144)

8шт.

23

T51668

BELL HOUSING

END BELL - small (G110-154, 164)

9шт.

23

T51668

BELL HOUSING

END BELL - small (G110-174, 184, 194)

11шт.

23

T51668

BELL HOUSING

END BELL - small (G110-204, 214)

12шт.

23

T51668

BELL HOUSING

END BELL - small (G110-234)

16шт.

24

T51657

HOUSING

SUPPORT - housing front (G110-104)

6шт.

24

T51657

HOUSING

SUPPORT - housing front (G110-114, 124, 134, 144)

8шт.

24

T51657

HOUSING

SUPPORT - housing front (G110-154, 164)

9шт.

24

T51657

HOUSING

SUPPORT - housing front (G110-174, 184, 194)

11шт.

24

T51657

HOUSING

SUPPORT - housing front (G110-204, 214)

12шт.

24

T51657

HOUSING

SUPPORT - housing front (G110-234)

16шт.
