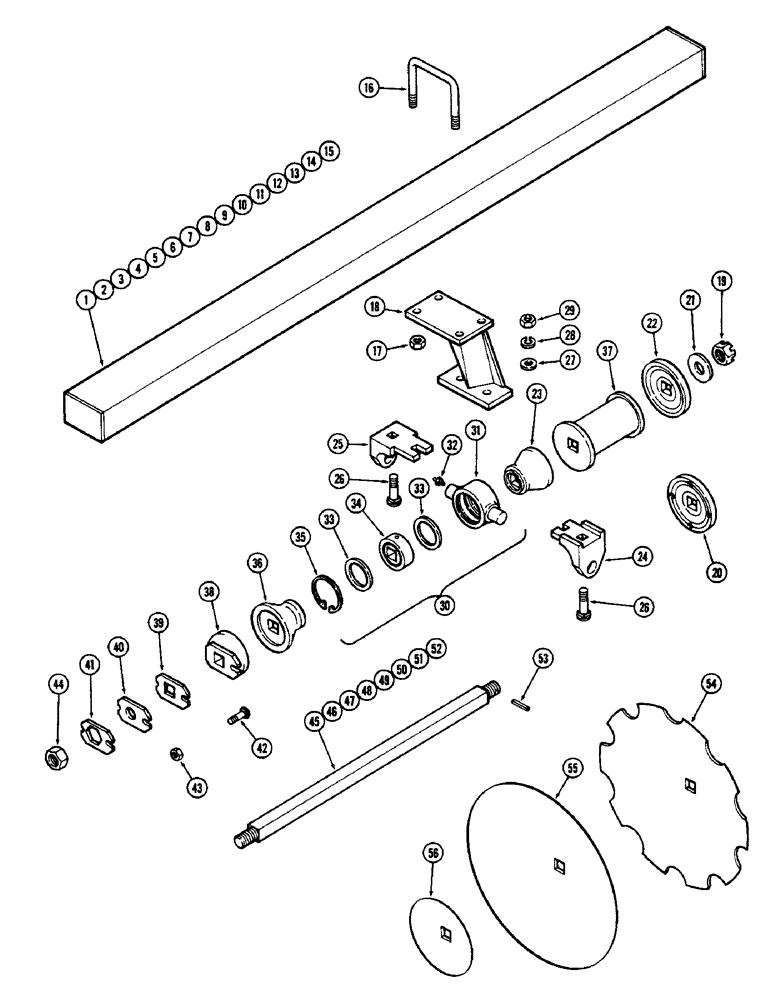

Запчасти Case IH G-SERIES (24) - GANGS, G109, 9 INCH (228.6 MM) SPACING
№
Артикул
Название
Примечание
Количество
44
25-1124
NUT,1 1/2"-12, G5
- gang bolt 1-1/2" NF hex (G109-103, 112, 120, 126, 138, 146)
4шт.
44
25-1124
NUT,1 1/2"-12, G5
- gang bolt 1-1/2" NF hex (G109-154, 163, 170, 180, 189, 198, 206, 214)
5шт.
44
25-1124
NUT,1 1/2"-12, G5
- gang bolt 1-1/2" NF hex (G109-232)
6шт.
45
T51598
BOLT
- gang 5 blade 42-7/8" (1089.0 MM) (G109-103, 154)
2шт.
45
T51598
BOLT
- gang 5 blade 42-7/8" (1089.0 MM) (G109-163)
1шт.
46
T51599
BOLT
- gang 6 blade 52-1/8" (1324.0 MM) (G109-103, 120)
2шт.
46
T51599
BOLT
- gang 6 blade 52-1/8" (1324.0 MM) (G109-112)
4шт.
46
T51599
BOLT
- gang 6 blade 52-1/8" (1324.0 MM) (G109-163, 170, 180)
1шт.
47
T51621
BOLT
- gang 7 blade 61-3/8" (1558.9 MM) (G109-120, 138, 154, 180, 198, 232)
2шт.
47
T51621
BOLT
- gang 7 blade 61-3/8" (1558.9 MM) (G109-126)
4шт.
47
T51621
BOLT
- gang 7 blade 61-3/8" (1558.9 MM) (G109-163, 170, 206, 214)
1шт.
47
T51621
BOLT
- gang 7 blade 61-3/8" (1558.9 MM) (G109-189)
3шт.
48
T51625
BOLT
- gang 8 blade 70-5/8" (1793.9 MM) (G109-138, 170, 206)
2шт.
48
T51625
BOLT
- gang 8 blade 70-5/8" (1793.9 MM) (G109-146)
4шт.
48
T51625
BOLT
- gang 8 blade 70-5/8" (1793.8 MM) (G109-163, 198, 214)
1шт.
49
T51638
BOLT
BOLT - gang 9 blade 79-7/8" (2028.8 MM) (G109-214)
1шт.
49
T51638
BOLT
BOLT - gang 9 blade 79-7/8" (2028.8 MM) (G109-232)
2шт.
50
T51639
BOLT
- gang 10 blade 89-1/8" (2263.8 MM) (G109-154, 163, 189)
1шт.
50
T51639
BOLT
- gang 10 blade 89-1/8" (2263.8 MM) (G109-180, 232)
2шт.
51
T51643
BOLT
- gang 11 blade 98-3/8" (2498.7 MM) (G109-170, 189, 206)
1шт.
51
T51643
BOLT
- gang 11 blade 98-3/8" (2498.7 MM) (G109-198)
2шт.
52
T51665
BOLT
- gang 12 blade 107-5/8" (2733.7 MM) (G109-206)
1шт.
52
T51665
BOLT
- gang 12 blade 107-5/8" (2733.7 MM) (G109-214)
2шт.
53
138-162
LOCK PIN,5/16" x 2 1/4", Slotted
Pin, (1 per gang bolt) 5/16" x 2 1/4", Slotted
1шт.
54
T55910
BLADE
- disk 24" (609.6 MM) x 7 gauge notched
1шт.
54
T55912
PLOW DISC
BLADE - disk 24 x 1/4" (609.6 x 6.4 MM) Notched
1шт.
54
T51695
DISC
BLADE - disk 20" (508.0 MM) x 7 gauge notched
1шт.
54
T55908
BLADE
- disk 22" (558.8 MM) x 7 gauge notched
3шт.
55
T55909
BLADE
- disk 24" (609.6 MM) x 7 gauge solid
1шт.
55
T55911
BLADE
- disk 24 x 1/4" (609.6 x 6.4 MM) Solid
1шт.
55
T51604
PLOW DISC
BLADE - disk 18" (457.2 MM) x 8 gauge solid
1шт.
55
T51603
DISK HARROW
BLADE - disk 20" (508.0 MM) x 7 gauge solid
1шт.
55
T55907
DISK HARROW
BLADE - disk 22" (558.8 MM) x 7 gauge solid
3шт.
56
T55920
PLOW DISC
BLADE - disk 10" (254.0 MM) x 11 gauge solid
1шт.
Выбрано товаров: 34
