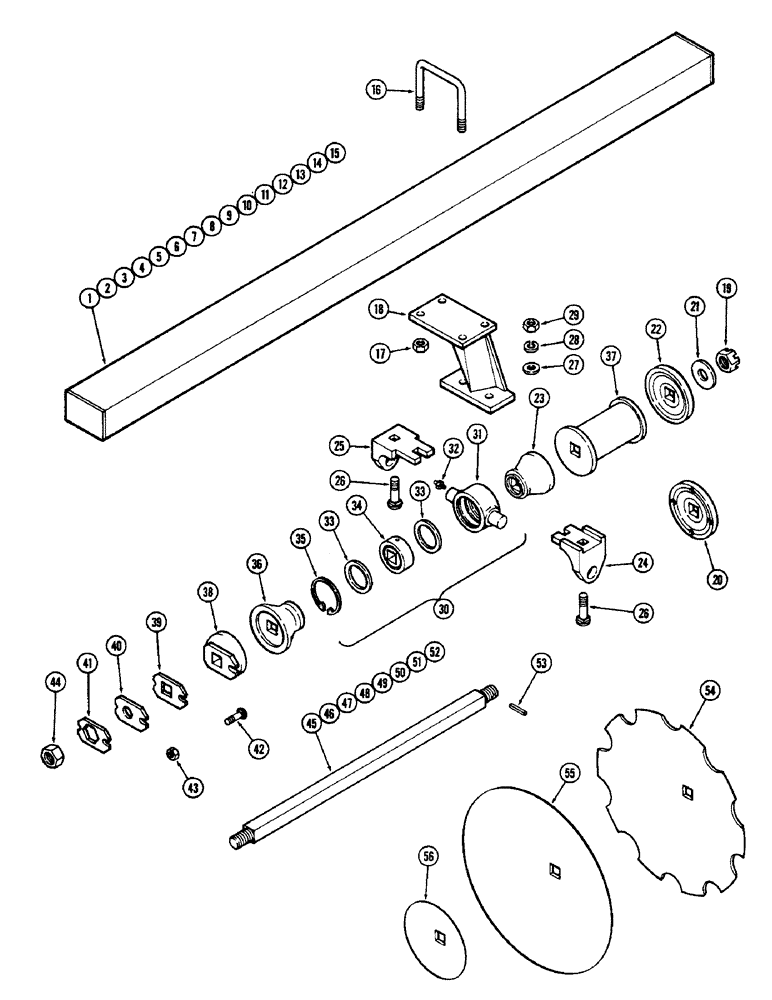

Запчасти Case IH G-SERIES (22) - GANGS, G109, 9 INCH (228.6 MM) SPACING

25

T51658

HOUSING

SUPPORT - housing rear (G109-103, 112, 120, 126, 138, 146)

8шт.

25

T51658

HOUSING

SUPPORT - housing rear (G109-154, 163, 170)

11шт.

25

T51658

HOUSING

SUPPORT - housing rear (G109-180, 189, 198, 206, 214)

12шт.

25

T51658

HOUSING

SUPPORT - housing rear (G109-232)

16шт.

26

111-709

CARRIAGE BOLT,Short NK, 3/4"-10 x 3", G5

BOLT - 3/4 x 3" NF carriage (Grade 5) (One per housing support)

1шт.

27

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge (One per housing support)

1шт.

28

192-27

LOCK WASHER,3/4"

WASHER, LOCK, (One per housing support) 3/4"

1шт.

29

129-128

NUT,3/4"-16, G5

- 3/4" NF hex (One per housing support)

1шт.

30

T63252

BALL BEARING,39.01mm ID x 101.6mm OD x 35.33mm W

HOUSING AND BEARING ASSEMBLY (One per bearing riser)

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - bearing (Order T63252)

1шт.

32

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

33

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

- bearing

2шт.

34

T51653

BEARING, BALL,38.76mm ID x 100mm OD x 33.34mm W

BEARING

1шт.

35

T51654

SNAP RING,4.00", Int, #400

Ring, Snap, 4.00", Int, #400

1шт.

36

T55133

BELL HOUSING

END BELL - large (G109-103, 112, 120, 126, 138, 146)

8шт.

36

T55133

BELL HOUSING

END BELL - large (G109-154, 163, 170)

11шт.

36

T55133

BELL HOUSING

END BELL - large (G109-180, 189, 198, 206, 214)

12шт.

36

T55133

BELL HOUSING

END BELL - large (G109-232)

16шт.

37

T51655

CASTING

SPOOL (G109-103)

10шт.

37

T51655

CASTING

SPOOL (G109-112)

12шт.

37

T51655

CASTING

SPOOL (G109-120)

14шт.

37

T51655

CASTING

SPOOL (G109-126)

16шт.

37

T51655

CASTING

SPOOL (G109-138, 154)

18шт.

37

T51655

CASTING

SPOOL (G109-146, 163)

20шт.

37

T51655

CASTING

SPOOL (G109-170)

22шт.

37

T51655

CASTING

SPOOL (G109-180)

23шт.

37

T51655

CASTING

SPOOL (G109-189)

25шт.

37

T51655

CASTING

SPOOL (G109-198)

27шт.

37

T51655

CASTING

SPOOL (G109-206)

29шт.

37

T51655

CASTING

SPOOL (G109-214)

33шт.

37

T51655

CASTING

SPOOL (G109-232)

30шт.

38

T54657

WASHER

- end (G109-103, 112, 120, 126, 138, 145)

4шт.

38

T54657

WASHER

- end (G109-154, 163, 170, 180, 189, 198, 206, 214)

5шт.

38

T54657

WASHER

- end (G109-232)

6шт.

39

T54647

PLATE

- spacer

1шт.

40

T54646

PLATE

- bearing (G109-103, 112, 120, 126, 138, 146)

4шт.

40

T54646

PLATE

- bearing (G109-154, 163, 170, 180, 189, 198, 206, 214)

5шт.

40

T54646

PLATE

- bearing (G109-232)

6шт.

41

T55051

PLATE

- lock (G109-103, 112, 120, 126, 138, 146)

4шт.

41

T55051

PLATE

- lock (G109-154, 163, 170, 180, 189, 198, 206, 214)

5шт.

41

T55051

PLATE

- lock (G109-232)

6шт.

42

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - 1/2 x 2" NC carriage (Grade 5) (One per lock plate)

1шт.

43

131-165

NUT,1/2"-13, GA

NUT - lock 1/2" NC hex (One per lock plate)

1шт.
