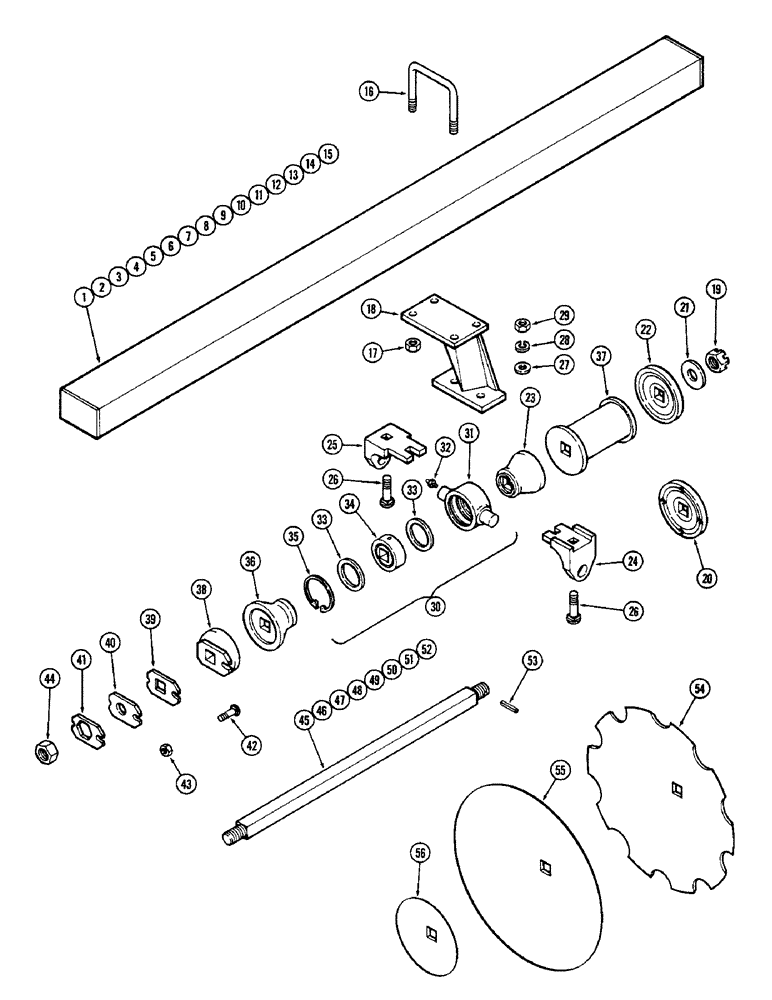

Запчасти Case IH G-SERIES (20) - GANGS, G109, 9 INCH (228.6 MM) SPACING

1

T51589

FRAME - gang (G109-103) 102" (2590.8 MM)

2шт.

2

T51618

FRAME - gang (G109-112) 108" (2743.2 MM)

2шт.

3

T51619

FRAME - gang (G109-120) 117" (2971.8 MM)

2шт.

4

T51622

FRAME - gang (G109-126) 126" (3200.4 MM)

2шт.

5

T51623

FRAME - gang (G109-138) 135" (3429.0 MM)

2шт.

6

T51626

FRAME - gang (G109-146) 144" (3657.6 MM)

2шт.

7

T51659

FRAME - gang (G109-154) 155" (3937.0 MM)

2шт.

8

T51660

FRAME - gang (G109-163) 165" (4191.0 MM)

2шт.

9

T51661

FRAME - gang (G109-170) 175" (4445.0 MM)

2шт.

NOTE:BOLT FOR A 9 BLADE MEASURES 92 1/2"

1шт.

10

T51662

FRAME - gang (G109-180) 183" (4648.2 MM)

2шт.

NOTE:BOLT FOR A 10 BLADE MEASURES 103 1/4"

1шт.

11

T51663

FRAME - gang (G109-189) 192" (4876.8 MM)

2шт.

12

T51645

FRAME - gang (G109-198) 200" (5080.0 MM)

2шт.

13

T51646

FRAME - gang (G109-206) 209" (5308.6 MM)

2шт.

14

T51647

FRAME - gang (G109-214) 219" (5562.6 MM)

2шт.

15

T51649

FRAME - gang (G109-232) 238" (6045.2 MM)

2шт.

16

T51593

BOLT

U BOLT (Two per bearing riser)

1шт.

17

131-1131

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex (Two per u bolt)

1шт.

18

T51656

RISER

- bearing (G109-103, 112, 120, 126, 138, 146)

8шт.

18

T51656

RISER

- bearing (G109-154, 163, 170)

11шт.

18

T51656

RISER

- bearing (G109-180, 189, 198, 206, 214)

12шт.

18

T51656

RISER

- bearing (G109-232)

16шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G109-103, 112, 120, 126, 138, 146)

4шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G109-154, 163, 170, 180, 189, 198, 206, 214)

5шт.

19

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - 1-1/2" NF hex slotted (G109-232)

6шт.

20

T51601

WASHER

- bumper (Rear right)

1шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G109-103, 112, 120, 126, 138, 146)

4шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G109-154, 163, 170, 180, 189, 198, 206, 214)

5шт.

21

195-114

WASHER,1 3/8"

- 3-1/4 x 1-1/2" x 7 gauge (G109-232)

6шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G109-103, 112, 120, 126, 138, 146)

3шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G109-154, 163, 170, 180, 189, 198, 206, 214)

4шт.

22

T51600

WASHER,39.69mm ID x 171.45mm OD x 15.88mm Thk

- bumper (G109-232)

6шт.

23

T55132

BELL HOUSING

END BELL - small (G109-103, 112, 120, 126, 138, 146)

8шт.

23

T55132

BELL HOUSING

END BELL - small (G109-154, 163, 170)

11шт.

23

T55132

BELL HOUSING

END BELL - small (G109-180, 189, 198, 206, 214)

12шт.

23

T55132

BELL HOUSING

END BELL - small (G109-232)

16шт.

24

T51657

HOUSING

SUPPORT - housing front (G109-103, 112, 120, 126, 138, 146)

8шт.

24

T51657

HOUSING

SUPPORT - housing front (G109-154, 163, 170)

11шт.

24

T51657

HOUSING

SUPPORT - housing front (G109-180, 189, 198, 206, 214)

12шт.

24

T51657

HOUSING

SUPPORT - housing front (G109-232)

16шт.
