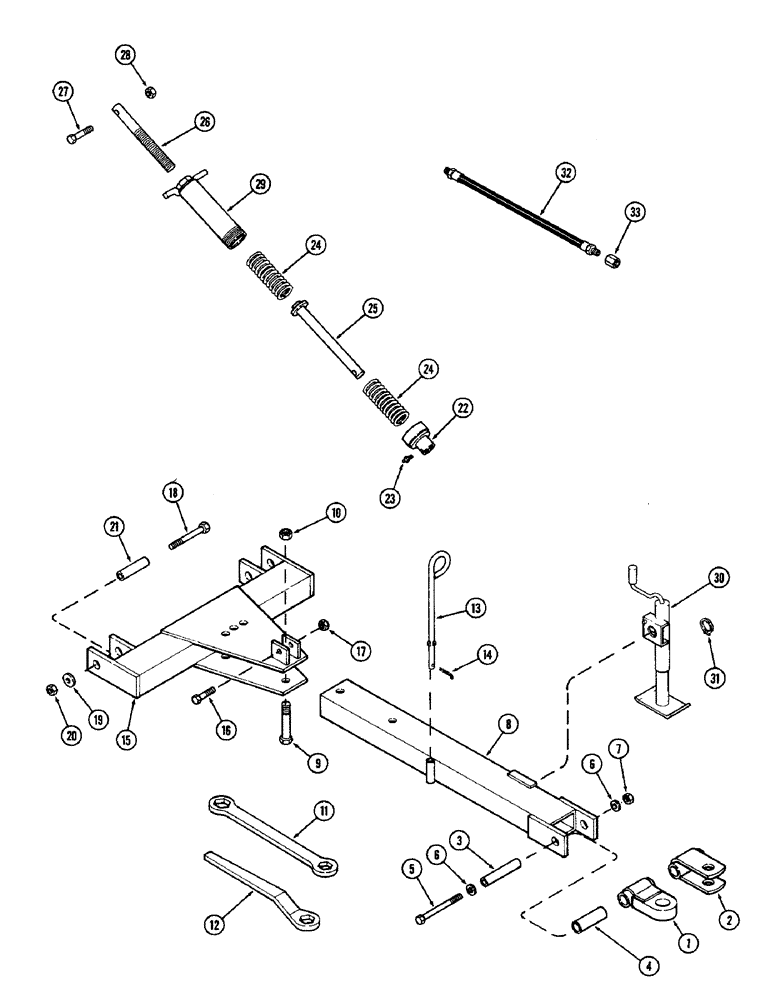

Запчасти Case IH G-SERIES (02) - HITCH, BEFORE SERIAL NUMBER 1607526

1

T54095

CLEVIS

- hitch

1шт.

2

T52519

CLEVIS

- hitch

1шт.

3

T51566

BUSHING

- clevis

1шт.

4

T51565

BUSHING

- clevis

1шт.

5

113-735

BOLT,Hex, 3/4" - 10 x 9", Gr 5

- 3/4 x 9" NC hex (Grade 5)

1шт.

6

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

2шт.

7

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

8

T51567

TOW BAR

TONGUE - pull (Order 1-T55134 and 1-T55130)

1шт.

9

13-20104

BOLT,Hex, 1-1/4" - 7 x 6-1/2", Gr 5

- 1-1/4 x 6-1/2" NC hex (Grade 5)

2шт.

10

131-382

LOCK NUT,1 1/4"-7, GA

NUT - lock 1-1/4" NC hex

2шт.

11

T54660

WRENCH - angle set bolts

1шт.

12

T54659

WRENCH - gang bolt nuts

1шт.

13

T53995

HOLDER - hose

1шт.

14

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

1шт.

15

T51568

TONGUE - cross

1шт.

16

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

17

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

18

113-776

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- 3/4 x 7" NC hex (Grade 5)

2шт.

19

195-109

WASHER,3/4"

- 2 x 13/16" x 9 gauge

2шт.

20

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

2шт.

21

T51569

BUSHING

2шт.

22

T51572

CAP

1шт.

23

219-15

LUBE NIPPLE,5/16" NPTF

FITTING - grease 5/16"

1шт.

24

T51576

SPRING

2шт.

25

T51573

ROD

- piston

1шт.

26

T51574

ROD

- threaded

1шт.

27

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

28

131-385

LOCK NUT,3/4"-10, GA

NUT - lock 3/4" NC hex

1шт.

29

T51571

HOUSING

- spring

1шт.

30

T51689

JACK

1шт.

31

T33700

SNAP RING,#250, Ext

Ring, Snap, #250, Ext

1шт.

32

A135109

HYDRAULIC HOSE,1/2" ID x 31" L, SAE 100R1

0.50" ID x , SAE 100R1 - Extension 31.00"

2шт.

33

A135110

ADAPTER

- hose

2шт.
