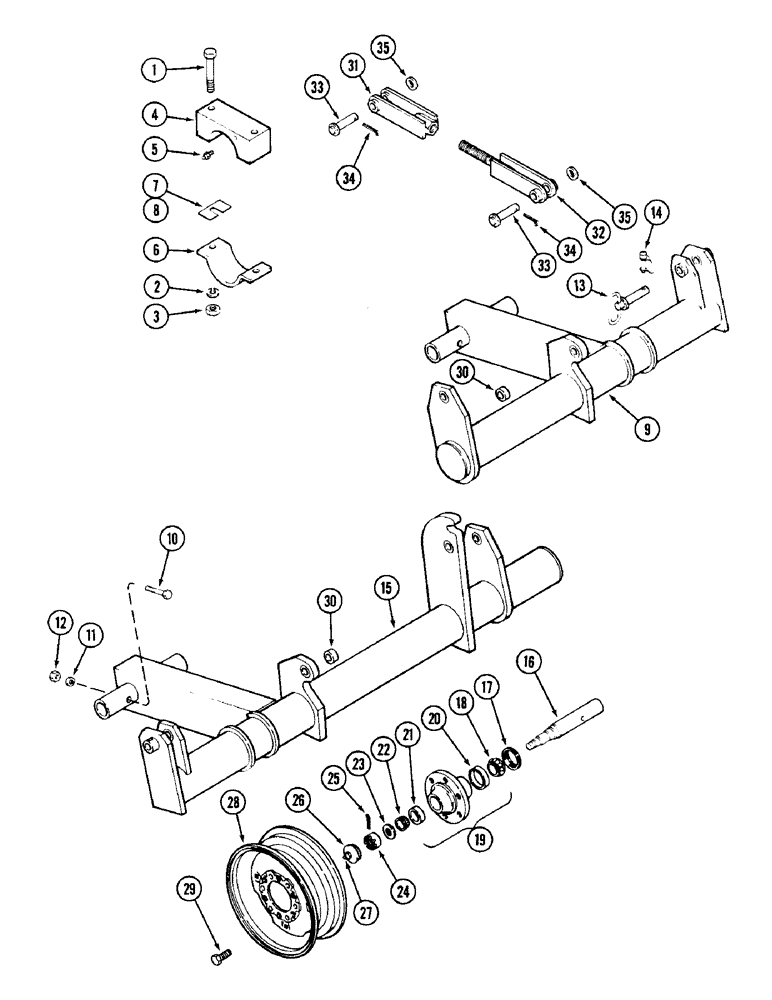

Запчасти Case IH DOT B (016) - CENTER AXLES AND WHEELS, 17, 20 AND 23 FOOT (5.2, 6.1 AND 7.0 M)
№
Артикул
Название
Примечание
Количество
1
113-737
BOLT,Hex, 3/4" - 10 x 6", Gr 5
8шт.
2
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
8шт.
3
129-108
NUT,3/4"-10, G5
8шт.
4
T54947
BEARING
- axle 5-1/2" (139.7 MM) diameter
4шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease 1/8"
4шт.
6
T54755
CLAMP
- axle bearing 5-1/2" (139.7 MM) diameter
4шт.
7
T56224
SHIM
- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 12 gauge
1шт.
8
T56225
SHIM
- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) 16 gauge
1шт.
9
T57403
AXLE - left center
1шт.
10
113-241
BOLT,Hex, 3/8" - 16 x 3", Gr 5
4шт.
11
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
12
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
13
T55798
PIN - 1 x 6-1/8" (25.4 x 155.6 MM)
2шт.
14
T55843
PIN - snapper
2шт.
15
T57402
AXLE - right center
1шт.
16
T55744
SPINDLE
4шт.
17
T54255
OIL SEAL
SEAL - grease
4шт.
18
G15219
ROLLER BEARING
CONE - bearing inner 1-5/8" ID (41.3 MM)
4шт.
19
T54253
HUB
ASSEMBLY - with cups
4шт.
20
G15218
BEARING, CUP
CUP - bearing inner 2-7/8" OD (73.0 MM)
1шт.
21
B12408
BEARING CUP,59.156 mm OD x 11.862 mm
CUP - bearing outer 2-5/16 OD (58.7 MM)
1шт.
22
B12409
BEARING, ROLLER,31.763 mm ID x 16.84 mm
CONE - bearing outer 1-1/4" ID (31.8 MM)
4шт.
23
195-50
WASHER,7/8" x 2" x .165"
- 2 x 15/16" 8 gauge
4шт.
24
25-1314
SLOTTED NUT,7/8"-14, G5
NUT - 7/8" NF hex slotted
4шт.
25
132-77
COTTER PIN,5/32" x 2"
PIN - cotter 5/32 x 1-1/4"
4шт.
26
T54729
DUST CAP
CAP ASSEMBLY - dust
4шт.
28
A57879
RIM
WHEEL - 15 x 8" (381.0 x 203.2 MM)
4шт.
29
A29912
BOLT
BOLT - hub
24шт.
30
T55853
BUSHING
2шт.
31
T57398
CONNECTOR, ELEC
CONNECTOR - swivel
1шт.
32
T57399
ROD
- swivel connector
1шт.
33
T54750
PIN
- 1 x 4-3/8" (25.4 x 111.1 MM)
2шт.
34
132-313
COTTER PIN,1/4" x 2"
PIN, Split (Cotter), 1/4" x 2"
2шт.
35
195-111
WASHER,1"
- 2-1/2 x 1-1/16" x 8 gauge
2шт.
Выбрано товаров: 35
