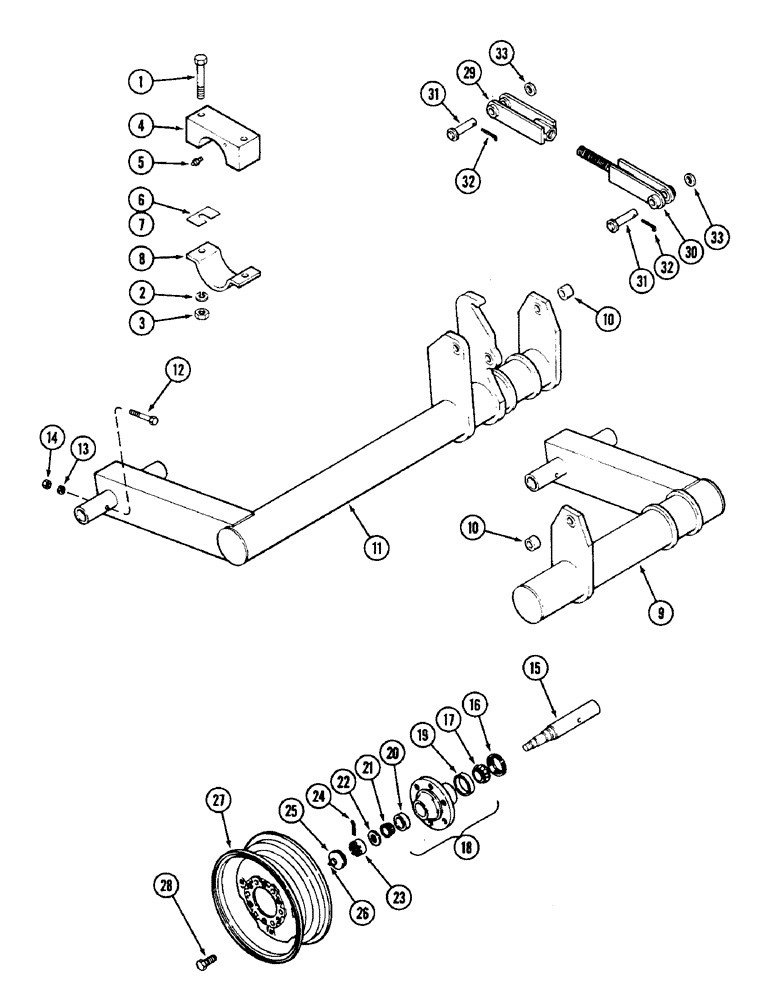

Запчасти Case IH DOT B (014) - AXLES AND WHEELS, 11 AND 14 FOOT (3.4 AND 4.3 M)

1

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

2

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

3

129-108

NUT,3/4"-10, G5

8шт.

4

T54947

BEARING

- axle 5-1/2" (139.7 MM) diameter

4шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

6

T56224

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 12 gauge

1шт.

7

T56225

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 16 gauge

1шт.

8

T54755

CLAMP

- axle bearing 5-1/2" (139.7 MM) diameter

4шт.

9

T57408

AXLE - left center

1шт.

10

T55853

BUSHING

2шт.

11

T57407

AXLE - right center

1шт.

12

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

T56597

SPINDLE

4шт.

16

T23709

SEAL

- grease

4шт.

17

G57452

ROLLER BEARING

CONE - bearing inner 1-3/8" ID (34.9 MM)

4шт.

18

T27113

HUB

ASSEMBLY - with cups

4шт.

19

G57451

BEARING, CUP

CUP - bearing inner 2-9/16" OD (65.1 MM)

1шт.

20

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

21

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

4шт.

22

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

4шт.

23

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

4шт.

24

132-77

COTTER PIN,5/32" x 2"

PIN - cotter 5/32 x 1-1/4"

4шт.

25

T54729

DUST CAP

CAP ASSEMBLY - dust

4шт.

26

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

27

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

4шт.

28

A29912

BOLT

BOLT - hub

24шт.

29

T57398

CONNECTOR, ELEC

CONNECTOR - swivel

1шт.

30

T57399

ROD

- swivel connector

1шт.

31

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

2шт.

32

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

33

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

2шт.
