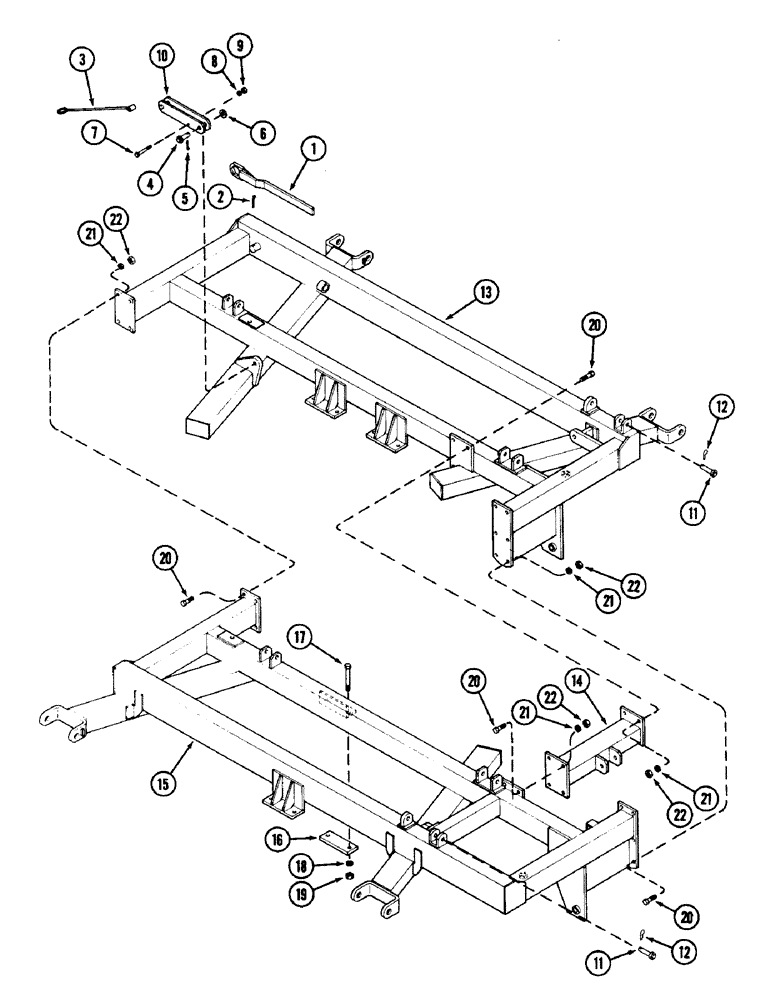

Запчасти Case IH DOT B (012) - MAIN FRAMES, 25, 28 AND 31 FOOT (7.6, 8.5 AND 9.5 M)

1

T55436

WRENCH

1шт.

2

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

3

T56226

HANDLE - axle lockout

1шт.

4

T54735

PIN

- 1 x 3-1/2" (25.4 x 88.9 MM)

1шт.

5

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

6

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

7

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

1шт.

8

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

10

T55762

LOCKOUT - axle

1шт.

11

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

2шт.

12

136-162

HAIR PIN COTTER,Int, 1/2" x .250"

COTTER

1шт.

13

T55748

FRAME - left main

1шт.

14

T57406

CROSS MEMBER

1шт.

15

T55747

FRAME - right main

1шт.

16

T55767

PLATE - clamp

1шт.

17

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

18

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

19

129-108

NUT,3/4"-10, G5

2шт.

20

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

17шт.

21

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

17шт.

22

129-108

NUT,3/4"-10, G5

17шт.
