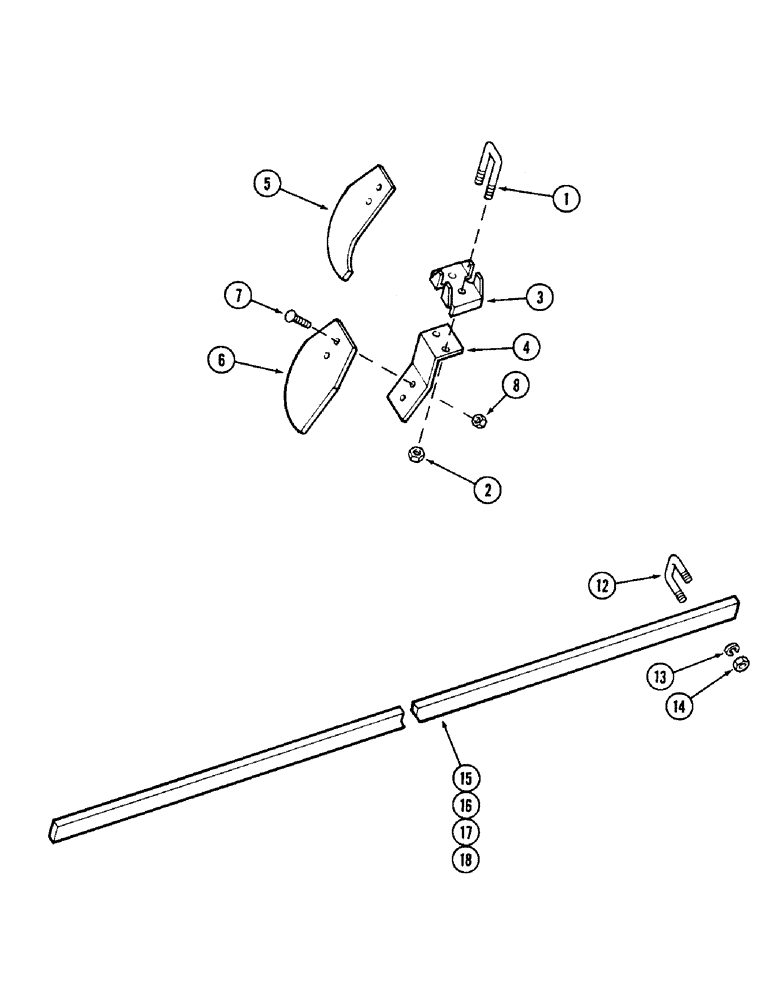

Запчасти Case IH DOT B (098) - SCRAPERS, FRONT AND REAR

1

T54785

BOLT

U-BOLT

1шт.

2

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

2шт.

3

T55808

CLIP

- scraper arm

1шт.

4

T54789

ARM

- scraper

1шт.

5

T54790

HALF BLADE

BLADE - scraper, bearing stand

1шт.

6

T54788

HALF BLADE

BLADE - scraper

1шт.

7

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

BOLT - 1/2 x 1-1/2" NC carriage (Grade 5)

2шт.

8

131-805

LOCK NUT,Spcl, Hex, 1/2" - 13 x 0.4375" Thk, Gr A, Pellet

NUT - lock 1/2" NC hex

2шт.

12

T54786

BOLT

U-BOLT, scraper bars, 11 & 14 foot [3.4 & 4.3 m]

6шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Scraper bars 11 & 14 foot [3.4 &4.3 m] 1/2"

12шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

Scraper bars 11 & 14 foot [3.4 & 4.3 m] 1/2"-13, G5

12шт.

15

T54898

BAR - scraper (Front RH and LH) 11 foot (3.4 M) 70" (1778.0 MM) [4.3m] bars

2шт.

16

T54921

BAR - scraper (Rear RH and LH) 11 foot (3.4 M) 78" (1981.2 MM), bars, [4.3m]

2шт.

17

T55821

BAR - scraper (Front RH and LH) 14 foot (4.3 M) 89" (2260.6 MM), bars [4.3 m ]

2шт.

18

T55822

BAR - scraper (Rear RH and LH) 14 foot (4.3 M) 97" (2463.8 MM), bars, [4.3 m]

2шт.
