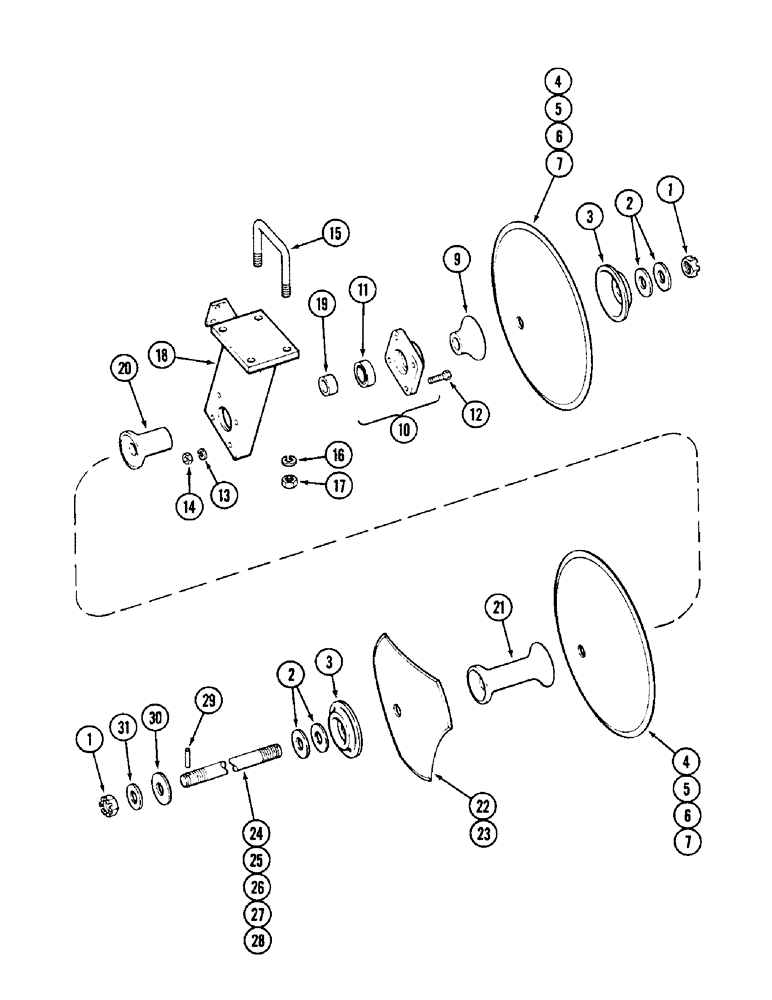

Запчасти Case IH DOT B (094) - REAR RIGHT WING GANG, 17 THROUGH 31 FOOT (5.2 THROUGH 9.5 M)

1

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC hex slotted

2шт.

2

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

4шт.

3

T56698

WASHER

- spring

2шт.

4

T55813

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) solid

1шт.

5

T55816

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) solid

1шт.

6

T57315

BLADE

- disk 18" (457.2 MM) x 6 gauge solid

1шт.

7

T55814

BLADE

- disk 20 x 1/4" (508.0 x 6.4 MM) solid

1шт.

9

T55806

SPOOL

- half front bearing 17 foot (5.2 M)

2шт.

9

T55806

SPOOL

- half front bearing 20 - 28 foot (6.1 - 8.5 M)

3шт.

9

T55806

SPOOL

- half front bearing 31 foot (9.5 M)

4шт.

10

T55805

BEARING ASSY

BEARING ASSEMBLY - gang 17 foot (5.2 M)

2шт.

10

T55805

BEARING ASSY

BEARING ASSEMBLY - gnag 20 - 28 foot (6.1 - 8.5 M)

3шт.

10

T55805

BEARING ASSY

BEARING ASSEMBLY - gang 31 foot (9.5 M)

4шт.

11

T54897

FLANGED BEARING,45.09mm ID x 90mm OD x 30.16mm W

BEARING

1шт.

12

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4 per bearing Hex, 1/2"-13 x 2", G5

1шт.

13

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

14

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

15

T54958

BOLT

U-BOLT (Two per bearing stand)

1шт.

16

192-29

LOCK WASHER,7/8"

(2 per u-bolt) 7/8"

1шт.

17

129-109

NUT,7/8"-9, G5

(Two per u-bolt) 7/8"-9, G5

1шт.

18

T55771

STAND - bearing 17 foot (5.2 M)

2шт.

18

T55771

STAND - bearing 20 - 28 foot (6.1 - 8.5 M)

3шт.

18

T55771

STAND - bearing 31 foot (9.5 M)

4шт.

19

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing 17 foot (5.2 M)

2шт.

19

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing 20 - 28 foot (6.1 - 8.5 M)

3шт.

19

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing 31 foot (9.5 M)

4шт.

20

T55807

SPOOL

- half rear bearing 17 foot (5.2 M)

2шт.

20

T55807

SPOOL

- half rear bearing 20 - 28 foot (6.1 - 8.5 M)

3шт.

20

T55807

SPOOL

- half rear bearing 31 foot (9.5 M)

4шт.

21

T56068

SPOOL

1шт.

22

T57311

BLADE

- disk 16" (406.4 MM) x 0.180"

1шт.

23

T54955

BLADE - disk 18" (457.2 MM) x 0.148"

1шт.

24

T55475

SHAFT

BOLT - gang 70-1/4" (1784.4 MM) 17 foot (5.2 M)

1шт.

25

T5547

BOLT - gang 88-1/2" (2247.9 MM) 20 foot (6.1 M)

1шт.

26

T55479

SHAFT

BOLT - gang 107" (2717.8 MM) 23 and 25 foot (7.0 and 7.6 M)

1шт.

27

T57525

SHAFT

BOLT - gang 125" (3175.0 MM) 28 foot (8.5 M)

1шт.

28

T57558

SHAFT

BOLT - gang 144" (3657.6 MM) 31 foot (9.5 M)

1шт.

29

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

2шт.

30

T54884

WASHER

- 4 x 1-9/16 x 3/8"

1шт.

31

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

1шт.
