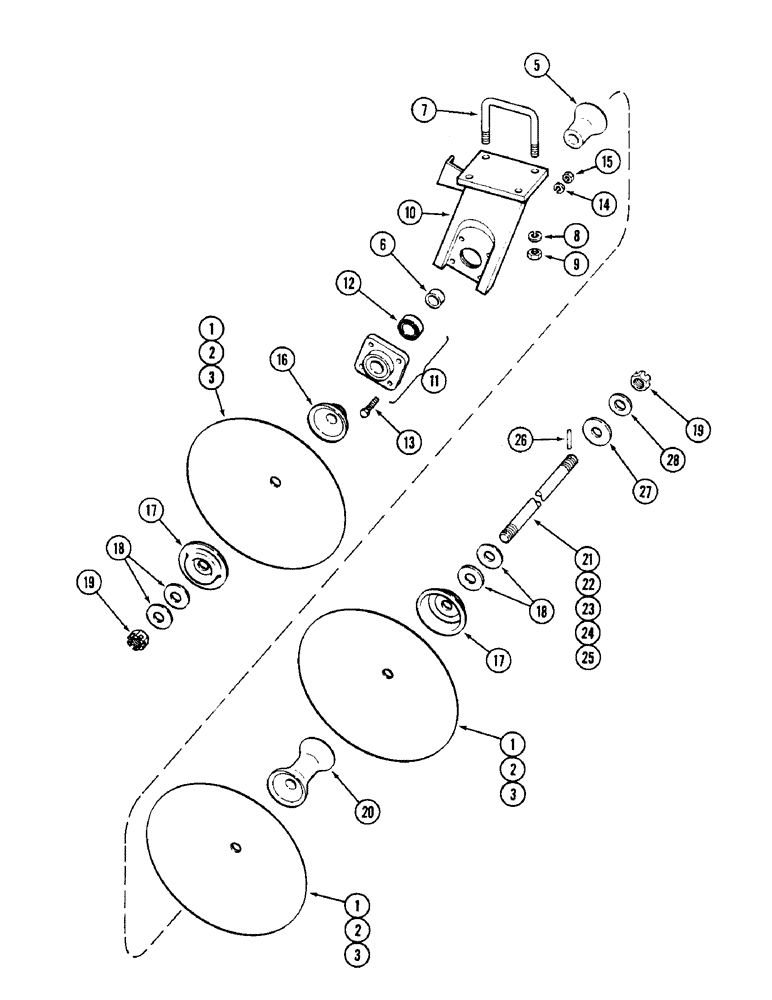

Запчасти Case IH DOT B (090) - FRONT RIGHT WING GANG, 17 THROUGH 31 FOOT (5.2 THROUGH 9.5 M)

1

T55813

BLADE

- disk 22 x 1/4" (558.8 x 6.4 MM) solid

1шт.

2

T55816

BLADE

- disk 24 x 1/4" (609.6 x 6.4 MM) solid

1шт.

3

T55814

BLADE

- disk 20 x 1/4" (508.0 x 6.4 MM) solid

1шт.

5

T55807

SPOOL

- half rear bearing 17 and 20 foot (5.2 and 6.1 M)

2шт.

5

T55807

SPOOL

- half rear bearing 23, 25 and 28 foot (7.0 x 7.6 and 8.5 M)

3шт.

5

T55807

SPOOL

- half rear bearing 31 foot (9.5 M)

4шт.

6

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing 17 and 20 foot (5.2 and 6.1 M)

2шт.

6

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing 23, 25 and 28 foot (7.0, 7.6 and 8.5 M)

3шт.

6

T54896

BUSHING,38.61mm ID x 45.09mm OD x 30.18mm L

- gang bearing 31 foot (9.5 M)

4шт.

7

T54958

BOLT

U-BOLT (Two per bearing stand)

1шт.

8

192-29

LOCK WASHER,7/8"

(2 per u-bolt) 7/8"

1шт.

9

129-109

NUT,7/8"-9, G5

(Two per u-bolt) 7/8"-9, G5

1шт.

10

T55772

STAND - bearing 17 and 20 foot (5.2 and 6.1 M)

2шт.

10

T55772

STAND - bearing 23, 25 and 28 foot (7.0, 7.5 and 8.5 M)

3шт.

10

T55772

STAND - bearing 31 foot (9.5 M)

4шт.

11

T55805

BEARING ASSY

BEARING ASSEMBLY - gang 17 and 20 foot (5.2 and 6.1 M)

2шт.

11

T55805

BEARING ASSY

BEARING ASSEMBLY - gang 23, 25 and 28 foot (7.0, 7.6 and 8.5 M)

3шт.

11

T55805

BEARING ASSY

BEARING ASSEBMLY - gang 31 foot (9.5 M)

4шт.

12

T54897

FLANGED BEARING,45.09mm ID x 90mm OD x 30.16mm W

BEARING

1шт.

13

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4 per bearing Hex, 1/2"-13 x 2", G5

1шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

16

T55806

SPOOL

- half front bearing 17 and 20 foot (5.2 and 6.1 M)

2шт.

16

T55806

SPOOL

- half front bearing 23, 25 and 28 foot (7.0, 7.6 and 8.5 M)

3шт.

16

T55806

SPOOL

- half front bearing 31 foot (9.5 M)

4шт.

17

T56698

WASHER

- spring

2шт.

18

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

4шт.

19

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC hex slotted

2шт.

20

T56068

SPOOL

1шт.

21

T56466

BOLT - gang 43-1/4" (1098.6 MM) 17 foot (5.2 M)

1шт.

22

T56465

BOLT

- gang 61-1/4" (1555.8 MM) 20 foot (6.1 M)

1шт.

23

T55476

SHAFT

BOLT - gang 79-1/2" (2019.3 MM) 23 and 25 foot (7.0 and 7.6 M)

1шт.

24

T55826

BOLT

- gang 97-3/4" (2482.9 MM) 28 foot (8.5 M)

1шт.

25

T55480

SHAFT

BOLT - gang 116" (2946.4 MM) 31 foot (9.5 M)

1шт.

26

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

2шт.

27

T54884

WASHER

- 4 x 1-9/16 x 3/8"

1шт.

28

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

1шт.
