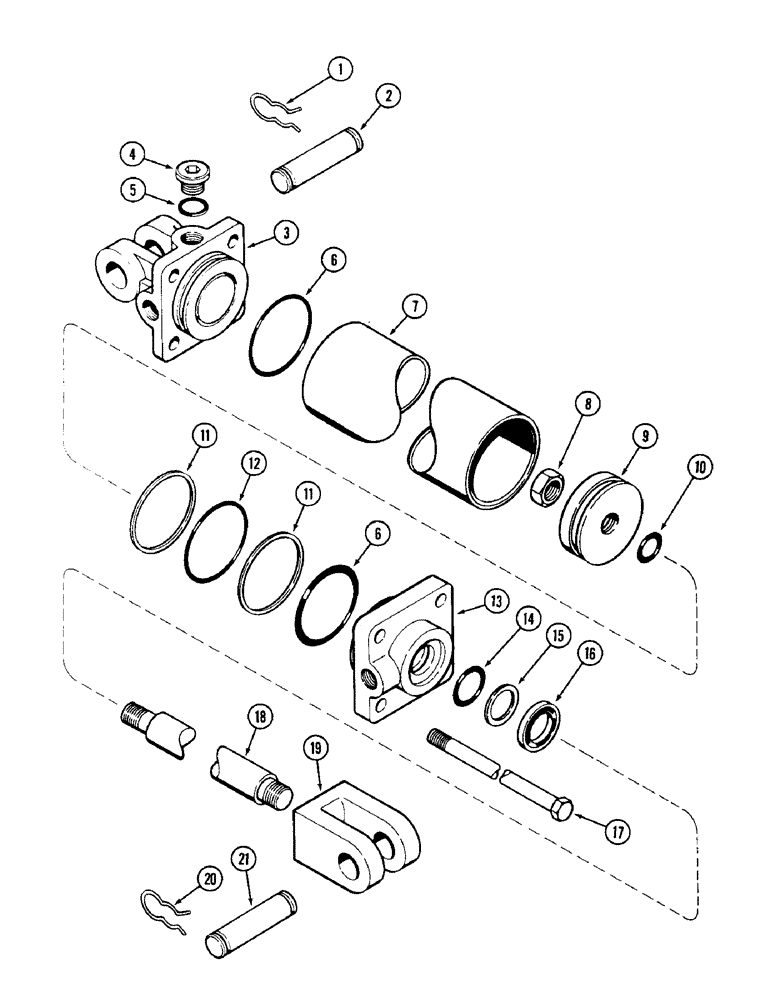

Запчасти Case IH DOT B (064) - T55833 CYLINDER

T55833

CYLINDER - complete 4 x 24" (101.6 x 609.6 MM)

2шт.

1

T52926

CLIP

2шт.

2

T53058

PIN

- clevis

1шт.

3

T55889

BASE - cylinder

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy Hex Soc, 3/4"-16 ORB

1шт.

6

T52928

O-RING

- 3-41/64 x 3-15/64 x 7/32" (92.5 x 82.2 x 5.6 MM)

2шт.

Part of Seal Kit, P/N T63265

1шт.

7

T52919

TUBE - cylinder

1шт.

8

131-1194

LOCK NUT,1 1/4"-12, GA

NUT - piston rod 1-1/4" NF

1шт.

9

T52922

PISTON

1шт.

10

A59066

O-RING,1.239" ID x 1.379" OD

- 1-3/8 x 1-1/4 x 1/16" (34.9 x 31.8 x 1.6 MM)

1шт.

Part of Seal Kit, P/N T63265

1шт.

11

A23535

OIL SEAL

SEAL - backup

2шт.

Part of Seal Kit, P/N T63265

1шт.

12

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- 3-7/8 x 3-1/2 x 3/16" (98.4 x 88.9 x 4.8 MM)

1шт.

Part of Seal Kit, P/N T63265

1шт.

13

T55890

HEAD - cylinder

1шт.

14

A31183

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- 2-1/8 x 1-3/4 x 3/16" (54.0 x 44.5 x 4.8 MM)

1шт.

Part of Seal Kit, P/N T63265

1шт.

15

T52933

WASHER

SEAL - backup

1шт.

Part of Seal Kit, P/N T63265

1шт.

16

T52934

WIPER SEAL

SEAL - wiper

1шт.

Part of Seal Kit, P/N T63265

1шт.

17

T52924

ROD - tie

4шт.

18

T52918

ROD - piston

1шт.

19

T55891

CLEVIS ASSEMBLY

1шт.

20

T55894

CLIP

2шт.

21

T55893

PIN - clevis

1шт.

T63265

KIT

SEAL KIT, Includes: ref. nos. 6, 10, 11, 12, 14, 15, 16

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.
