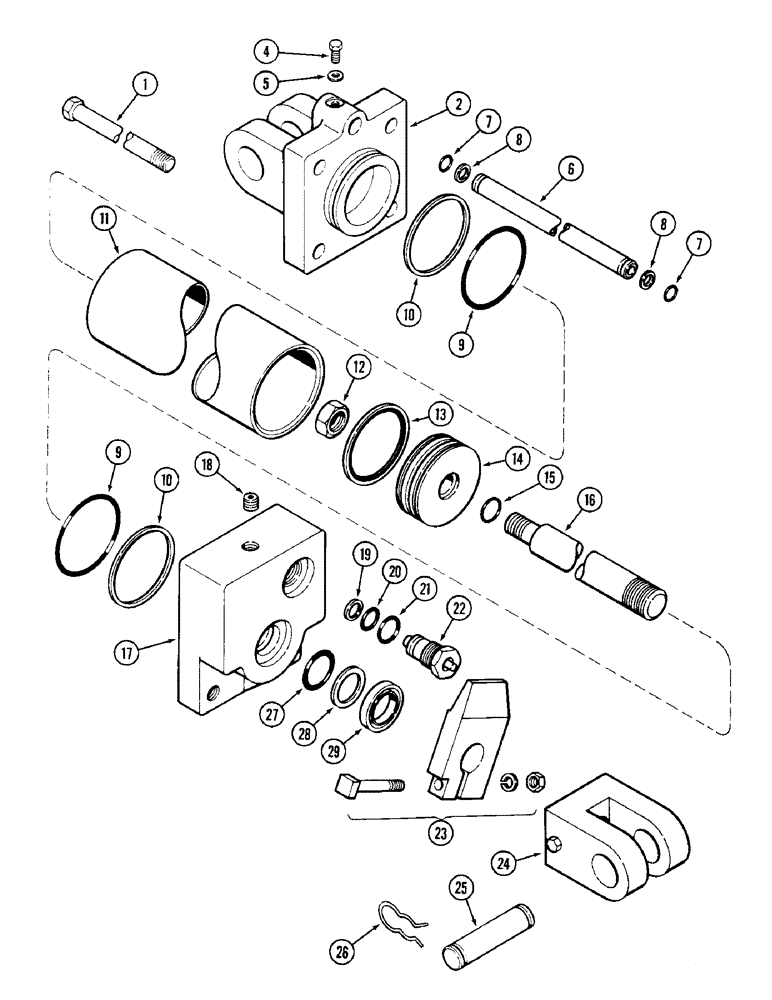

Запчасти Case IH DOT B (062) - T57292 CYLINDER
№
Артикул
Название
Примечание
Количество
T57292
CYLINDER - complete 4 x 16" (101.6 x 406.4 MM)
1шт.
1
T57333
ROD - tie
4шт.
2
T56858
BASE - cylinder
1шт.
4
113-6
BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd
1шт.
5
195-401
SEALING WASHER,3/8"
WASHER - sealing 3/8"
1шт.
6
T57338
TUBE
- manifold
1шт.
7
T56862
O-RING
- 5/8 x 1/2 x 1/16" (15.9 x 12.7 x 1.6 MM)
2шт.
Part of Seal Kit, P/N T63332
1шт.
8
T56869
WASHER
- backup
2шт.
Part of Seal Kit, P/N T63332
1шт.
9
T56867
O-RING
- 3-7/8 x 3-5/8 x 1/8" (98.4 x 92.1 x 3.2 MM)
2шт.
Part of Seal Kit, P/N T63332
1шт.
10
T56875
WASHER
- backup
2шт.
Part of Seal Kit, P/N T63332
1шт.
11
T57337
TUBE
- cylinder
1шт.
12
131-1174
LOCK NUT,1 1/4"-14, GA
NUT - lock 1" - 14
1шт.
13
T56879
SEAL
1шт.
Part of Seal Kit, P/N T63332
1шт.
14
T57334
PISTON
1шт.
15
R15365
O-RING,0.989" ID x 1.129" OD x 0.07"
- 1-1/8 x 1 x 1/16" (28.6 x 25.4 x 1.6 MM)
1шт.
Part of Seal Kit, P/N T63332
1шт.
16
T57336
ROD - piston
1шт.
17
T57361
GLAND
1шт.
18
221-1844
PLUG,Hex Soc, 1/2"-14
- pipe 1/2"
1шт.
19
T56870
WASHER
- backup
1шт.
Part of Seal Kit, P/N T63332
1шт.
20
A17526
O-RING,0.614" ID x 0.754" OD x 0.7"
- 3/4 x 5/8 x 1/16" (19.1 x 15.9 x 1.6 MM)
1шт.
Part of Seal Kit, P/N T63332
1шт.
21
T56868
O-RING
- 15/16 x 49/64 x 3/32" (23.8 x 19.5 x 2.4 MM)
1шт.
Part of Seal Kit, P/N T63332
1шт.
22
T56860
VALVE
ASSEMBLY
1шт.
23
T56853
PLATE
ASSEMBLY - striker
1шт.
24
T56854
CLEVIS
ASSEMBLY
1шт.
25
T57301
PIN - clevis
2шт.
26
136-251
HAIR PIN COTTER,Int, 7/16" x .177"
PIN, SPLIT (COTTER), Int, 7/16" x .177"
4шт.
27
A31183
O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro
- 2-1/8 x 1-3/4 x 3/16" (54.0 x 44.5 x 4.8 MM)
1шт.
Part of Seal Kit, P/N T63332
1шт.
28
T52933
WASHER
- backup
1шт.
Part of Seal Kit, P/N T63332
1шт.
29
T52934
WIPER SEAL
WIPER
1шт.
Part of Seal Kit, P/N T63332
1шт.
T63332
KIT
SEAL KIT, Includes: ref. nos. 7, 8, 9, 10, 13, 15, 19, 20, 21, 27, 28, 29
1шт.
Выбрано товаров: 42
