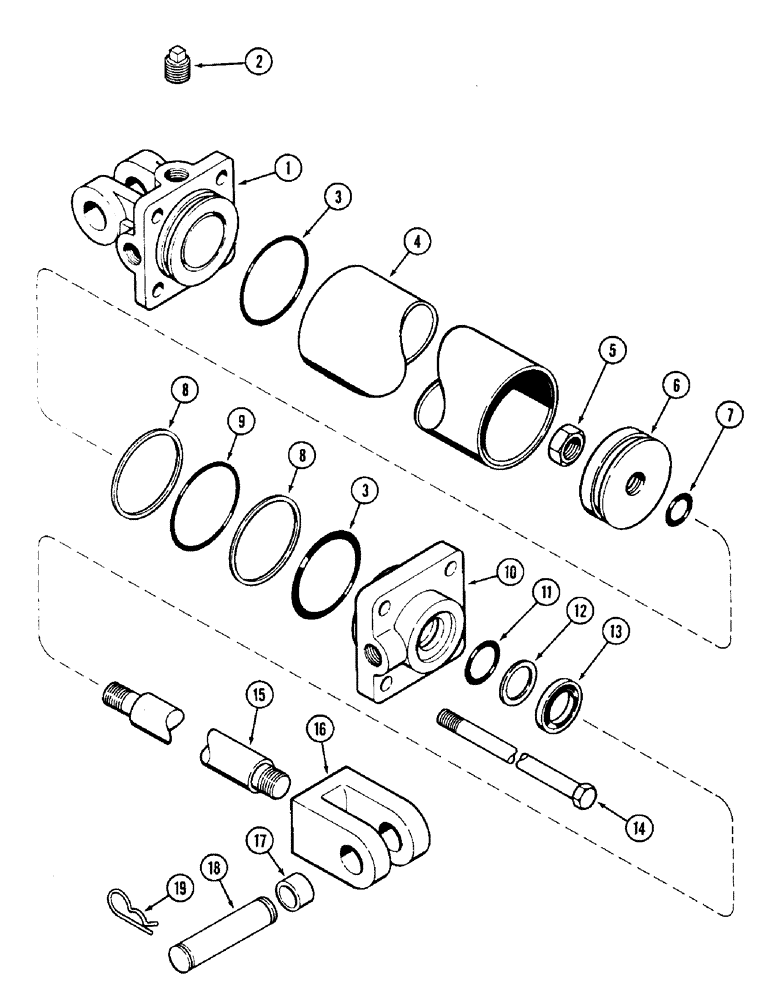

Запчасти Case IH DOT B (060) - T57291 CYLINDER

T57291

CYLINDER - complete 4 x 16" (101.6 x 406.4 MM)

1шт.

1

T57295

END

BASE - cylinder

1шт.

2

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG - pipe 3/4"

1шт.

3

T52928

O-RING

- 3-41/64 x 3-15/64 x 7/32" (92.5 x 82.2 x 5.6 MM)

2шт.

Part of Seal Kit, P/N T63331

1шт.

4

T57294

TUBE - cylinder

1шт.

5

131-1194

LOCK NUT,1 1/4"-12, GA

NUT - piston rod 1-1/4" NF

1шт.

6

T52922

PISTON

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

- 1-3/8 x 1-1/4 x 1/16" (34.9 x 31.8 x 1.6 MM)

1шт.

Part of Seal Kit, P/N T63331

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

Part of Seal Kit, P/N T63331

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of Seal Kit, P/N T63331

1шт.

10

T57296

GLAND

HEAD - cylinder

1шт.

11

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- 2-3/8 x 2 x 3/16" (60.3 x 50.8 x 4.8 MM)

1шт.

Part of Seal Kit, P/N T63331

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

Part of Seal Kit, P/N T63331

1шт.

13

T56145

SEAL - wiper

1шт.

Part of Seal Kit, P/N T63331

1шт.

14

T57298

ROD - tie

4шт.

15

T57293

ROD - piston

1шт.

16

T57297

CLEVIS ASSEMBLY

1шт.

17

T57302

BUSHING

2шт.

18

T57301

PIN - clevis

2шт.

19

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

4шт.

T63331

KIT

SEAL KIT, Includes: ref. nos. 3, 7, 8, 9, 11, 12, 13

1шт.
