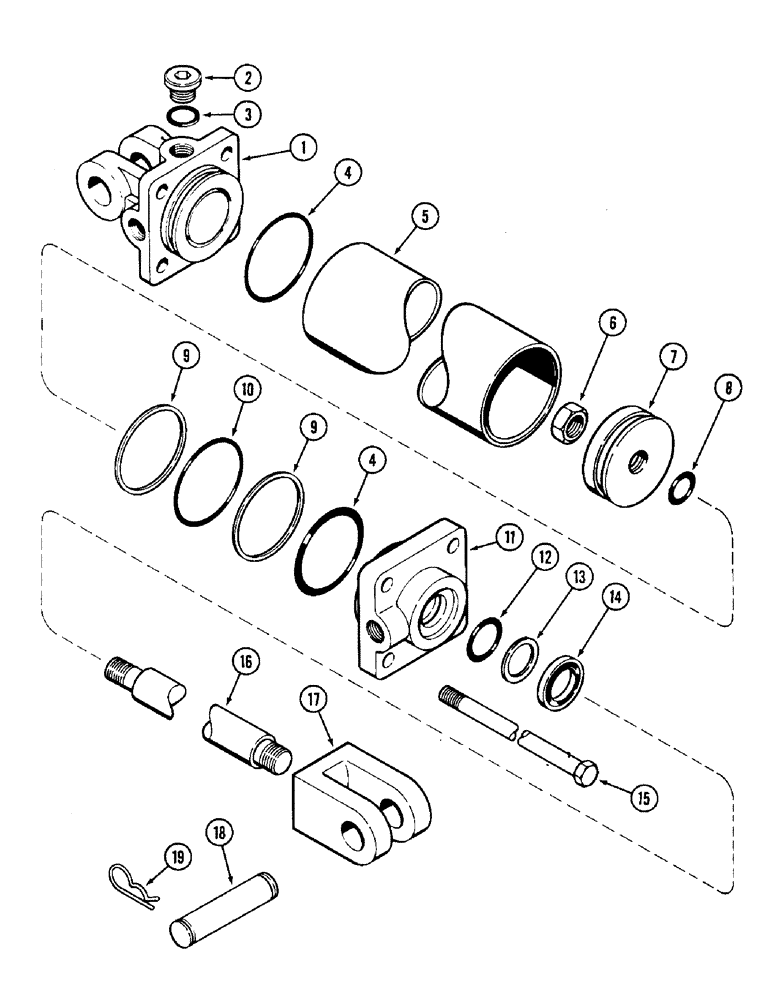

Запчасти Case IH DOT B (058) - T56704 CYLINDER

T56704

CYLINDER ASSY.

CYLINDER - complete 3-1/2 x 16" (88.9 x 406.4 MM)

2шт.

1

T57330

BASE

- cylinder

1шт.

2

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Assy Hex Soc, 3/4"-16 ORB

1шт.

4

T55583

O-RING

2шт.

Part of Seal Kit, P/N T63288

1шт.

5

T56706

TUBE - cylinder

1шт.

6

131-1172

LOCK NUT,3/4"-16, GA

NUT - piston rod 3/4" NF

1шт.

7

T55581

PISTON

1шт.

8

D32114

O-RING,0.75" ID x 0.875" OD

- 7/8 x 3/4 x 1/16" (22.2 x 19.1 x 1.6 MM)

1шт.

Part of Seal Kit, P/N T63288

1шт.

9

H752030

RING

WASHER - backup

2шт.

Part of Seal Kit, P/N T63288

1шт.

10

T32305

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

- 3-1/2 x 3-1/8 x 3/16" (88.9 x 79.4 x 4.8 MM)

1шт.

Part of Seal Kit, P/N T63288

1шт.

11

T57331

GLAND

HEAD - cylinder

1шт.

12

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 MM)

1шт.

Part of Seal Kit, P/N T63288

1шт.

13

H745687

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63288

1шт.

14

T52945

WIPER SEAL

SEAL - wiper

1шт.

Part of Seal Kit, P/N T63288

1шт.

15

T53062

ROD - tie

4шт.

16

T56705

ROD

- piston

1шт.

17

T56709

CLEVIS

ASSEMBLY

1шт.

18

T55893

PIN - clevis

2шт.

18

T56697

PIN

CLIP

4шт.

T63288

KIT

SEAL KIT, Includes: ref. nos. 4, 8, 9, 10, 12, 13, 14

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.
