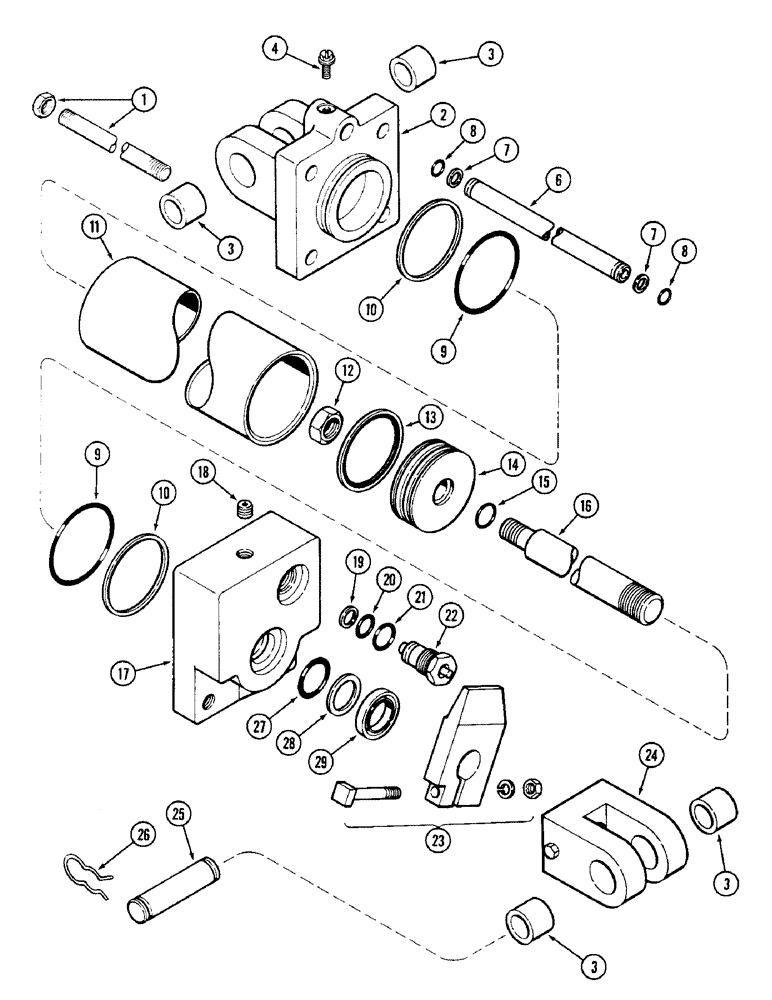

Запчасти Case IH DOT B (056) - T57290 CYLINDER

T57290

CYLINDER

- complete 4 x 8" (101.6 x 203.2 MM)

1шт.

1

T57575

ROD - tie with nut

4шт.

2

T56858

BASE - cylinder

1шт.

3

T57302

BUSHING

4шт.

4

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

BOLT - 1/4 x 1" NC hex with washer

1шт.

6

T56839

TUBE - manifold

1шт.

7

T56862

O-RING

- 5/8 x 1/2 x 1/16" (15.9 x 12.7 x 1.6 MM)

2шт.

Part of Seal Kit, P/N T63330

1шт.

8

T56869

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63330

1шт.

9

T56867

O-RING

- 3-7/8 x 3-5/8 x 1/8" (98.4 x 92.1 x 3.2 MM)

2шт.

Part of Seal Kit, P/N T63330

1шт.

10

T56875

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63330

1шт.

11

T57574

TUBE - cylinder

1шт.

12

131-1174

LOCK NUT,1 1/4"-14, GA

NUT - piston rod 1" - 14

1шт.

13

T56879

SEAL

1шт.

Part of Seal Kit, P/N T63330

1шт.

14

T57334

PISTON

1шт.

15

T15365

O-RING - 1-1/8 x 1 x 1/16" (28.6 x 25.4 x 1.6 MM)

1шт.

Part of Seal Kit, P/N T63330

1шт.

16

T56837

ROD - piston

1шт.

17

T56852

GLAND

1шт.

18

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

19

T56870

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63330

1шт.

20

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 3/4 x 5/8 x 1/16" (19.1 x 15.9 x 1.6 MM)

1шт.

Part of Seal Kit, P/N T63330

1шт.

21

T56868

O-RING

- 15/16 x 49/64 x 3/32" (23.8 x 19.5 x 2.4 MM)

1шт.

Part of Seal Kit, P/N T63330

1шт.

22

T56860

VALVE

ASSEMBLY

1шт.

23

T56853

PLATE

ASSEMBLY - striker

1шт.

24

T55891

CLEVIS ASSEMBLY

1шт.

25

T52925

PIN

- clevis

2шт.

26

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

PIN, SPLIT (COTTER), Int, 7/16" x .177"

4шт.

27

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-3/4 x 1-1/2 x 1/8" (44.5 x 38.1 x 3.2 MM)

1шт.

Part of Seal Kit, P/N T63330

1шт.

28

H745687

WASHER

- backup

1шт.

Part of Seal Kit, P/N T63330

1шт.

29

T52945

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63330

1шт.

T63330

SEAL KIT, Includes: ref. nos. 7, 8, 9, 10, 13, 15, 19, 20, 21, 27, 28, 29

1шт.
