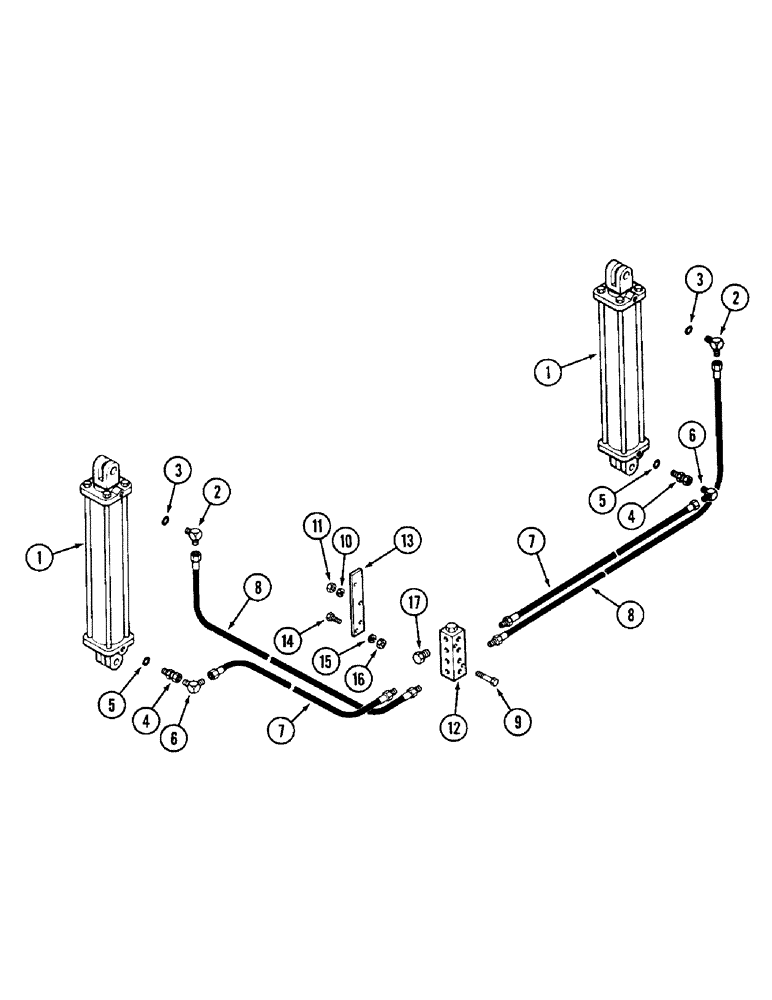

Запчасти Case IH DOT B (052) - WING LIFT ASSEMBLY, 25, 28 AND 31 FOOT (7.6, 8.5 AND 9.5 M)

1

T55833

CYLINDER - wing lift (See page 64)

2шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 3/8 x 1/2"

2шт.

4

T56153

RESTRICTOR ASSEMBLY - 1/16" (1.6 MM)

2шт.

6

T56378

ELBOW - 3/8 x 1/2" (9.5 x 12.7 MM)

2шт.

7

T56386

HOSE - 3/8 x 54" (9.5 x 1371.6 MM)

2шт.

8

T56383

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

2шт.

9

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

T56498

MANIFOLD

-without relief valve

1шт.

13

T55768

BRACKET - manifold mounting

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.
