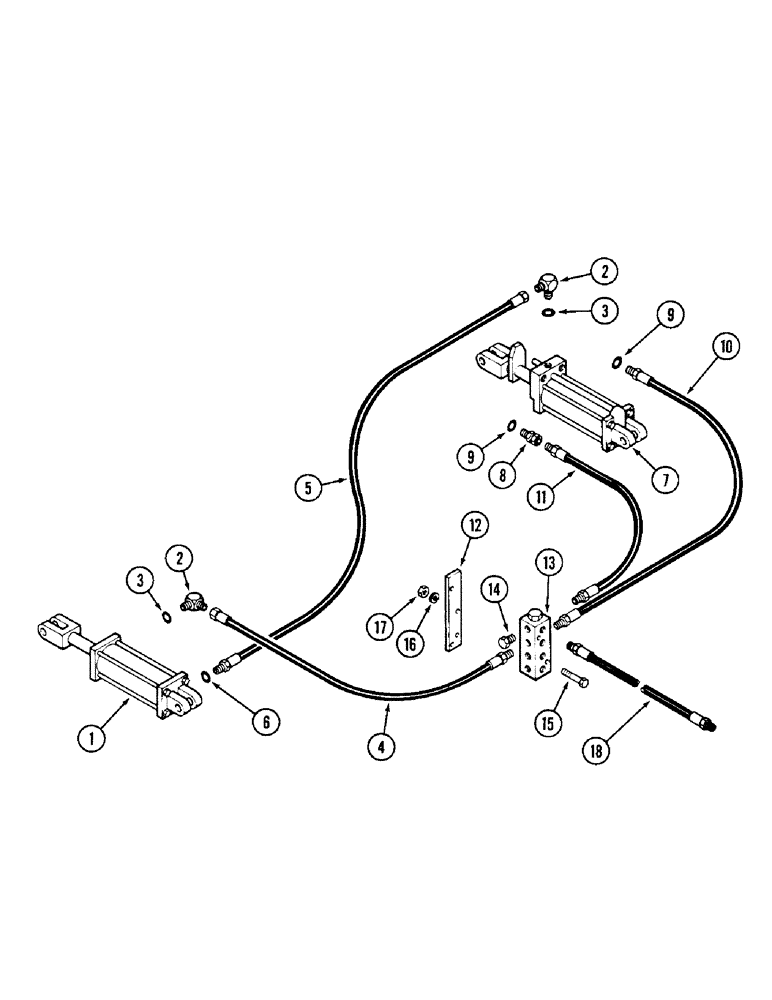

Запчасти Case IH DOT B (048) - DEPTH CONTROL ASSEMBLY, 25, 28 AND 31 FOOT (7.6, 8.5 AND 9.5 M)

1

T57291

CYLINDER - depth control (See page 60)

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 3/8 x 1/2"

2шт.

4

T56383

HOSE - 3/8 X 66" (9.5 X 1676.4 MM)

1шт.

5

T57284

HOSE - 3/8 x 93" (9.5 x 2362.2 MM)

1шт.

7

T57292

CYLINDER - depth control (See page 62)

1шт.

8

T55517

RESTRICTOR ASSEMBLY - 3/16" (4.8 MM)

1шт.

10

T57289

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

1шт.

11

T57288

HOSE - 3/8 x 66" (9.5 x 1676.4 MM)

1шт.

12

T55768

BRACKET - manifold mounting

1шт.

13

T56498

MANIFOLD

- without relief valve

1шт.

14

218-774

PLUG,9/16"-18, 37 Degree

- 3/8"

1шт.

15

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

16

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

18

T55837

HOSE - 1/2 x 120" (12.7 x 3048.0 MM)

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20./6 x 15.9 x 2.4 MM)

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.
