(044) - DEPTH CONTROL ASSEMBLY, 11 AND 14 FOOT (3.4 AND 4.3 M)

Запчасти Case IH DOT B (044) - DEPTH CONTROL ASSEMBLY, 11 AND 14 FOOT (3.4 AND 4.3 M)

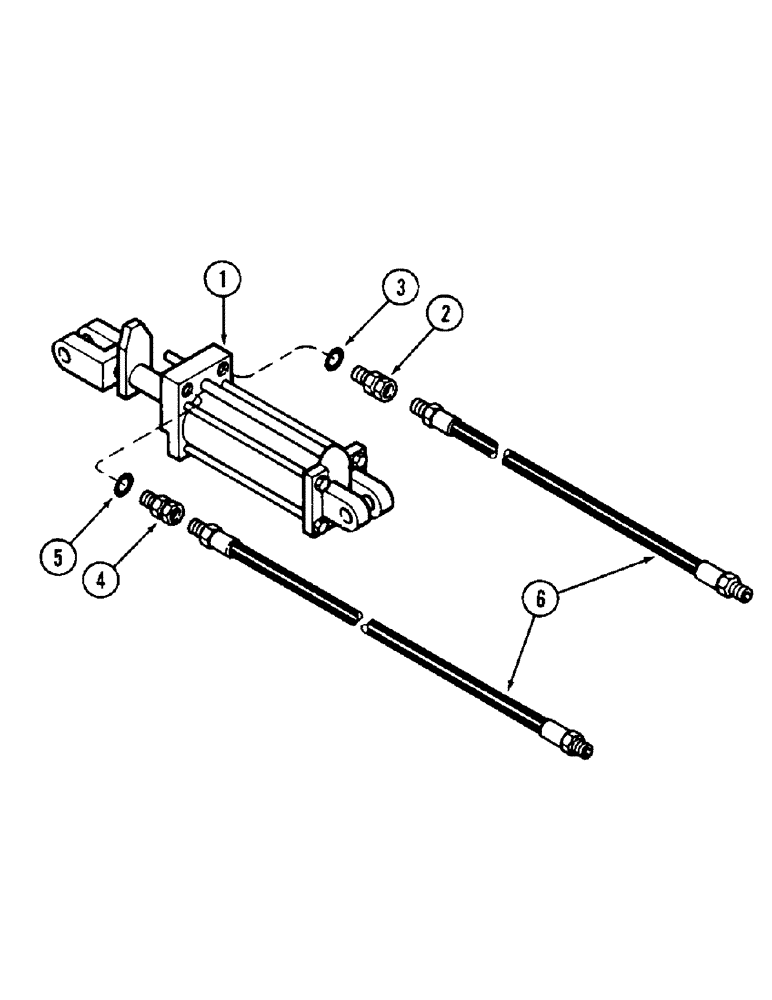

Схема запчастей Case IH DOT B - (044) - DEPTH CONTROL ASSEMBLY, 11 AND 14 FOOT (3.4 AND 4.3 M)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

T57290

CYLINDER

- depth control (See page 56)

1шт.

2

T56150

ADAPTER ASSEMBLY - swivel 3/4" (19.1 MM)

1шт.

4

T55517

RESTRICTOR ASSEMBLY - 3/16" (4.l8 MM)

1шт.

6

T57285

HOSE - 1/2 X 174" (12.7 X 4419.6 MM)

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 13/16 x 5/8 x 3/32" (20.6 x 15.9 x 2.4 MM)

1шт.
