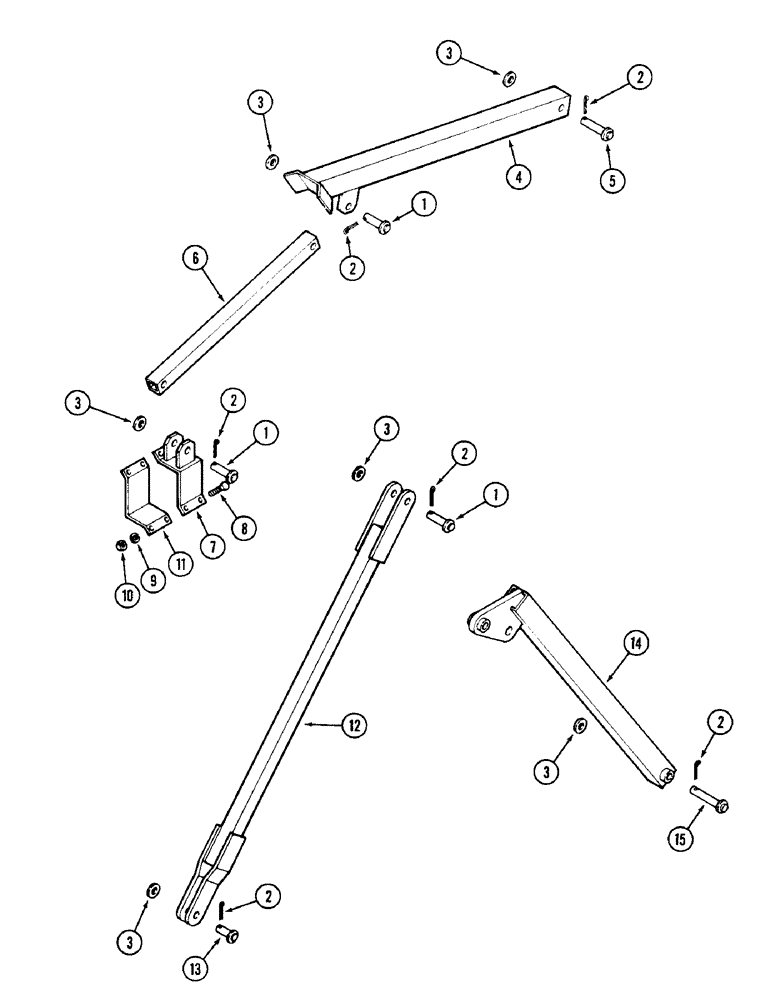

Запчасти Case IH DOT B (042) - FOLDING LINKAGE, 25, 28 AND 31 FOOT (7.6, 8.5 AND 9.5 M)

1

T55755

PIN - 1 x 4" (25.4 x 101.6 MM)

6шт.

2

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

12шт.

3

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

12шт.

4

T55756

ARM - wing rest support (28 and 31 foot only) (8.5 and 9.5 M)

2шт.

5

T54734

PIN

- 1 x 5-1/4" (25.4 x 133.4 MM) 28 and 31 foot only (8.5 and 9.5 M)

2шт.

6

T55757

TUBE - wing rest linkage (28 and 31 foot only) (8.5 and 9.5 M) 2" OD x 32" L

2шт.

7

T55764

BAND - wing rest mounting (28 and 31 foot only) (8.5 and 9.5 M)

2шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

11

T55766

TUBE - mounting band (28 and 31 foot only) (8.5 and 9.5 M)

2шт.

12

T54886

TUBE - linkage 2" OD x 63.312" L

2шт.

13

T56421

PIN - 1 x 3" (25.4 x 76.2 MM)

2шт.

14

T55752

ARM - wing lift

2шт.

15

T54952

PIN

- 1 x 6-3/8" (25.4 x 161.9 M)

2шт.
