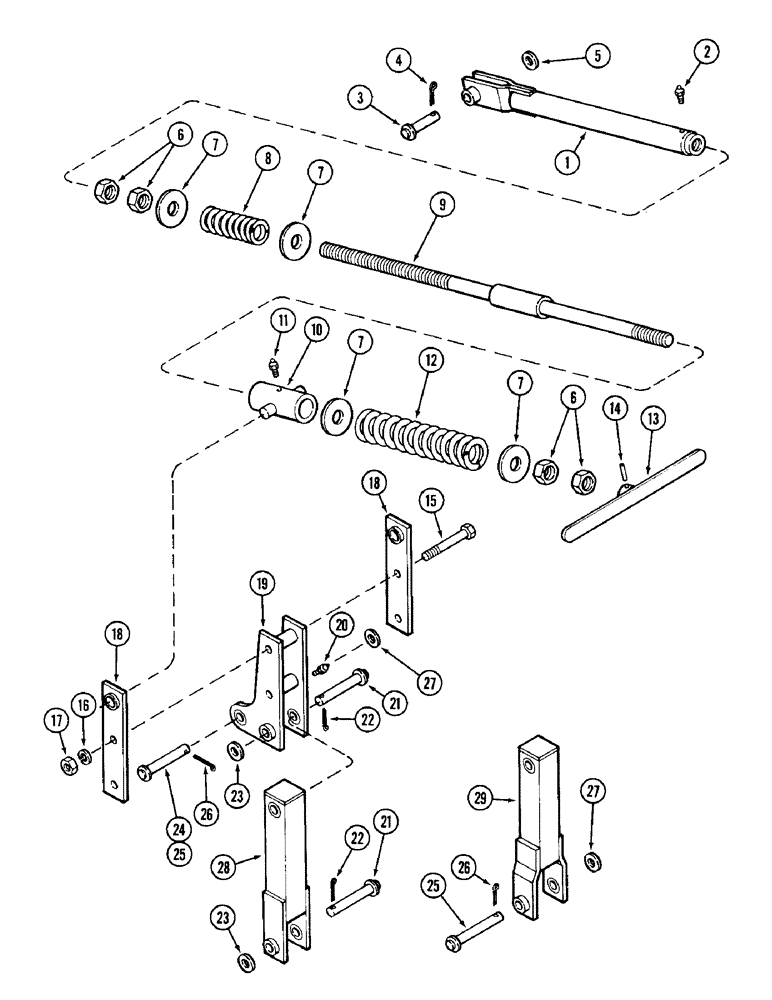

Запчасти Case IH DOT B (038) - LEVELING ASSEMBLY, 17 THROUGH 31 FOOT (5.2 THROUGH 9.5 M)

1

T55750

TUBE - leveling adjustment 2.067" ID x 2.375" OD x 35.75" L

1шт.

2

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

3

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

1шт.

4

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

5

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

6

129-154

NUT,Jam, 1 1/2"-6, G5

- 1-1/2" NC hex

4шт.

7

T54884

WASHER

STOP - spring

4шт.

8

T54883

SPRING - leveling screw

1шт.

9

T54880

SCREW - leveling

1шт.

10

T54881

TRUNNION

1шт.

11

219-2

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

1шт.

12

T54882

SPRING - leveling screw

1шт.

13

T54879

HANDLE - leveling

1шт.

14

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

15

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

16

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17

129-108

NUT,3/4"-10, G5

2шт.

18

T54941

STRAP - trunnion

2шт.

19

T54939

PLATE - leveling pivot

1шт.

20

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

21

T55753

PIN

- 1 x 6" (25.4 x 152.4 MM) 17, 20 and 23 foot (5.2, 6.1 and 7.0 M)

2шт.

21

T55753

PIN

- 1 x 6" (25.4 x 152.4 MM) 25, 28 and 31 foot (7.6, 8.5 and 9.5 M)

1шт.

22

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

23

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

3шт.

24

T57405

PIN - 1 x 6-3/4" (25.4 x 171.5 MM) 17, 20 and 23 foot (5.2, 6.1 and 7.0 M)

1шт.

25

T54749

PIN 1 x 7-1/2" (25.4 x 190.5 MM) 25, 28 and 31 foot (7.6, 8.5 and 9.5 M)

2шт.

26

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

27

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

3шт.

28

T54940

CONNECTOR - leveling 17, 20 and 23 foot (5.2, 6.1 and 7.0 M)

1шт.

29

T57404

CONNECTOR - leveling 25, 28 and 31 foot (7.6, 8.5 and 9.5 M)

1шт.
