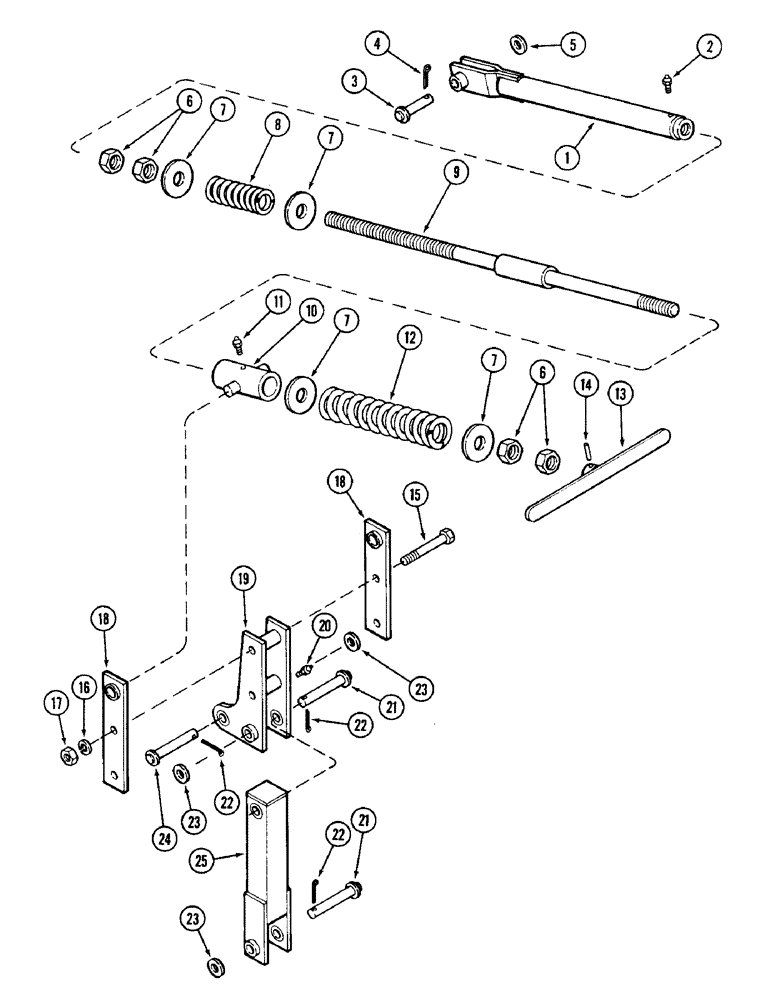

Запчасти Case IH DOT B (036) - LEVELING ASSEMBLY, 11 AND 14 FOOT (3.4 AND 4.3 M)

1

T56532

TUBE - leveling adjustment 1.005" ID x 1.625" OD x 40.75" L

1шт.

2

219-4

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/4"

1шт.

3

T54750

PIN

- 1 x 4-3/8" (25.4 x 111.1 MM)

1шт.

4

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

1шт.

5

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

1шт.

6

129-152

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" NC hex

4шт.

7

T54740

STOP - spring

4шт.

8

T54742

SPRING - leveling screw

1шт.

9

T54738

SCREW

- leveling

1шт.

10

T54744

TRUNNION

1шт.

11

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

12

T54743

SPRING

- leveling screw

1шт.

13

T54741

HANDLE - leveling

1шт.

14

138-159

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

15

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

2шт.

16

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

17

129-108

NUT,3/4"-10, G5

2шт.

18

T56535

STRAP - trunnion

2шт.

19

T54939

PLATE - leveling pivot

1шт.

20

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

21

T55753

PIN

- 1 x 6" (25.4 X 152.4 MM)

2шт.

22

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

3шт.

23

195-111

WASHER,1"

- 2-1/2 x 1-1/16" x 8 gauge

3шт.

24

T57405

PIN - 1 x 6-3/4" (25.4 x 171.5 MM)

1шт.

25

T54940

CONNECTOR - leveling

1шт.
