Запчасти Case IH DOT B (032) - WING AXLES AND WHEELS, 25 FOOT (7.6 M)

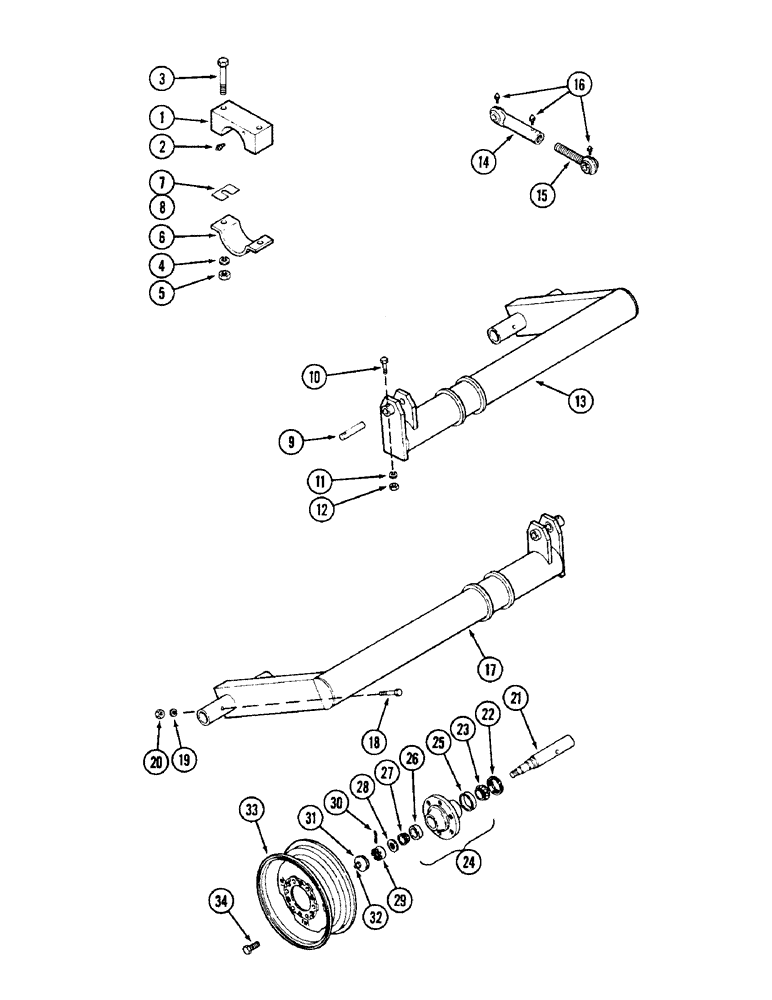

Схема запчастей Case IH DOT B - (032) - WING AXLES AND WHEELS, 25 FOOT (7.6 M)

Артикул

Название

Примечание

Количество

1

T54948

BEARING

- axle 4-1/2" (114.3 MM) diameter

4шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8"

4шт.

3

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

8шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

129-108

NUT,3/4"-10, G5

8шт.

6

T54949

CLAMP - axle bearing 4-1/2" (114.3 MM) diameter

4шт.

7

T56224

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 12 gauge

1шт.

8

T56225

SHIM

- 2-1/16 x 3-7/8" (52.4 x 98.4 MM) x 16 gauge

1шт.

9

T55792

PIN

- 1 x 4-3/4" (25.4 x 120.7 MM)

2шт.

10

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

T55742

AXLE - left wing

1шт.

14

T56589

CONNECTOR, ELEC

CONNECTOR - swivel

2шт.

15

T54944

ROD

- swivel connector

2шт.

16

219-14

LUBE NIPPLE,1/4" NPTF

6шт.

17

T55743

AXLE - right wing

1шт.

18

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

19

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

21

T56597

SPINDLE

2шт.

22

T23709

SEAL

- grease

2шт.

23

G57452

ROLLER BEARING

CONE - bearing inner 1-3/8" ID (34.9 MM)

2шт.

24

T27113

HUB

ASSEMBLY - with cups

2шт.

25

G57451

BEARING, CUP

CUP - bearing inner 2-9/16" OD (65.1 MM)

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing outer 2-5/16" OD (58.7 MM)

1шт.

27

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing outer 1-1/4" ID (31.8 MM)

2шт.

28

195-50

WASHER,7/8" x 2" x .165"

- 2 x 15/16" x 8 gauge

2шт.

29

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

2шт.

30

132-77

COTTER PIN,5/32" x 2"

PIN - cotter 5/32 x 1-1/4"

2шт.

31

T54729

DUST CAP

CAP ASSEMBLY - dust

2шт.

32

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

33

A57879

RIM

WHEEL - 15 x 8" (381.0 x 203.2 MM)

2шт.

34

A29912

BOLT

BOLT - hub

12шт.

Выбрано товаров: 34
