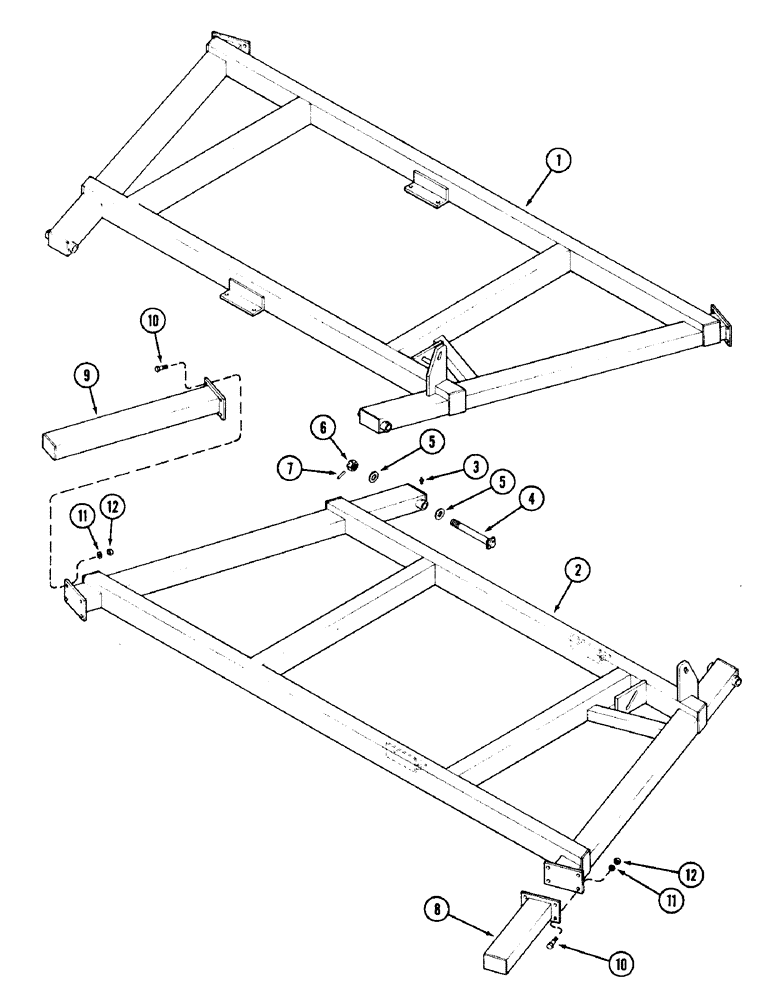

Запчасти Case IH DOT B (028) - WING FRAMES AND EXTENSIONS, 31 FOOT (9.5 M)

1

T55804

FRAME - left wing

1шт.

2

T55803

FRAME - right wing

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

8шт.

4

T55765

PIN - wing hinge

4шт.

5

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

8шт.

6

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC hex slotted

4шт.

7

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.

8

T57523

EXTENSION - wing 27" (685.8 MM)

2шт.

9

T57524

EXTENSION - wing 43" (1092.2 MM)

2шт.

10

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

16шт.

11

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

16шт.

12

129-108

NUT,3/4"-10, G5

16шт.
