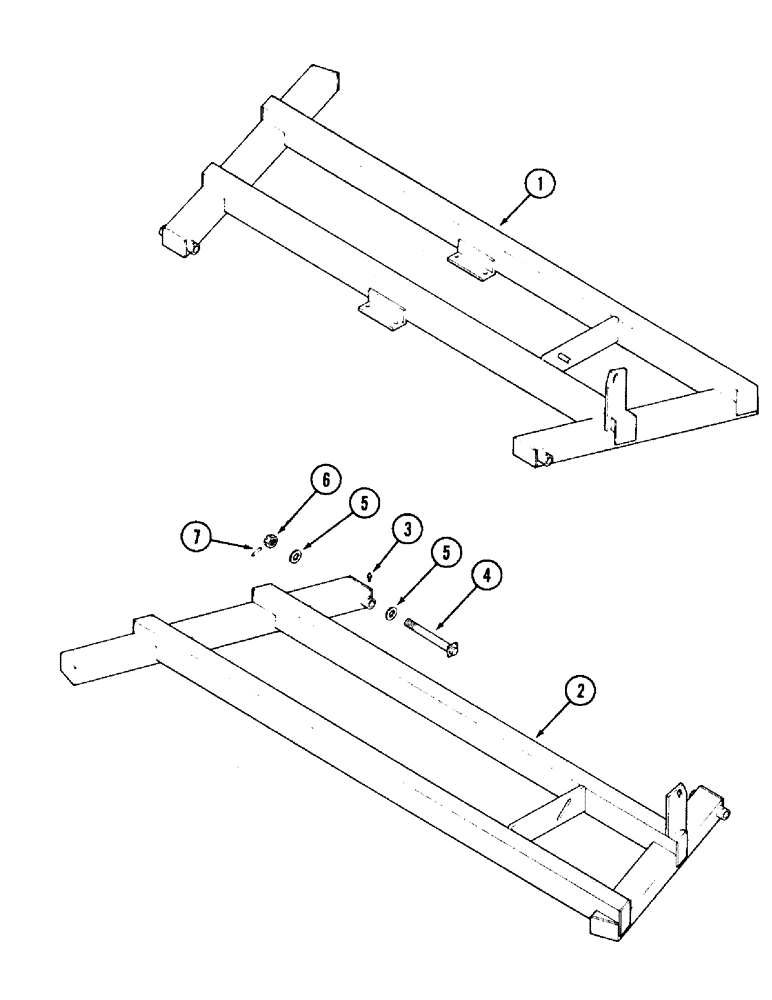

Запчасти Case IH DOT B (020) - WING FRAMES, 17 FOOT (5.2 M)

1

T57504

FRAME - left wing

1шт.

2

T57503

FRAME - right wing

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

8шт.

4

T55765

PIN - hinge

4шт.

5

95-24

WASHER,1 1/2" x 3 1/2" x .18"

- 3-1/2 x 1-5/8" x 7 gauge

8шт.

6

25-3024

SLOTTED NUT,1 1/2"-6, G5, Hvy

NUT - 1-1/2" NC hex slotted

4шт.

7

138-162

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

4шт.
