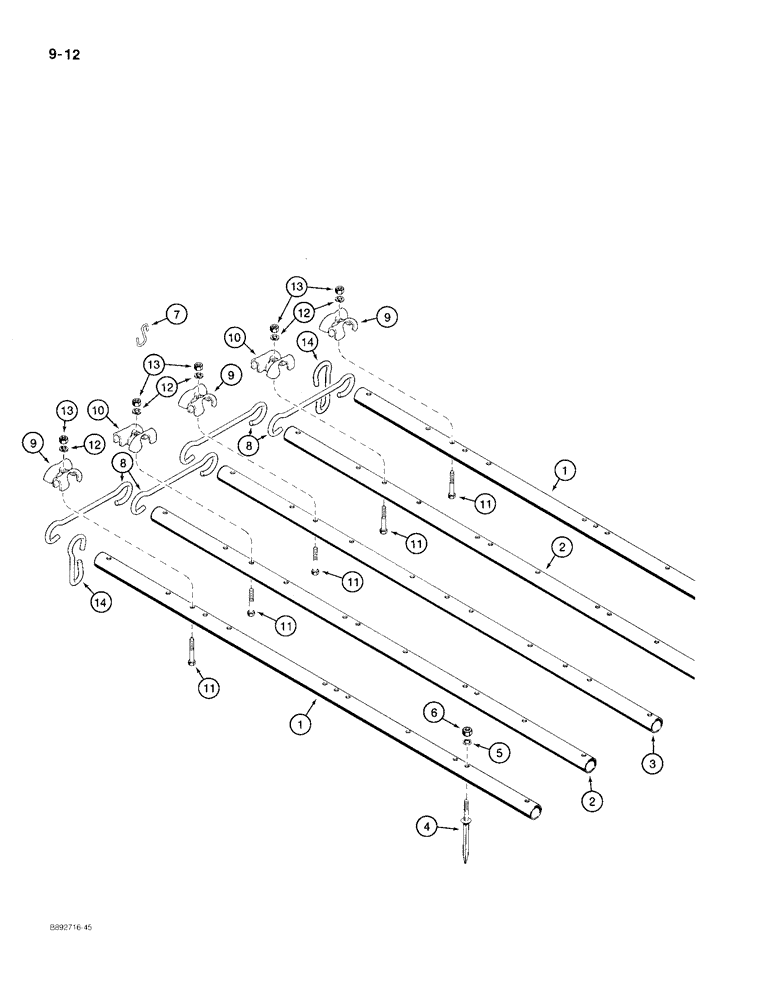

Запчасти Case IH 9 (9-12) - PEG TOOTH HARROW SECTION, FLEXIBLE OPEN-END TYPE

1

62919C1

TUBE

BAR - peg tooth, number 1 and 5

2шт.

2

63060C1

TUBE,1.66" OD, 65.5" Length

BAR - peg tooth, number 2 and 4

2шт.

3

63061C1

TUBE

BAR - peg tooth, number 3

1шт.

4

63062C1

TOOTH

- peg

40шт.

5

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

40шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

40шт.

7

PO12729

HOOK

- S type

2шт.

8

63076C1

LINK

- connecting, tooth bar

8шт.

9

63078C1

CLAMP

BRACKET - connecting link, used with tooth bars

1шт.

number 1, 3 and 5

6шт.

10

63079C1

CLAMP

BRACKET - connecting link, used with tooth bars

1шт.

number 2 and 4

4шт.

11

113-471

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 2

- hex, 1/2 NC x 3-1/4 inch

10шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

14

63077C1

HOOK

- attaching, Serial Range: section-drawbar

4шт.
