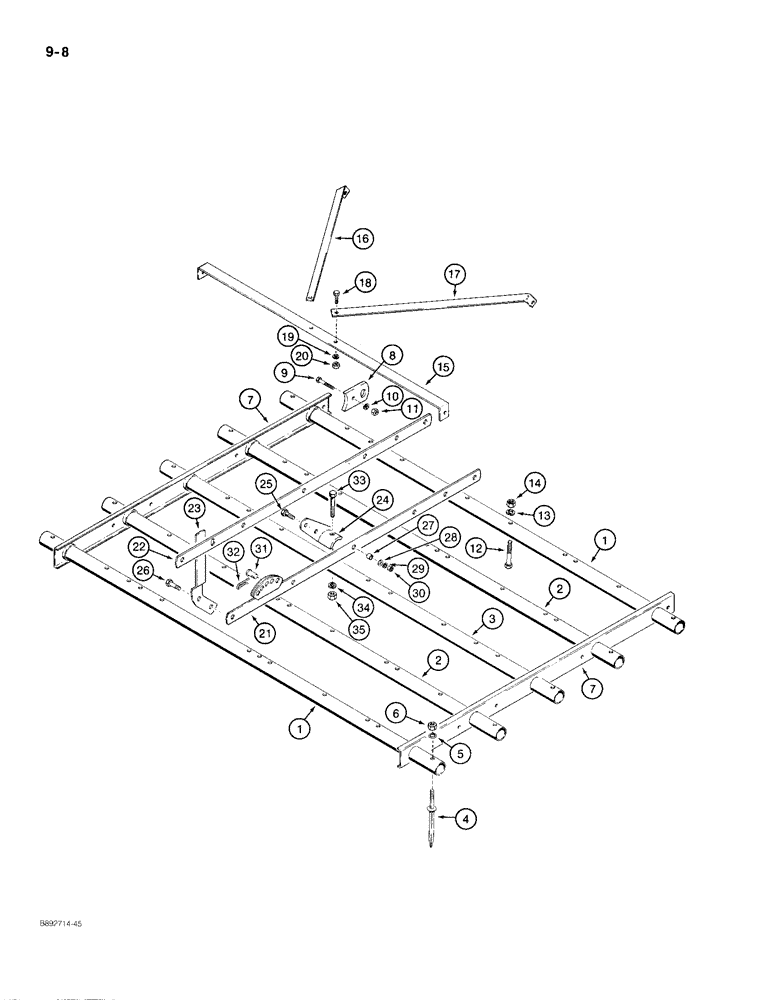

Запчасти Case IH 9 (9-08) - PEG TOOTH HARROW SECTION, RIGID OPEN-END TYPE

1

62919C1

TUBE

BAR - peg tooth, number 1 and 5

2шт.

2

63060C1

TUBE,1.66" OD, 65.5" Length

BAR - peg tooth, number 2 and 4

2шт.

3

63061C1

TUBE

BAR - peg tooth, number 3

1шт.

4

63062C1

TOOTH

- peg

40шт.

5

138549

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

40шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

40шт.

7

63063C1

RAIL

SUPPORT - tooth bar

2шт.

8

63064C1

BAR

PLATE - mounting, Serial Range: section-drawbar

2шт.

9

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

10

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

129-104

NUT,7/16"-14, G5

2шт.

12

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

6шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

15

63065C1

SUPPORT

BRACE - frame, cross

1шт.

16

63066C1

BRACE

- diagonal, left-hand

1шт.

17

63067C1

BRACE

- diagonal, right-hand

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

19

492-11038

LOCK WASHER,3/8"

6шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

21

63068C1

BAR

LEVER - adjustment, lower

1шт.

22

63069C1

BAR

LEVER - adjustment, upper

1шт.

23

63071C1

HANDLE

- adjustment lever

1шт.

24

63070C1

SUPPORT

BRACKET - levers to tooth bars

5шт.

25

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

8шт.

26

113-311

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

2шт.

27

353232R1

SPACER,3/8" Pipe x .344

- pivot, lever, 3/8 inch long

10шт.

28

118776

WASHER

- flat, 15/32 x 1 x 1/16 inch

10шт.

29

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

30

129-104

NUT,7/16"-14, G5

10шт.

31

21658R1

HEADED PIN,7/16" x 1"

PIN - clevis, 7/16 x 1 inch

1шт.

32

480523R1

HAIR PIN COTTER

9/64" dia

1шт.

33

424-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 2

- hex, 1/2 NC x 2-3/4 inch

4шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 1/16 inch) 3/8"

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
