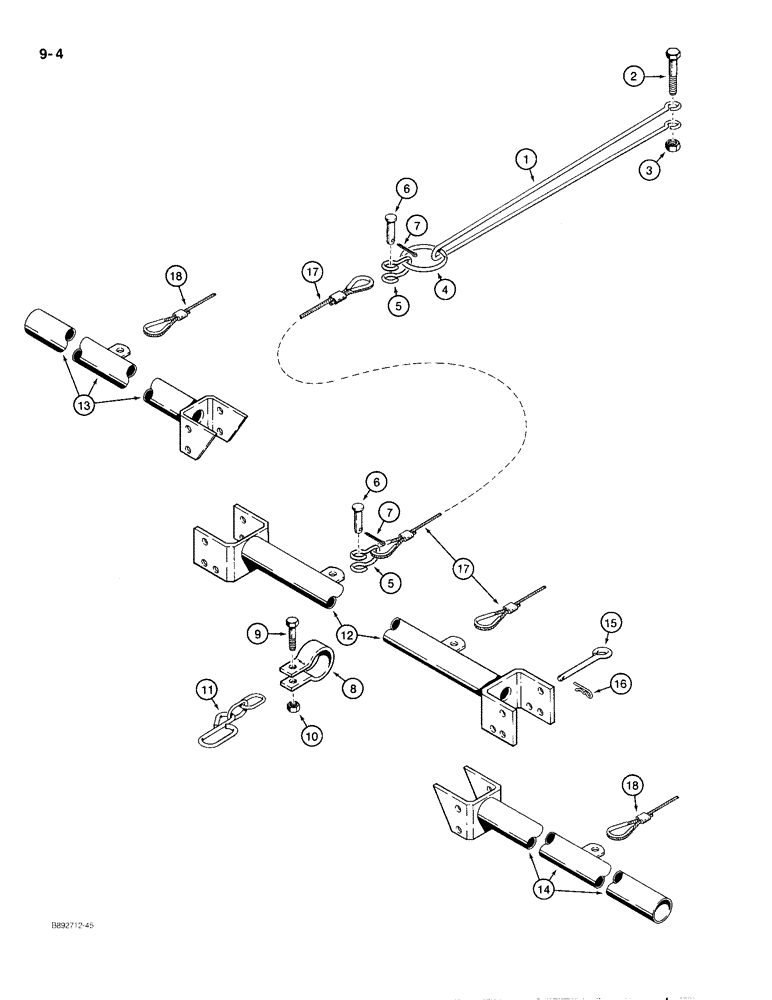

Запчасти Case IH 9 (9-04) - DRAWBAR, USED WITH THREE PEG TOOTH HARROW SECTIONS, 18 FOOT WIDE HARROW

1

63089C1

CLEVIS

- hitch

1шт.

2

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

1шт.

3

425-1010

NUT,5/8"-11, G5

1шт.

4

63140C1

RING

- hitch, Serial Range: clevis-cables

1шт.

5

453967R1

CLEVIS

- cables to ring and drawbar

8шт.

6

P014029

PIN - clevis, 7/16 x 2 inch

8шт.

7

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

8шт.

8

63148C1

CLAMP

- pull chain and, Serial Range: hook-drawbar

6шт.

9

113-350

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch

6шт.

10

129-104

NUT,7/16"-14, G5

6шт.

11

516982R91

CHAIN (AG)

CHAIN - pull, includes hook

6шт.

12

63085C1

TUBE

DRAWBAR - center, peg tooth section

1шт.

13

63087C1

TUBE

DRAWBAR - left-hand wing, peg tooth section

1шт.

14

63088C1

TUBE

DRAWBAR - right-hand wing, peg tooth section

1шт.

15

547856R1

PIN

- hinge, wing drawbar

4шт.

16

480523R1

HAIR PIN COTTER

4шт.

17

63081C1

CABLE

- 60-15/16 inch long, ring to center drawbar

2шт.

18

63083C1

CABLE

- 98-11/16 inch long, ring to wing drawbars

2шт.
