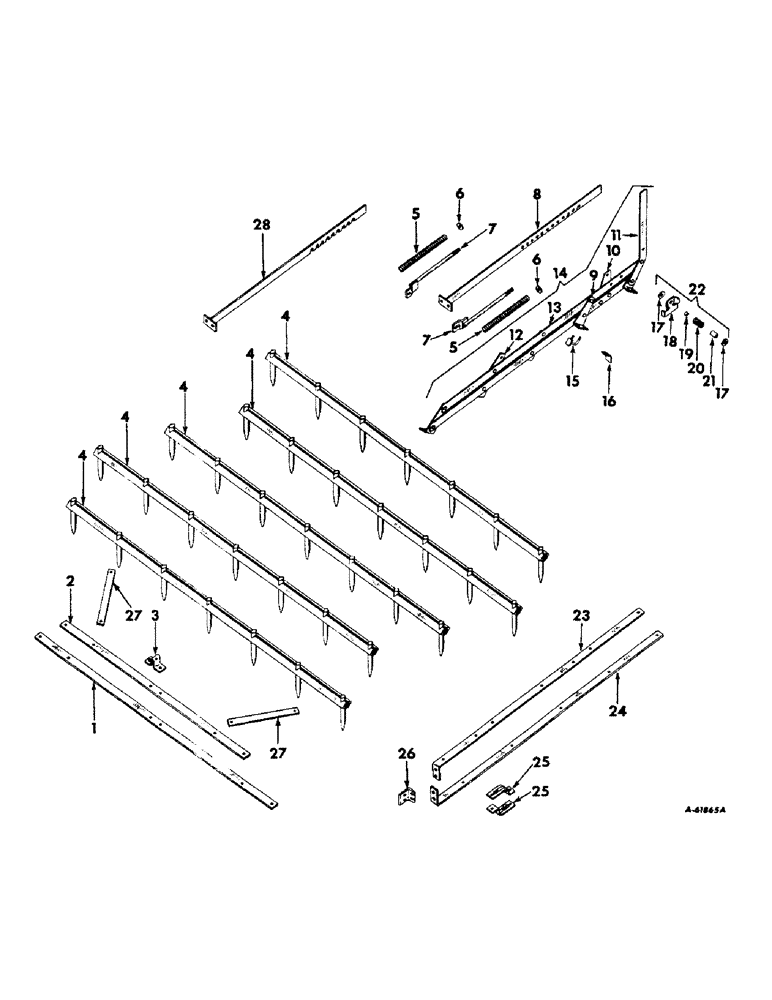

Запчасти Case IH 7 (A-10) - RIGID SECTIONS, OPEN END WITH LEVER

1

463542R2

BRACE, cross, 6 ft. 9 in.

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

463541R1

BRACE, cross 5 ft. 3 in. and 6 ft.

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

3

463540R1

GUIDE, cross plate

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 C-Z hex hd mach

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

459737R91

BAR ASSY, 5 ft. 3 in.

5шт.

4

459740R91

BAR ASSY, 6 ft

5шт.

4

459743R91

BAR ASSY, 6 ft. 9 in.

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

2шт.

5

V368

SPRING

control rod

2шт.

6

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

7

460315R11

ROD, spring control

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21967R1

PIN, 1/2 x 1 C-Z std-hd

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

8

465125R11

QUADRANT, 1961 and since

1шт.

9

463046R1

STANDARD, set bar, Serial Range: 1958-1961

1шт.

10

460314R1

BRACKET, quadrant, Serial Range: 1958-1961

1шт.

10

464880R11

BRACKET ASSY, quadrant, 1961 and since

1шт.

22143R1

RIVET, 3/8 x 7/8 b-hd

2шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

11

463048R1

LEVER, set, Serial Range: 1958-1961

1шт.

12

463047R1

STANDARD, quadrant, Serial Range: 1958-1961

1шт.

13

459762R1

BAR, set, Serial Range: 1958-1961

1шт.

14

463045R91

BAR ASSY, set, Serial Range: 1958-1961

1шт.

14

465124R91

BAR ASSY, set 1961 and since

1шт.

520175R1

CLIP

PIN, quick attachable cot

1шт.

457623R1

RIVET, 3/8 x 53/64 special step

8шт.

463049R1

RIVET, 3/8 f-hd step

2шт.

15

463050R11

BOLT

U-BOLT W/ NUTS AND WASHERS

5шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

16

459976R1

SPACER, set bar standard

5шт.

17

Q379

WASHER, 11/32 x 1 x 16 ga, Serial Range: 1958-1961

1шт.

18

460851R1

LOCK, quadrant, Serial Range: 1958-1961

1шт.

19

460852R1

SPACER, locking device, Serial Range: 1958-1961

1шт.

20

51349D

SPRING

quandrant lock, 6 coils, Serial Range: 1958-1961

1шт.

21

Y14493

SPACER

locking, Serial Range: 1958-1961

1шт.

22

460850R91

DEVICE ASSY, locking, Serial Range: 1958-1961

1шт.

BOLT, 5/16 x 2 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

23

463537R1

FRAME, upper side, Serial Range: 1958-1961

2шт.

23

464184R1

FRAME, side upper, 1961 and since

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

8шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

24

463538R1

FRAME, side lower, Serial Range: 1958-1961

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

464185R1

FRAME, side lower, 1961 and since

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

463539R1

BEARING, tooth bar

20шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

10шт.

19007

BOLT, 5/16-18 x 1 no 3 plow

10шт.

120376

NUT,5/16"-18, G5

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

26

464186R1

ANGLE, draw, 1961 and since

2шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16-18 x 1-1/4 C-Z hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

464875R1

BRACE, diagonal, 1961 and since

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 C-Z hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

460316R11

QUADRANT, Serial Range: 1958-1960

1шт.

464038R1

LINK, straight chain hitch, 1958, Serial Range: -1961

1шт.

459842R1

CLEVIS, drawbar, Serial Range: 1958-1961

2шт.

BOLT, 1/2 x 2-3/4 hex-hd mach

2шт.

455388R1

NUT

1/2 lock

2шт.
