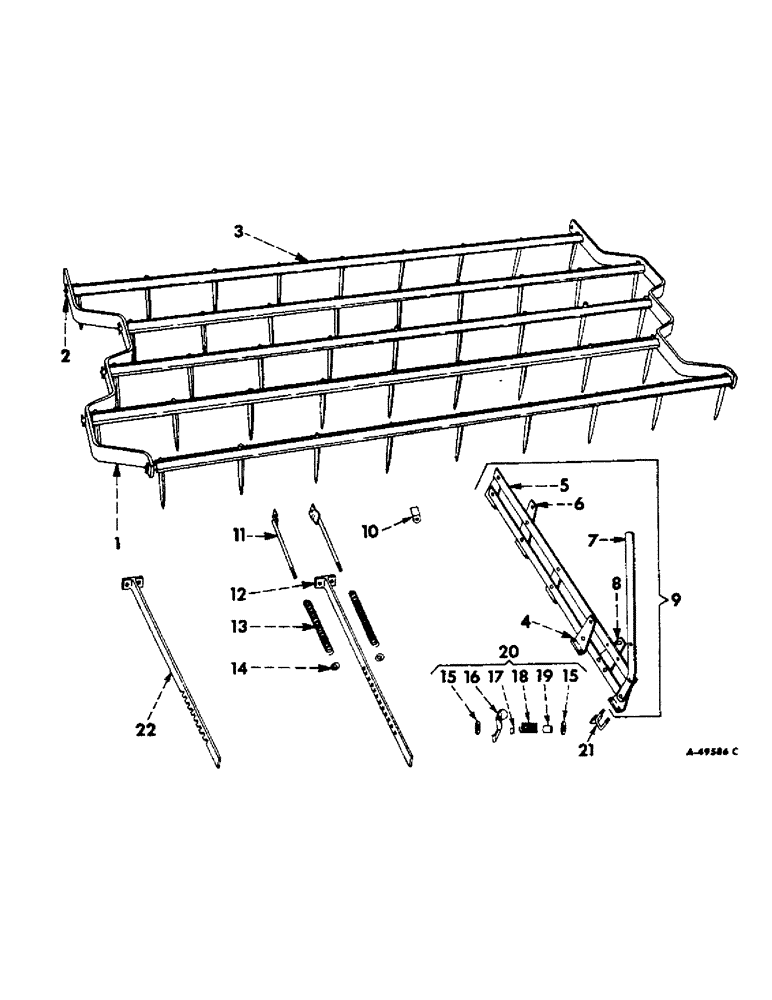

Запчасти Case IH 7 (A-07) - RIGID SECTIONS

1

459744R2

RAIL, side

2шт.

2

460309R1

COTTER PIN

PIN, 11/64 x 1-1/8 quick-attachable cotter

10шт.

3

459734R91

BAR ASSY, 5 ft. 3 in.

5шт.

3

459738R91

BAR ASSY, 6 ft.

5шт.

3

459741R91

BAR ASSY, 6 ft. 9 in.

5шт.

4

459763R1

STANDARD, set bar, Serial Range: 1959-1960

5шт.

4

463046R1

STANDARD, set bar, Serial Range: 1960-1961

4шт.

BOLT, 7/16 x 3

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

615063R1

WASHER

15/32 x 7/8 x 16 ga

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

5шт.

5

459762R1

BAR, set, Serial Range: 1958-1961

2шт.

6

460319R1

PIVOT, quadrant, Serial Range: 1958-1960

1шт.

6

463047R1

STANDARD, quadrant, Serial Range: 1960-1961

1шт.

7

459761R1

LEVER, set, Serial Range: 1958-1960

1шт.

7

463048R1

LEVER, set, Serial Range: 1960-1961

1шт.

8

460314R1

BRACKET, quadrant adjusting, Serial Range: 1958-1961

1шт.

BOLT, 5/16 x 2 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

22143R1

RIVET, 3/8 x 7/8 C-Z b-hd anl

2шт.

8

464880R11

BRACKET ASSY, quadrant, 1961 and since

1шт.

520175R1

CLIP

PIN, quick- attachable cotter

1шт.

9

459760R92

BAR

set, Serial Range: 1958-1960

1шт.

459758R1

RIVET, 3/8 x 3/4 f-hd special step

6шт.

459759R1

RIVET, 3/8 x 1 f-hd special step

4шт.

9

463045R91

BAR, set, 1960

1шт.

457623R1

RIVET, 3/8 x 53/64 step set bar

8шт.

463049R1

RIVET, 3/8 x 1-5/64 step set bar

2шт.

9

465124R91

BAR, set, 1961 and since

1шт.

457623R1

RIVET, 3/8 x 53/64 step set bar

8шт.

463049R1

RIVET, 3/8 x 1-5/64 step set bar

2шт.

22143R1

RIVET, 3/8 x 7/8 C-Z b-hd anl

2шт.

10

459976R1

SPACER, set bar standard

5шт.

11

460315R11

ROD ASSY, spring control

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

21967R1

PIN, 1/2 x 1 C-Z std-hd

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

12

465125R11

QUADRANT ASSY, 1961 and since

1шт.

13

V368

SPRING

compression, 31-1/2 coils

2шт.

14

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

15

Q399

WASHER

11/32 x 1 x 16 ga, Serial Range: 1958-1961

2шт.

16

460851R1

LOCK, quadrant, Serial Range: 1958-1961

1шт.

17

Y14493

SPACER

locking device, Serial Range: 1958-1961

1шт.

18

51349D

SPRING

quadrant lock, 6 coils, Serial Range: 1958-1961

1шт.

19

460852R1

SPACER, locking device, Serial Range: 1958-1961

1шт.

20

460850R91

LOCKING ASSEMBLY, Serial Range: 1958-1961

1шт.

BOLT, 5/16 x 2 hex-hd mach

1шт.

456276R1

NUT

5/16 lock

1шт.

21

463050R11

BOLT

U-BOLT ASSY, 1960 and since

5шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

10шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

10шт.

22

460316R11

QUADRANT, Serial Range: 1958-1961

1шт.
