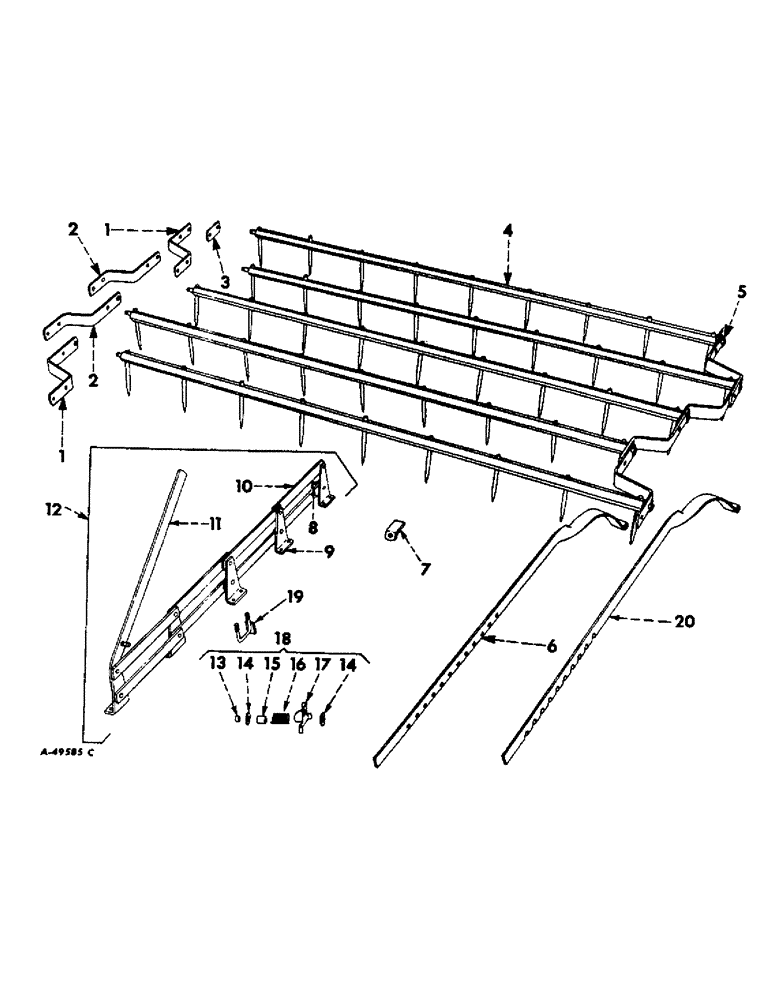

Запчасти Case IH 7 (A-06) - COMBINATION SECTIONS, RIGID-FLEXIBLE

1

459753R1

STRAP, front and rear end

4шт.

2

459752R1

STRAP, center end

4шт.

3

459751R1

LINK, draw

2шт.

4

459734R91

BAR ASSY, 5 ft. 3 in.

5шт.

4

459738R91

BAR ASSY, 6 ft.

5шт.

4

459741R91

BAR ASSY, 6 ft. 9 in.

5шт.

5

460309R1

COTTER PIN

PIN, 11/64 x 1-1/8 quick-attachable cotter

10шт.

6

465126R1

SPRING RELIEF, 1961 and since

1шт.

7

459976R1

SPACER, set bar standard

5шт.

8

463053R91

PIVOT ASSY, quadrant, 1960 and since

1шт.

8

460311R91

PIVOT ASSY, quadrant, Serial Range: 1958-1960

1шт.

463049R1

RIVET, 3/8 x 1-5/64 step set bar

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

9

459763R1

STANDARD, set bar, Serial Range: 1958-1960

5шт.

BOLT, 7/16 x 3 C-Z crg

5шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex

5шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

5шт.

WASHER, 15/32 x 7/8 x 16 ga

5шт.

9

463046R1

STANDARD, set bar, Serial Range: 1960-1961

4шт.

10

459765R1

LINK, connection, Serial Range: 1958-1961

8шт.

11

463048R1

LEVER, set, Serial Range: 1960-1961

1шт.

11

459761R1

LEVER, set, Serial Range: 1958-1960

1шт.

BOLT, 5/16 x 2 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

12

459764R92

BAR

set, Serial Range: 1958-1960

1шт.

459758R1

RIVET, 3/8 x 3/4 f-hd special step

1шт.

459759R1

RIVET, 3/8 x 1 f-hd special step

9шт.

12

463052R91

BAR, set, Serial Range: 1960-1961

1шт.

457623R1

RIVET, 3/8 X 53/64 step set bar

1шт.

463054R1

RIVET

3/8 x 1-1/16 step set bar

7шт.

12

465127R91

BAR, set, 1961 and since

1шт.

457623R1

RIVET, 3/8 x 53/64 step set bar

1шт.

463054R1

RIVET

3/8 x 1-1/16 step set bar

7шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

13

Y14493

SPACER

locking device, Serial Range: 1958-1961

1шт.

14

Q399

WASHER

11/32 x 1 x 16 ga, Serial Range: 1958-1961

2шт.

15

460852R1

SPACER, locking device, Serial Range: 1958-1961

1шт.

16

51349D

SPRING

quadrant lock, 16 coils, Serial Range: 1958-1961

1шт.

17

460851R1

LOCK, quadrant, Serial Range: 1958-1961

1шт.

18

460850R91

DEVICE ASSY, locking, Serial Range: 1958-1961

1шт.

BOLT, 5/16 x 2 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

19

463050R11

BOLT

U-BOLT ASSY, 1960 and since

5шт.

NLS

NO LONGER SERVICED

7/16-14 hex

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

20

460310R1

SPRING RELIEF, Serial Range: 1958-1961

1шт.
