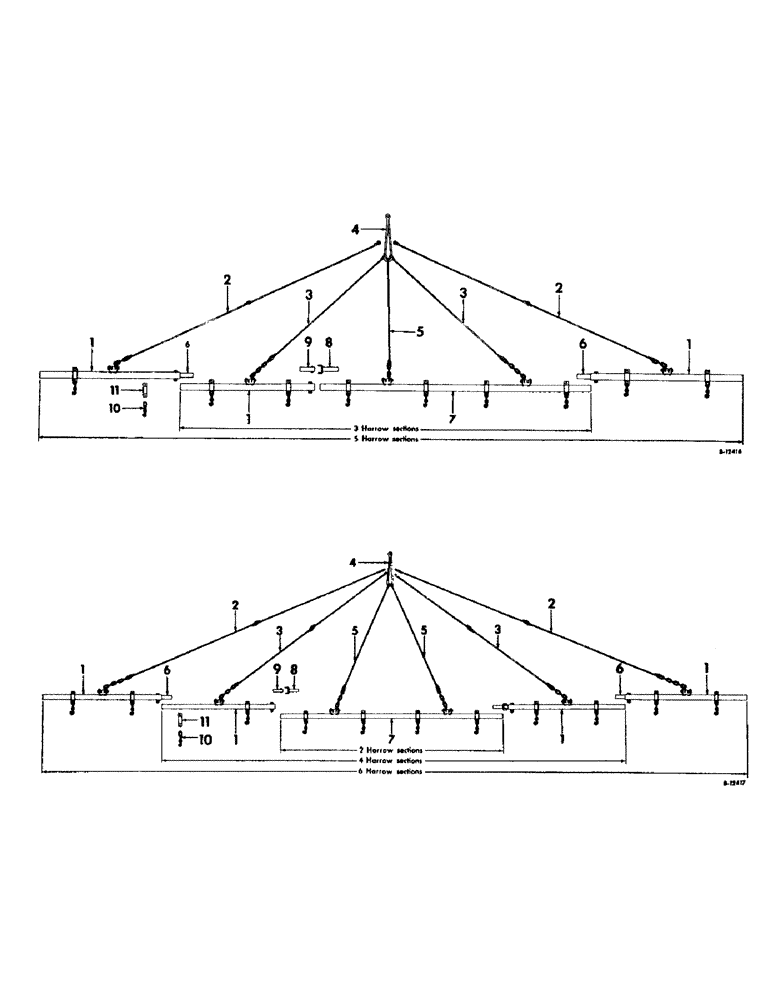

Запчасти Case IH 7 (A-04) - TUBULAR DRAWBARS, 1961 AND SINCE

1

464934R11

EXTENSION, tube drawbar, for 5 ft. 3 in., Serial Range: 1958-1962

1шт.

1

469290R91

EXTENSION, tube drawbar, for 5 ft. 3 in., 1962 and since, 1 for unit B, 2 for unit C, 3 for unit D and 4 for unit E

1шт.

1

464937R11

EXTENSION, tube drawbar, for 6 ft., Serial Range: 1958-1962

1шт.

1

469292R91

EXTENSION, tube drawbar, for 6 ft., 1962 and since, 1 for unit B, 2 for unit C, 3 for unit D, 4 for unit E

1шт.

1

464939R11

EXTENSION, tube drawbar, for 6 ft. 9 in., Serial Range: 1958-1962

1шт.

1

469291R91

EXTENSION, tube drawbar, for 6 ft. 9 in., 1962 and since, 1 for unit B, 2 for unit C

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used for unit B; 2 for units C and D; 4 unit E 1/2"-13, G5

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot, 1 used for unit B, 2 for unit C, 3 for unit D, and 4 for unit E.

1шт.

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN, 1/2 x 1-3/8 C-Z std-hd, 1 for unit B, 2 for unit C, 3 for unit D and 4 for unit E

1шт.

D3376

LARGE PIN

PIN, 1/2 x 2-3/4 dld-std-hd, 2 for units D and E

1шт.

D3376

LARGE PIN

PIN, 1/2 x 2-3/4 dld-std-hd, for6 ft., 2 for units D and 4 for unit E

1шт.

PO14926

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3-1/2 dld-std-hd, 1 for unit B, 2 for unit C, 3 for unit D and 4 for unit E

1шт.

120384

WASHER,1/2"

LOCK, , 1 for unit B, 2 for units C and D, 4 for unit E 1/2"

2шт.

WASHER, 17/32 x 1 x 16 ga, 2 for unit B, 4 for unit C, 6 for unit D and 8 for unit E

1шт.

460309R1

COTTER PIN

PIN, 11/64 x 1-1/8 quick-attachable cotter, for 5 ft. 3 in., 2 for units D and E

1шт.

460309R1

COTTER PIN

PIN, 11/64 x 1-1/8 quick-attachable cotter, for 6 ft., 2 for unit D, 4 for unit E

1шт.

2

464948R91

BAIL ASSY, for 5 ft. 3 in., 2 for unit D

1шт.

2

464949R91

BAIL ASSY, for 5 ft. 3 in., 2 for unit E

1шт.

2

464954R91

BAIL ASSY, for 6 ft., 2 for unit E

1шт.

2

464952R91

BAIL ASSY, for 6 ft., 2 for unit D

1шт.

3

464942R92

BAIL ASSY, for 5 ft. 3 in., 2 for units B and D

1шт.

3

464946R92

BAIL ASSY, for 5 ft. 3 in., 2 for units C and E

1шт.

3

464951R92

BAIL ASSY, for 6 ft., 2 for units B and D

1шт.

3

464953R91

BAIL ASSL, for 6 ft., 2 for units C and E

1шт.

3

464956R92

BAIL ASSY, for 6 ft. 9 in., 2 for unit B

1шт.

3

464953R91

BAIL ASSY, for 6 ft. 9 in., 2 for unit C

1шт.

4

464957R1

CLEVIS, 18 in., (used per harrow)

1шт.

468264

DAMPER

BOLT, 3/4-10 x 4 dld-hex-hd special

1шт.

280954

NUT,3/4"-10, G5

1шт.

21821R1

PIN, 1/8 x 1-1/2 C-2 stl s/open cot, (used per clevis)

1шт.

5

464944R92

BAIL ASSY, 1 for units B and D

1шт.

5

464940R92

BAIL ASSY, for 5 ft. 3 in. and 6 ft. 9 in., 2 for units A, C and E

1шт.

5

464942R92

BAIL ASSY, for 6 ft., 2 for units A, C and E

1шт.

6

464935R1

REINFORCEMENT, drawbar, for 5 ft. 3 in. and 6 ft., 2 for units D and E

1шт.

7

464927R11

DRAWBAR, center tube, for 5 ft. 3 in., Serial Range: 1958-1962

1шт.

7

469293R91

DRAWBAR, center tube, for 5 ft. 3 in., 1962 and since, 1 for units A, B, C, D and E

1шт.

7

464936R11

DRAWBAR, center tube, for 6 ft., Serial Range: 1958-1962

1шт.

7

469294R91

DRAWBAR, center tube, for 6 ft., 1962 and since, 1 used for units A, B, C, D, and E

1шт.

7

464938R11

DRAWBAR, center tube, for 6 ft. 9 in., Serial Range: 1958-1962

1шт.

7

469295R91

DRAWBAR, center tube, for 6 ft. 9 in., 1962 and since, 1 for units A, B, and C

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 C-Z hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 used for unit B; 2 for units C, D, and E 1/2"-13, G5

1шт.

21816R1

HEADED PIN,1/2" x 1 3/8"

PIN, 1/2 x 1-3/8 C-Z std-hd, 2 for units A, B, C, D, and E

1шт.

PO14926

SPLIT PIN/SAFETY PIN

PIN, 1/2 x 3-1/2 dld-std-hd, 2 for units A, B, C, D, and E

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot., 2 for units A, B, C, D and E

1шт.

WASHER, 17/32 x 1 x 16 ga, 4 for units A,B,C,D, and E

1шт.

120384

WASHER,1/2"

LOCK, , 1 used for unit B, 2 for units C, D and E 1/2"

1шт.

8

464929R91

HINGE, insert outer, 1 for units B and D, 2 for units C and E

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-opening cot, 1 for units B and D, 2 for units C and E

1шт.

21942R1

HEADED PIN,1/2" x 3 3/4"

PIN, 1/2 x 3-3/4 C-Z std-hd, 1 for units B and D, 2 for units and E

1шт.

9

464932R91

HINGE, insert inner, 1 for units B and D, 2 for units C and E

1шт.

10

459844R91

HOOK

ASSY, section, (used per section)

2шт.

11

463468R1

CLAMP

draw, (used per section)

4шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 x 1 C-Z hex-hd mach, (used per section)

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 C-Z hex-hd mach, (used per section)

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , used per section 7/16"

4шт.
