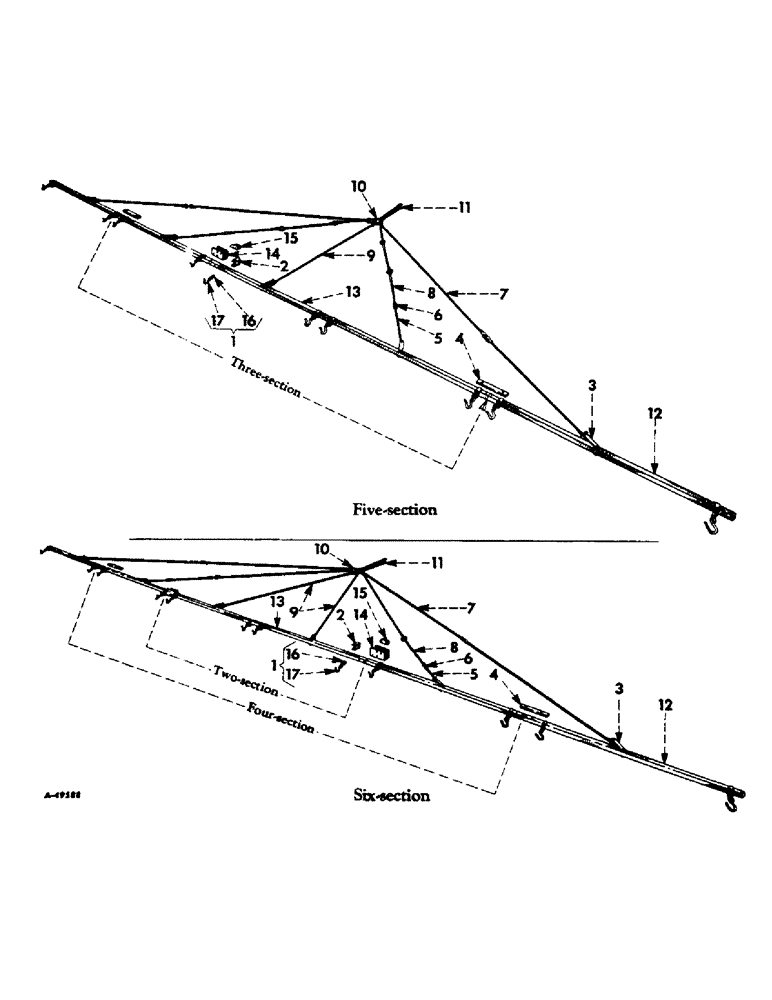

Запчасти Case IH 7 (A-02) - RECTANGULAR DRAWBARS, 1958 TO 1961

1

459844R91

HOOK

ASSY, section (used per section)

2шт.

2

459843R1

CLAMP, section (used per section)

2шт.

BOLT, 7/16-14 x 2-1/2 C-Z hex-hd mach (used for section)

2шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex (used per section)

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , used per section 7/16"

2шт.

3

459850R1

STRAP, drawbale (used per section)

2шт.

PIN, 3/16 x 1-1/4 cotter (used per section)

2шт.

517843R1

COTTER PIN

PIN, 3/16 x 2-7/8 quick-attachable cotter (used per section)

2шт.

Q541

PIN, 1/2 x 2-3/16 dld std-hd (used per section)

2шт.

4

459841R1

INSERT, drawbar, for 5 ft. 3 in. and 6 ft., 2 used for units D & E

1шт.

5

459848R1

BAIL ASSEMBLY, 21-3/4 long w/LH-thd, for 5 ft. 3 in., 6 ft. . 9 in., 2 used for units B, C, D & E

1шт.

5

459849R1

BAIL ASSEMBLY, 10-1/2 long w/LH thd, for 5 ft. 3. in., 2 used for units C and E

1шт.

6

M383D

TURNBUCKLE

2 used for units B, C, D, and E

1шт.

7

459815T91

BAIL ASSEMBLY, for 6 ft., 2 used for unit E

1шт.

7

459823R91

BAIL ASSEMBLY, for 6 ft., 2 used for unit D

1шт.

7

459830R91

BAIL ASSEMBLY, for 5 ft. 3 in., 2 used for unit D

1шт.

7

459838R91

BAIL ASSEMBLY, for 5 ft. 3 in., 2 used for unit E

1шт.

8

459812R91

BAIL ASSEMBLY, one end threaded, for 5 ft. 3 in. and 6 ft., 2 used for units C and E

1шт.

8

459820R91

BAIL ASSEMBLY, one end threaded, 6 ft., 2 used for units B and D

1шт.

8

459827R91

BAIL ASSEMBLY, one end threaded, for 5 ft. 3 in., 2 used for units B and D

1шт.

8

459833R91

BAIL ASSEMBLY, one end threaded, for 6 ft. 9 in., 2 used for unit B

1шт.

8

459839R91

BAIL ASSEMBLY, one end threaded, for 6 ft. 9 in., 2 used for unit C

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 6 used for unit B; 4 for units C and D and 2 for unit E 1/2"-13, G5

1шт.

9

459817R91

BAIL ASSEMBLY CENTER, for 6 ft. and 6 ft. 9 in., 1 used for units A, C and D

1шт.

9

459818R91

BAIL ASSEMBLY, center for 5 ft. 3 in. 6 ft. 9 in., 1 used for units B and D

1шт.

9

459825R91

BAIL ASSEMBLY CENTER, for 5 ft. 3 in.

1шт.

10

459842R1

CLEVIS, bail 2 used for units B,C,D, and E

1шт.

PIN, 3/16 x 1-1/4 cotter, 2 used for units B, C, D and E

1шт.

Y2208

PIN, 1/2 x 2-5/16 dld std-hd, 2 used for units B, C, D, and E

1шт.

11

459845R1

CLEVIS, hitch (used per harrow)

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 2-7/8 quick attachable cotter, (used per clevis)

1шт.

724775R1

HEADED PIN,3/4" x 3 1/4"

PIN, 3/4 x 3-1/4 dld std-hd, (used per clevis)

1шт.

12

459806R11

TUBE ASSY, extension for 5 ft. 3 in., 1 used for unit B, 2 for unit C, 3 for unit D and 4 for unit E

1шт.

12

459808R11

TUBE ASSY EXTENSION, for 6 ft., 2 used for unit D and E

1шт.

BOLT W/NUT, 7/16 x 1-3/4 hex-hd mach, 2 used for units D and E

1шт.

BOLT W/NUT, 7/16 x 2 hex-hd mach, 2 for units B and D, 4 for unit C and 6 for unit E

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 4 for units C and D; 8 for unit E 7/16"

1шт.

12

459810R11

TUBE ASSY, extension for 6 ft. 9 in., 1 used for unit B, 2 for unit C

1шт.

BOLT W/NUT, 7/16 x 2 hex-hd mach, 2 for unit B, 4 for unit C

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

13

459807R11

TUBE ASSY, center for 5 ft. 3 in., 1 used for units A, B, C, D and E

1шт.

13

459809R11

TUBE ASSY, center for 6 ft., 1 used for units A, B, C, D, and E

1шт.

13

459811R11

TUBE ASSY CENTER, for 6 ft. 9 in., 1 used for units, A,B, and C

1шт.

14

459847R1

PLATE, drawbar hinge for 5 ft. 3 in. and 6 ft. 9 in., 1 used for units B and D, 2 used for units C and E

1шт.

BOLT W/NUT, 7/16 x 3 hex-hd mach, 2 used for units B and D, 4 used for units C and E

1шт.

PIN, 3/16 x 1-1/4 cotter, 1 used for units B and D, 2 used for units C and E

1шт.

517843R1

COTTER PIN

PIN, 3/16 x 2-7/8 quick-attachable cotter, 1 used for units B and D, 2 used for units C and E

1шт.

Q1230

PIN, 7/16 x 2-3/4 dld std-hd, 1 used for units B and D, 2 used for units C and E

1шт.

496496R1

HEADED PIN,5/8" x 2 3/4"

PIN, 5/8 x 2-3/4 dld std-hd, 1 used for units B and D, 2 for units C and E

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 2 used for units B and D; 4 for units C and E 7/16"

1шт.

15

459846R1

HINGE, drawbar 1 used for units B and D, 2 for units C and E

1шт.

16

NOT SERVICED SEPARATELY, order 459844R91

1шт.

17

NOT SERVICED SEPARATELY, order 459844R91

1шт.
