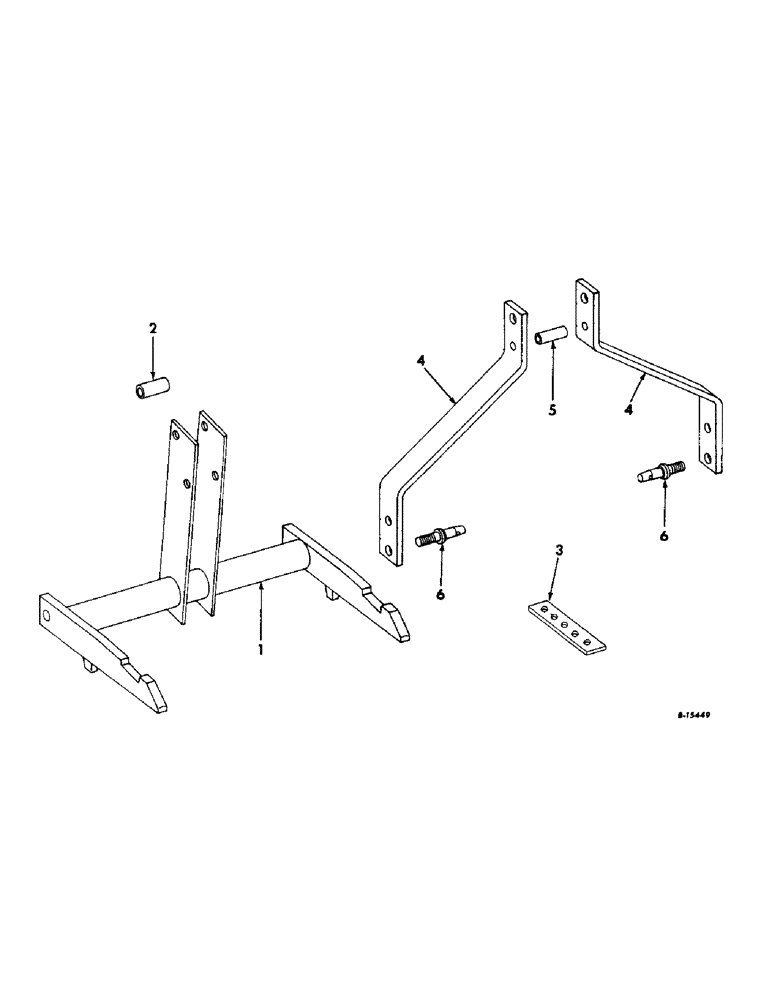

Запчасти Case IH 7 (A-15) - HITCHES, 1965 AND SINCE, PRODUCT GRAPHICS

1

480824R92

HITCH ASSY, two point fast

1шт.

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

7/8-9 x 2-3/4 hex-hd cap

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

2

480828R1

SPACER, upright bar, for two point fast hitch

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

3

(Not used in this application)

1шт.

4

480830R1

BRACE, mast, category I three-point hitch

1шт.

17527R1

BOLT, 7/8-9 x 2 hex-hd mach

2шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

5

462425R1

SPACER

mast, for category I three-point hitch

1шт.

6

468869T1

STUD, lower link, for category I three-point hitch

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

426767

NUT,7/8"-14, G5

7/8-14 C-Z hex

2шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing & pin adapter, for use w/ catetory I implements when mounting on category II three point hitch, consists of

1шт.

380581R1

BUSHING

upper link category # 1 short

1шт.

380582R1

BUSHING

upper link category # 1 long

1шт.

380583R1

BUSHING

lower link category # 1 short

2шт.

380584R1

BUSHING

lower link category # 1 long

2шт.

380580R91

PIN

ASSY, upper link implement

1шт.

11484R

BUSHING

SPACER, lower link long bushing

2шт.

1001412R2

DECAL

PRODUCT GRAPHIC, IH

1шт.

2754030R1

PRODUCT GRAPHIC

model designation

1шт.

2751264R1

PRODUCT GRAPHIC

International

1шт.

2751852R1

PRODUCT GRAPHIC, International

1шт.

2751858R1

PRODUCT GRAPHIC, hydraulic cylinder

1шт.
