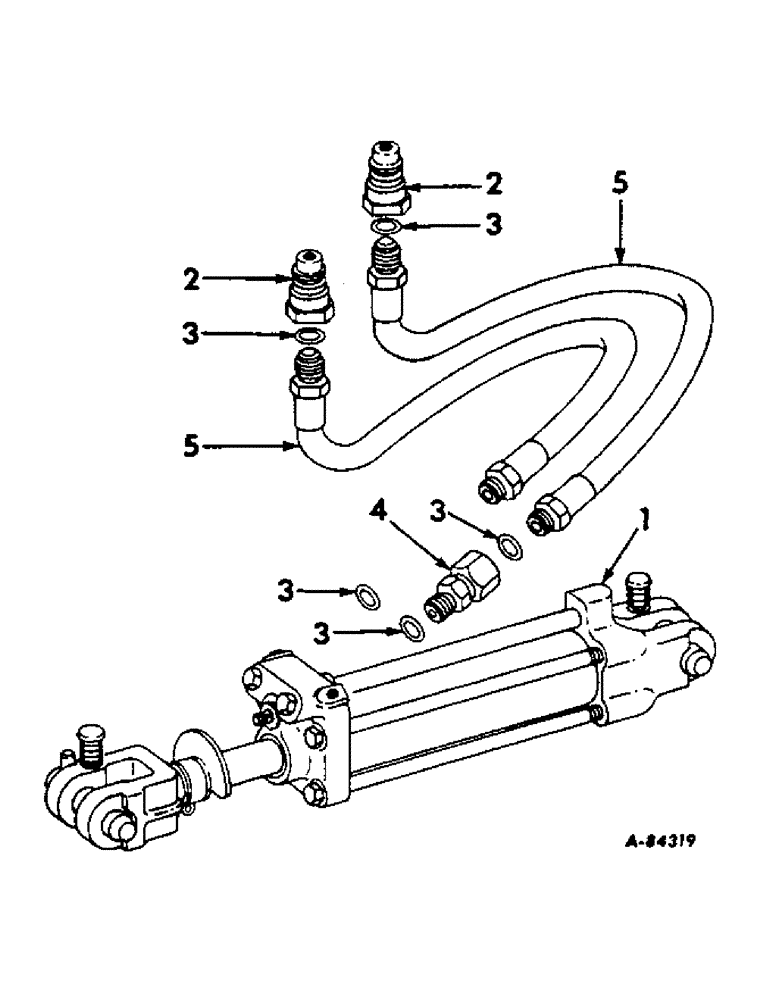

Запчасти Case IH 7 (A-14) - HYDRAULIC CYLINDER AND CONNECTIONS, 1966 AND SINCE

1

371291R97

CYLINDER

ASSY, 2-1/2 x 8 in., refer to cyl-1 for components

1шт.

2

395149R1

QUICK MALE COUPLING

COUPLER, self sealing

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

5шт.

4

526251R91

UNION

cylinder hose restricting adapter

1шт.

5

653323R91

HOSE ASSY, hydraulic, 1/2 x 45 inches long

2шт.
