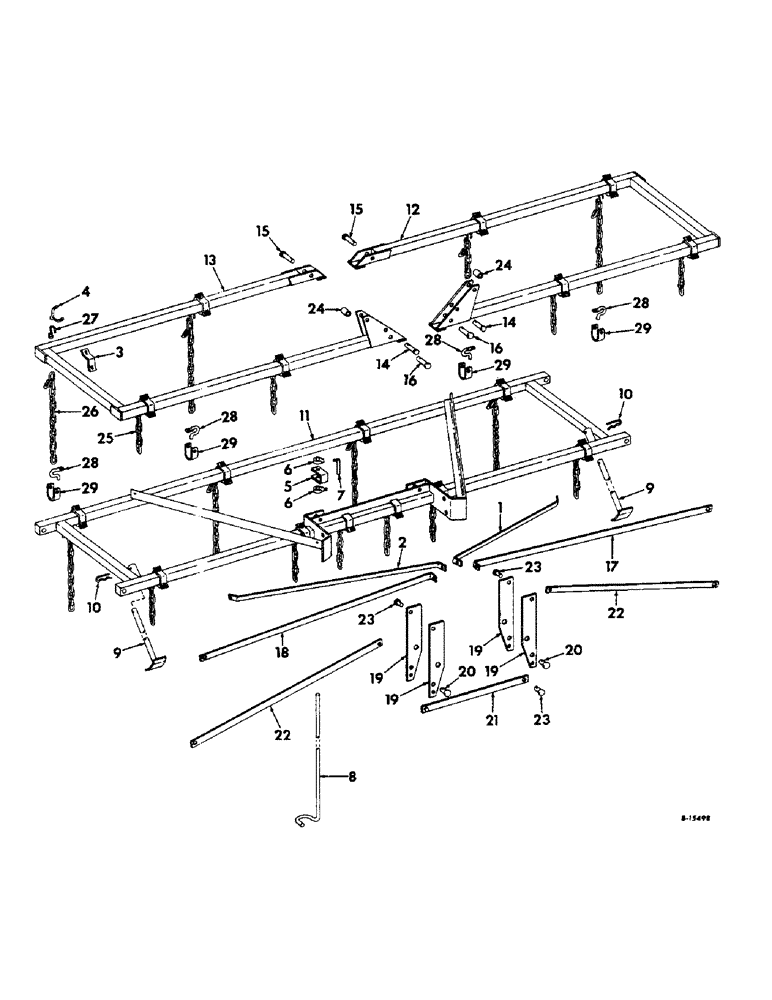

Запчасти Case IH 7 (A-13) - DRAWBAR, 4 SECTION FOLDING, 1965 AND SINCE

1

480839R1

BAR, hitch LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

480840R1

BAR, hitch RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

3

480841R1

CLAMP, V

16шт.

4

480842R1

BOLT, v clamp

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

32шт.

120384

WASHER,1/2"

LOCK, 1/2"

32шт.

5

480843R1

CLEVIS, drawbar stand clamp

1шт.

6

2638X

COLLAR

ASSY, rear stand lower

1шт.

21689R1

SCREW

1/2-13 x 3/4 C-Z sq-hd cup-pt set

1шт.

7

481520R11

PIN ASSY, stand handle

1шт.

8

480845R1

STAND, rear

1шт.

9

480846R91

STAND ASSY, front

2шт.

10

520037R11

PIN ASSY, quick attachable cot, in stand

2шт.

11

480848R91

FRAME ASSY, main

1шт.

12

480854R91

FRAME ASSY, LH extension

1шт.

13

480855R91

FRAME ASSY, RH extension

1шт.

14

21814R1

HEADED PIN,1/2" x 3"

PIN, 1/2 x 3 C-Z std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

15

21675R1

PIN

3/4 x 3-1/4 zn-pltd std-hd

2шт.

16

21834R1

PIN, 3/4 x 11/16 C-Z std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

467750R1

WASHER

25/32 x 1-1/2 11 ga C-Z

4шт.

17

480860R1

BRACE, front frame LH

1шт.

18

480861R1

BRACE, front frame RH

1шт.

19

480862R1

LEVER, cylinder

4шт.

20

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 zn-pltd std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

21

480863R91

BAR ASSY, equalizer

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22

480866R1

BAR, lift link

2шт.

23

21380R1

PIN, 1/2 x 1-5/16 C-Z std-hd

3шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

24

39274

HANDLE

SPACER, lift link bar

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2-13 x 3-1/4 C-Z hex-hd mach

2шт.

457390R1

LOCK NUT,1/2"-13, GA

NUT, 1/2-13 cd-pltd hex lock

2шт.

25

480867R1

CHAIN, pull

8шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

8шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

26

480868R1

CHAIN, lift

8шт.

27

480869R1

HOOK, lift chain S

4шт.

28

480823R1

BRACKET, lift chain

4шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 C-Z hex-hd cap

4шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 C-Z stover automatic hex lock

4шт.

29

480877R1

CLAMP, lift chain U

4шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 C-Z hex-hd cap

8шт.

274933

O-RING

NUT, 3/8-16 cd-pltd hex lock

8шт.
